Optimised for bench‑top material research tasks, this 30A 750V air‑cooled single‑pulse MAO power supply outputs accurate single‑pulse energy to form durable ceramic protective films on aluminium, magnesium and titanium alloy test samples inside laboratory environments.
30A 750V Air‑Cooled Single‑Pulse MAO Power Supply addresses high‑voltage pulse power demands for plasma electrolytic oxidation studies, where sharp pulse waveforms directly decide ceramic coating quality and test reproducibility. In fact, ordinary general‑purpose power units cannot generate the steep pulse edges required by MAO plasma reactions, and they tend to build up excess heat during hours‑long continuous test cycles. Since micro‑arc oxidation creates instant high‑voltage plasma discharge, effective air‑cooled thermal management remains essential to keep consistent operating temperature and prevent output shift across different test batches.

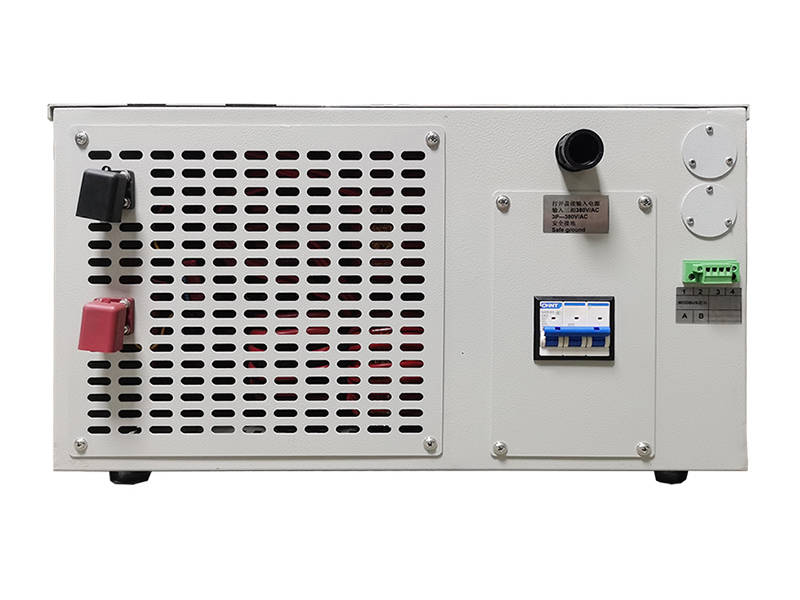

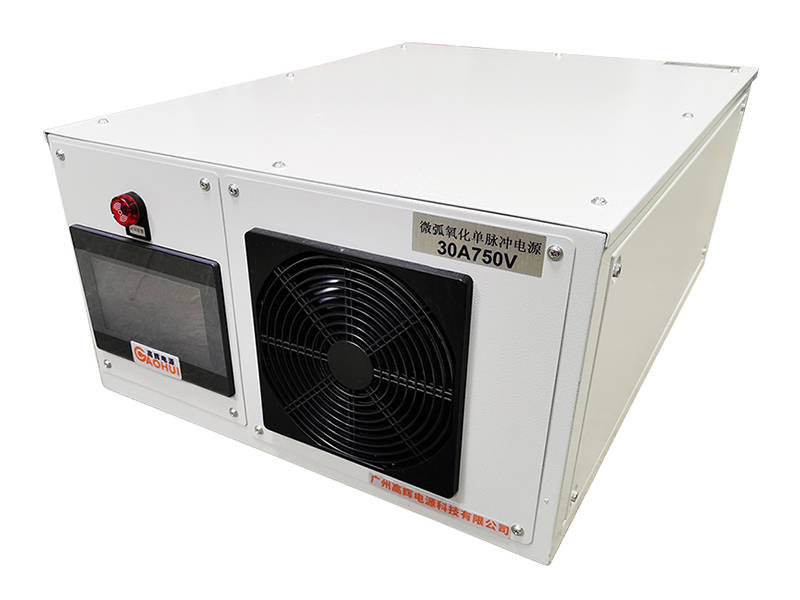

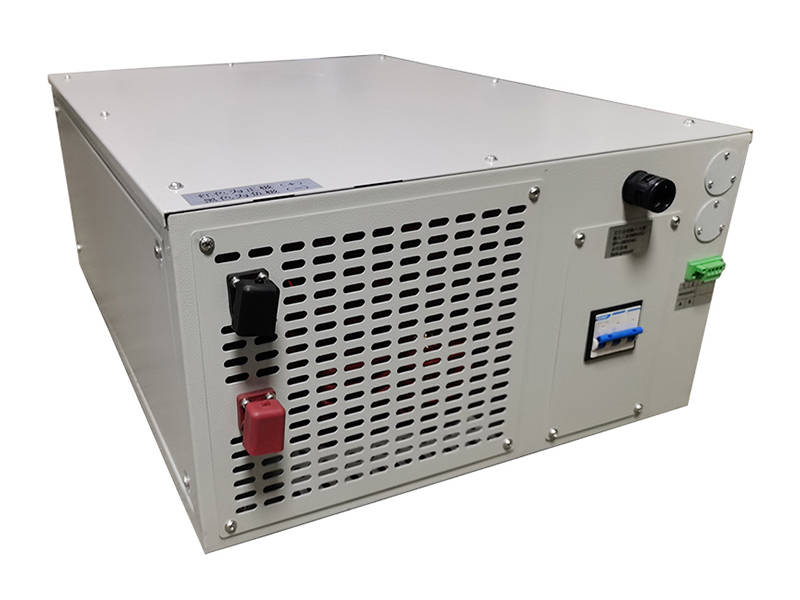

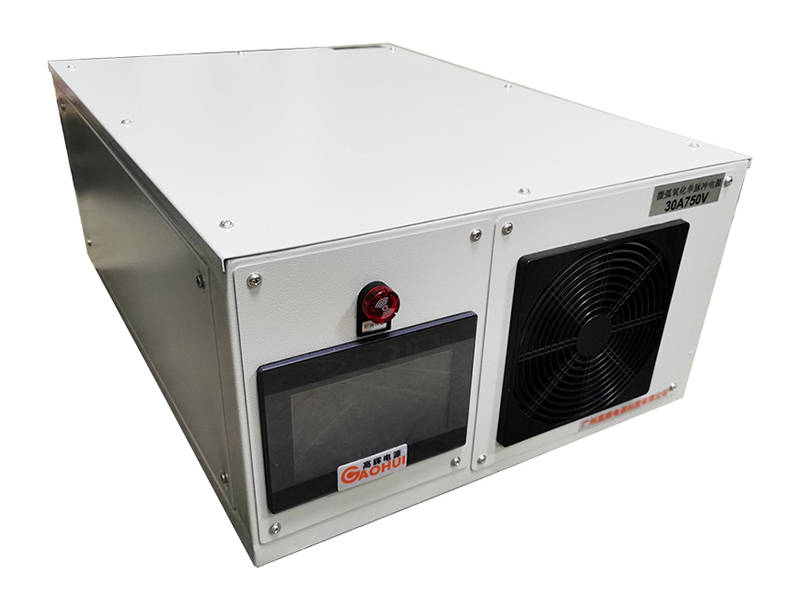

Rated for 30A 750V working output, this 30A 750V air‑cooled single‑pulse MAO power supply adopts compact air‑cooled thermal construction with no external water chiller needed, which greatly simplifies deployment on space‑limited lab workbenches. Operators adjust pulse frequency, duty cycle, current and voltage parameters via local control panel to match different alloy substrates and target ceramic coating performance targets. After wiring connection and parameter setup, research teams can run repeated micro‑arc oxidation trials for small‑size alloy specimens. Meanwhile, multi‑level electronic protection reacts quickly against over‑voltage, over‑current and short‑circuit risks, and this protective mechanism protects test samples and internal circuit assemblies throughout long‑time experimental operations.
This 30A 750V air‑cooled single‑pulse MAO power supply adopts high‑speed IGBT switching components, and overall unit efficiency stays above 86% under regular experimental loading. Unlike water‑cooled MAO power supplies that need matched circulating water facilities, its air‑cooled mechanical layout cuts auxiliary hardware investment, so research groups can carry out oxidation tests without complicated site reconstruction.
Fast closed‑loop regulation stabilises single‑pulse output status as ceramic oxide layers grow on alloy surfaces. As a result, treated test pieces show smaller coating thickness deviation and fewer surface defects, and researchers can obtain highly comparable experimental data from separate test groups. Moreover, onboard memory stores multiple groups of process parameter presets, and users can recall verified parameter profiles instantly instead of manual setup for every new test batch.
Optimised for micro‑arc oxidation laboratory‑grade research scenarios, internal control circuits keep pulse‑output fluctuation within a narrow tolerance across full adjustment ranges. Accordingly, it provides stable driving energy to produce uniform, wear‑resistant ceramic coatings for diverse small‑format alloy test workpieces.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Output Rating | Rated Current | 30A |
| Output Rating | Rated Voltage | 750V |
| Cooling Method | Cooling Type | Air‑Cooled |
| Pulse Feature | Output Mode | Single‑Pulse |
| Control Mode | Operation Mode | Constant Current, Constant Voltage |
| Pulse Setting | Frequency & Duty Cycle | Adjustable |
| Communication Interface | Data Port | RS485 |
| Protection Items | Safety Protection | Over‑voltage, Over‑current, Over‑temperature, Short‑circuit Protection |
| Applicable Samples | Suitable Materials | Aluminum, Magnesium, Titanium Alloys |
The product comes with a one‑year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp‑up function for current or voltage settings. For time‑sensitive applications, you can use the timed operation mode. Moreover, the multi‑segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute‑level timing function. If you need customization, please contact us for further details.
This 30A 750V air‑cooled single‑pulse MAO power supply applies widely in university material‑science laboratories, surface‑treatment R&D centres and advanced‑material development projects. For example, it completes micro‑arc oxidation treatment for small alloy test coupons to analyse ceramic coating hardness, anti‑corrosion and wear‑resistant performance.
Besides specimen processing, it acts as specialised pulse power hardware for exploring plasma electrolytic oxidation technical workflows. It carries out multi‑group parameter screening and process feasibility verification, supplying valid experimental records for academic papers and new‑process specification formulation.
We specialise in manufacturing lab‑grade plasma electrolytic oxidation power hardware for demanding alloy surface‑modification research scenarios. Most importantly, every finished unit passes full‑load pulse waveform calibration and ageing testing before shipment, ensuring stable 30A 750V performance through repeated long‑term experimental cycles.
Furthermore, we offer customisable adjustments for output limits and control functions to satisfy diverse laboratory operational requirements. Supported by remote technical guidance and sufficient spare‑part availability, we deliver trustworthy power‑supply solutions for your material‑surface‑treatment research projects.
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
