Output: 48V / 500A peak pulse
Technology: IGBT pulse with polarity reversal
Cooling: Air cooled
Control: Digital programmable
Features: Automatic forward/reverse, adjustable frequency, duty cycle
Applications: Pulse plating, hard chrome, precious metals, wafer bumping

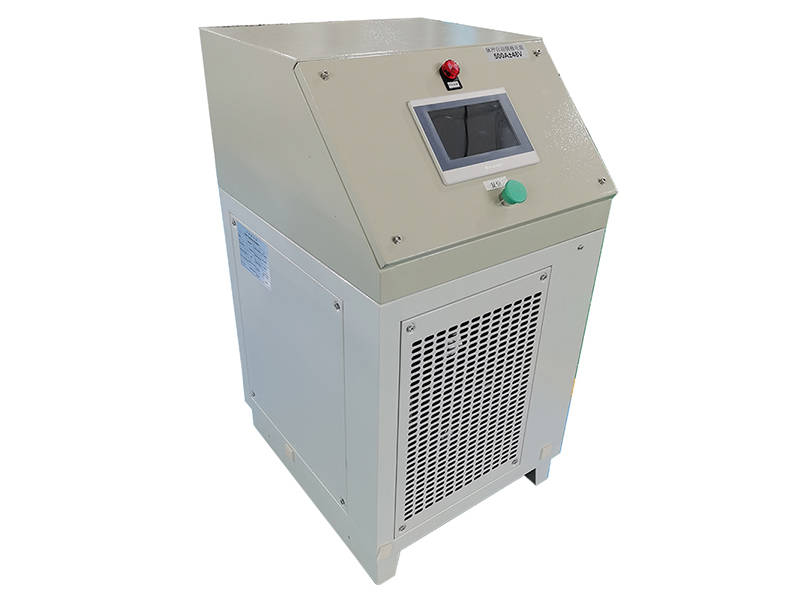

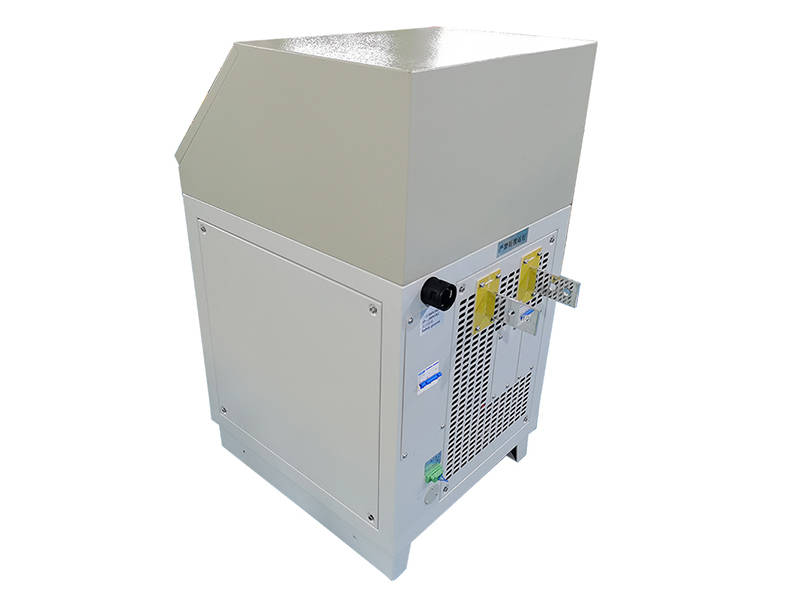

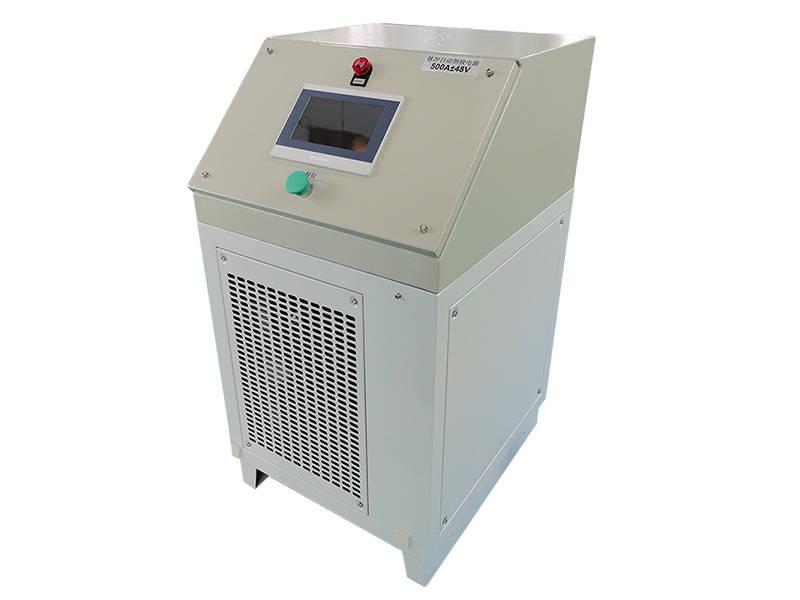

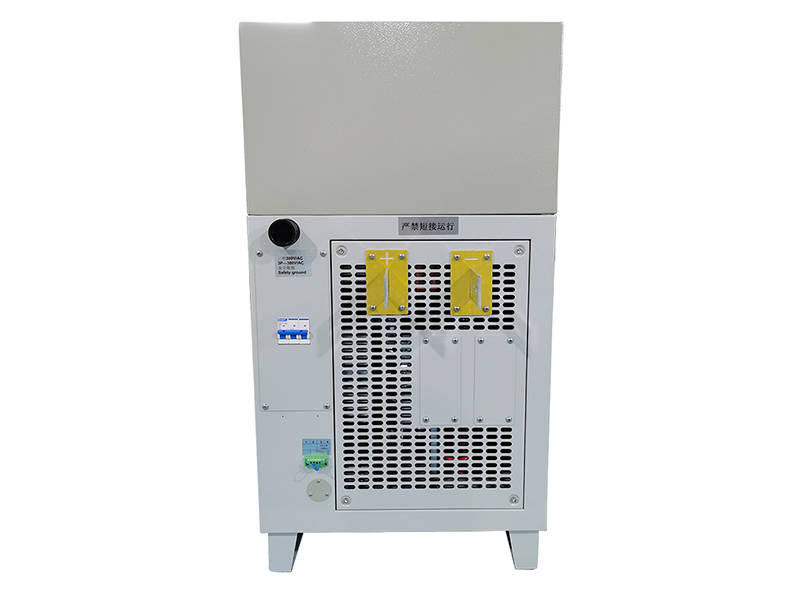

This 500A 48V air cooled pulse rectifier features automatic polarity reversal for advanced electroplating and surface treatment applications. It delivers programmable pulse DC with precise control over pulse parameters and reversal cycles. Consequently, this rectifier enables superior deposit properties including improved grain structure, reduced stress, and enhanced adhesion.
This pulse rectifier utilizes sophisticated IGBT switching technology with programmable polarity reversal capability. Therefore, it generates precise pulse waveforms with independently controlled forward and reverse pulses. Moreover, the automatic reversal function allows optimization for specific plating chemistries and substrate materials. Additionally, digital controls enable storage and recall of multiple pulse programs.
This pulse rectifier with automatic polarity reversal is specifically optimized for applications requiring superior deposit quality. The ability to program reverse pulses allows periodic anodic dissolution for leveling and grain refinement. Consequently, it produces deposits with improved density, reduced porosity, and enhanced corrosion resistance.
Hard chrome platers use this rectifier for crack-free deposits with improved wear resistance. Precious metal platers employ it for fine-grained gold and silver deposits with reduced porosity. Copper plating operations utilize it for improved throwing power and deposit uniformity. Nickel platers apply it for stress-free deposits with enhanced brightness. Semiconductor manufacturers use it for wafer bumping and via filling.
Reverse pulses dissolve high points and nodules for smoother deposits. Periodic anodic pulses improve grain refinement and reduce internal stress. Polarity reversal enhances throwing power in complex geometries. These capabilities result in superior surface quality and reduced material consumption.
Precise pulse parameter control enables optimization for specific electrolyte chemistries. Adjustable frequency allows tailoring of mass transport and double layer effects. Programmable duty cycle controls deposit thickness distribution. Automatic reversal timing ensures consistent results batch after batch.
The forced air system eliminates water connections, simplifying installation. Therefore, setup time is minimized and water leak risks are eliminated. Maintenance is limited to periodic filter cleaning. The system remains suitable for laboratory and production environments.
