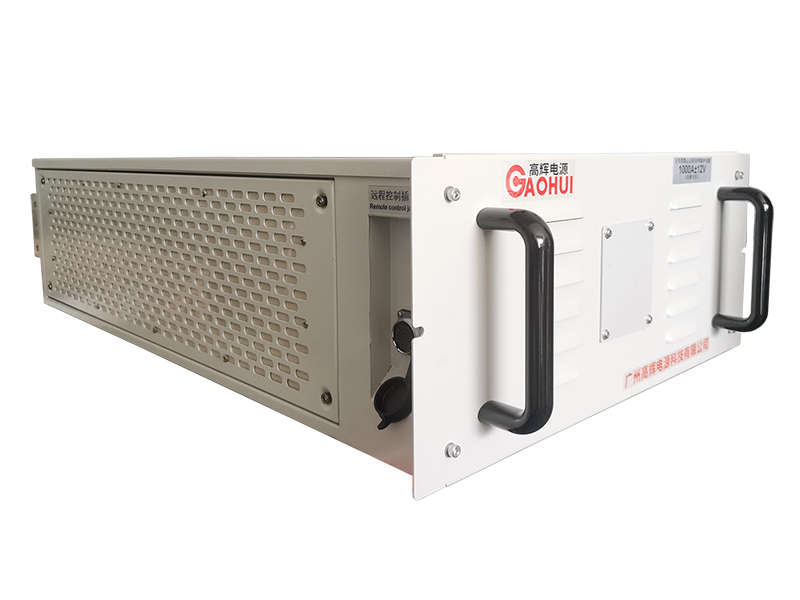

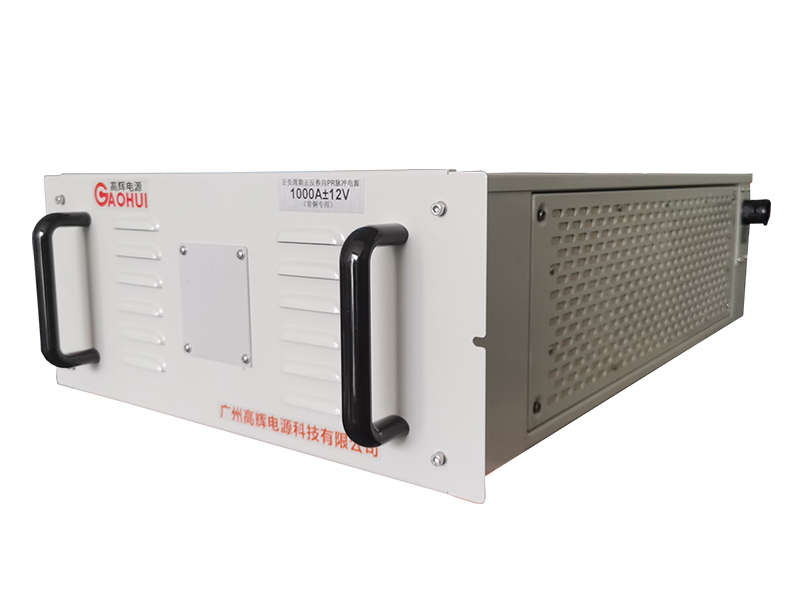

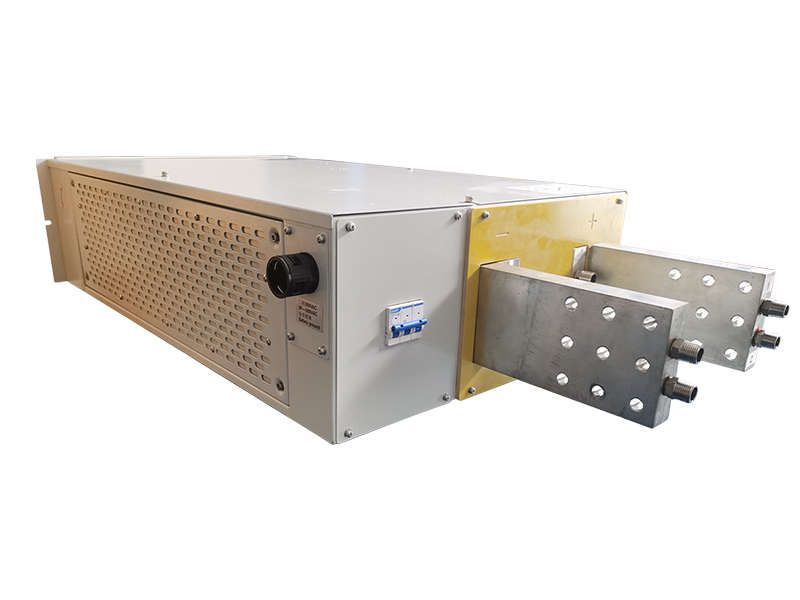

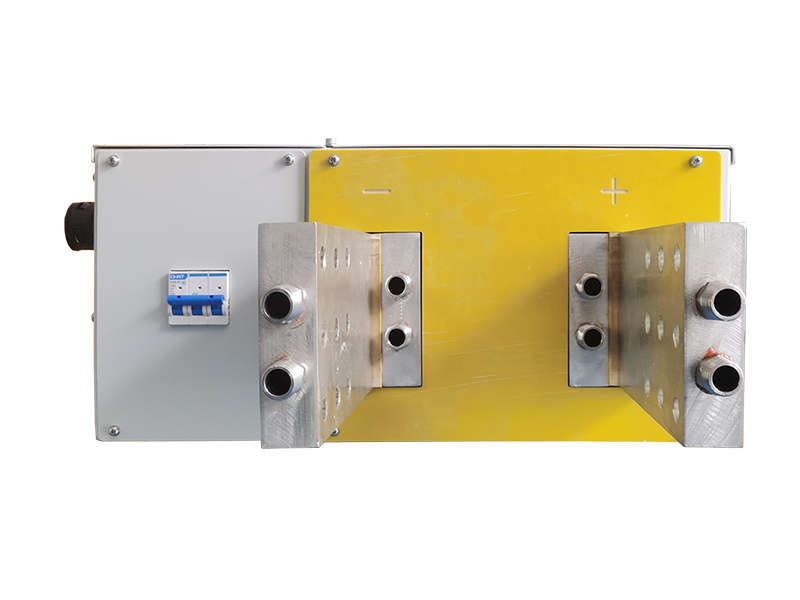

PR Pulse Rectifier Introduction

This PR pulse rectifier delivers advanced pulse reverse technology for bronze plating applications. It alternates between positive and negative current cycles automatically. Consequently, superior bronze coating quality is consistently achieved.

Technical Specifications

Parameter Specification
Input Power 380VAC Three-Phase
DC Output ±12V DC 0-1000A (PR Mode)
Cycle Reversal 1-60 cycles/minute
Positive/Negative Ratio Adjustable 1:1 to 10:1
Peak Current 1000A Programmable

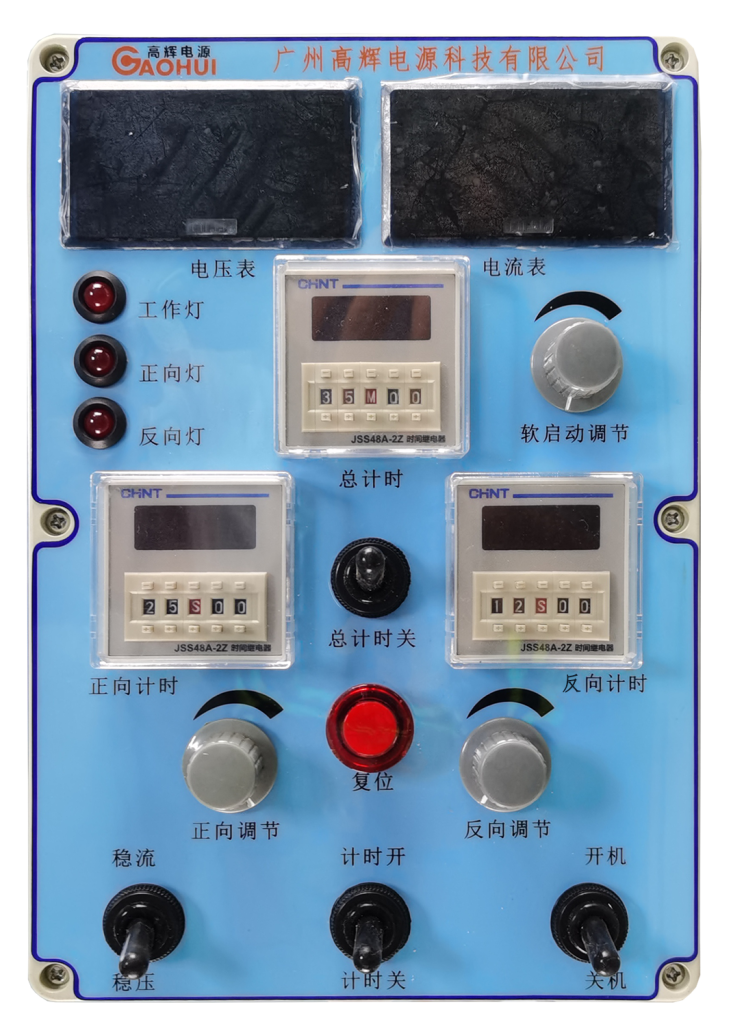

Control Interface Industrial HMI with PR Programming
Special Features PR Cycle Optimization Throwing Power Enhancement Deposit Stress Reduction
Cooling System Water Cooling
Protections OCP OVP PR Cycle Fault Detection Thermal Protection

System Advantages

Advanced PR Technology
This PR pulse rectifier applies pulse reverse methodology. Therefore, deposition quality improves significantly. Moreover, coating adhesion strengthens substantially.

Superior Throwing Power
PR cycles enhance current distribution. Specifically, complex geometries receive uniform coverage. Thus, part quality becomes more consistent.

Stress Reduction
Alternating cycles minimize internal stresses. Furthermore, deposit cracking is prevented. Consequently, coating durability increases.

Process Optimization
Programmable PR parameters allow fine-tuning. Additionally, different bronze alloys are accommodated. Hence, application versatility expands.

Application Areas

This PR pulse rectifier serves specialized bronze plating industries.

In Architectural Hardware
The system plates door handles, railings, and fittings. Importantly, consistent antique finishes are produced. Additionally, weather resistance improves.

For Marine Components
It processes boat fittings and marine hardware. Similarly, corrosion resistance enhances. Consequently, saltwater durability increases.

In Decorative Applications
The rectifier finishes lighting fixtures and furniture. Ultimately, aesthetic bronze surfaces are created. Therefore, product appeal elevates.

For Industrial Bronze Plating
It coats bearings and wear surfaces. Specifically, PR technology improves lubrication retention. Thus, mechanical performance optimizes.

Operational Benefits

Coating quality improves through PR technology. Moreover, rejection rates decrease noticeably. Consequently, operational efficiency increases.

Material utilization optimizes with enhanced throwing power. Furthermore, bronze consumption reduces. Therefore, material costs decrease.

Process consistency ensures reliable results. Additionally, automated PR cycles eliminate manual errors. Hence, product quality stabilizes.

Equipment longevity extends with water cooling. Specifically, thermal management protects components. Thus, maintenance intervals prolong.

In summary, this PR pulse rectifier provides advanced bronze plating solutions. For this reason, it serves manufacturers where coating quality, process control, and operational efficiency are essential requirements for competitive production.
