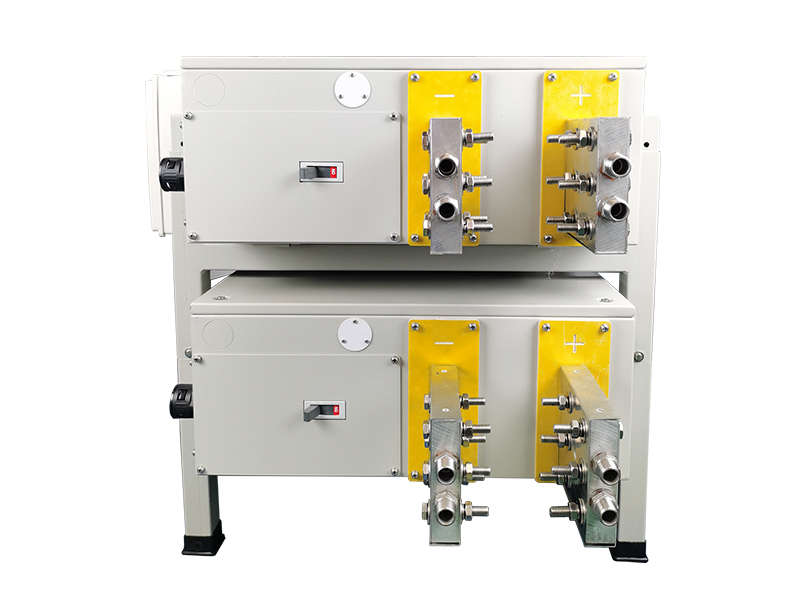

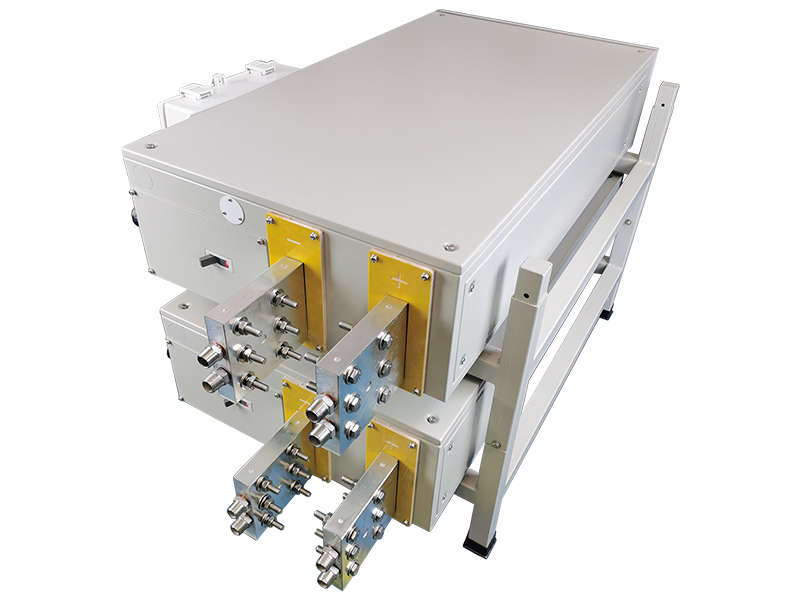

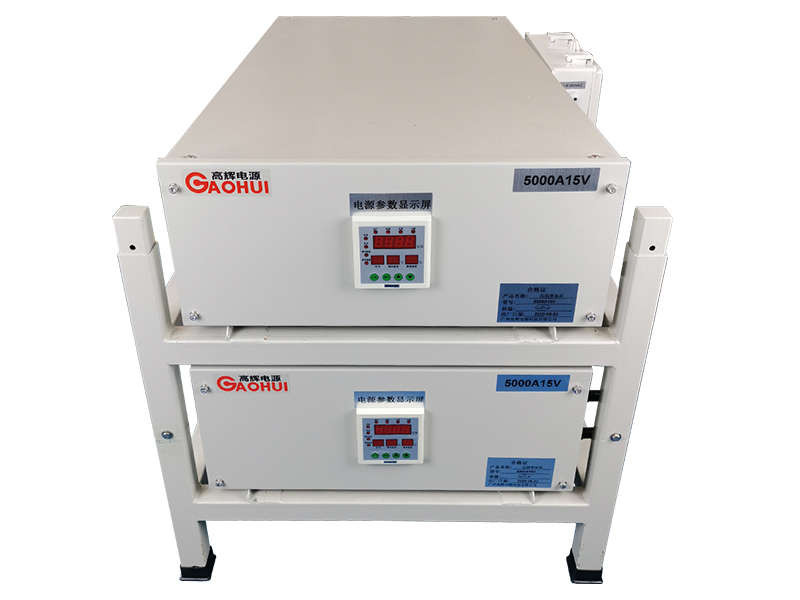

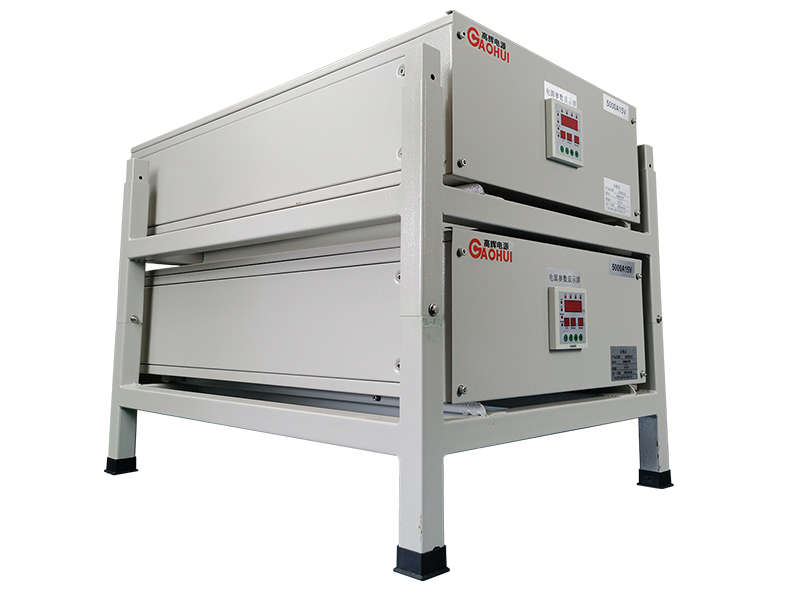

This N+1 parallel hard chrome plating power supply achieves 10000A total DC output at 15V, adopting two‑unit redundant parallel water‑cooled design to sustain continuous plating with enhanced operational reliability.
N+1 Parallel Hard Chrome Plating Power Supply addresses critical reliability challenges for high‑amperage hard‑chrome lines where unplanned shutdowns create costly production losses. Many heavy‑component plating workshops run oversized rolls, hydraulic barrels and mining castings that demand non‑stop power throughout multi‑day plating cycles. Conventional single‑unit high‑current rectifiers force full‑line halt once internal faults emerge. For that reason, this 10000A 15V water‑cooled hard chrome rectifier built around 2‑units N+1 parallel architecture separates power loads across individual cabinets. Operators complete busbar connections and water pipeline installation, then set target total output via central control panel before launching mass plating batches.
This N+1 parallel hard chrome plating power supply excels for refurbishment of large industrial rollers, heavy‑duty hydraulic assemblies and rebuilt mining machinery parts. Its dual‑cabinet water‑cooled layout disperses heat across two independent cooling loops. Even if one module triggers an alarm, the remaining unit keeps partial production running instead of a complete stop. Furthermore every cabinet carries independent water‑flow interlock to block damage when coolant flow falls below safe thresholds.
Each cabinet inside this N+1 parallel hard chrome plating power supply leverages proven IGBT high‑frequency conversion and holds efficiency above 92 percent. Since total current splits over two separate power assemblies, individual component thermal stress drops greatly compared against a single monolithic high‑current cabinet. As a result, hardware service life extends significantly under continuous heavy shifts.
Smart load‑sharing logic dynamically distributes output between units. When one cabinet goes offline for maintenance, the system automatically readjusts working parameters so production does not come to an abrupt end. This capability brings huge practical value for plants that cannot afford to pause long‑run hard‑chrome processes. Besides, modular cabinet‑based structure simplifies on‑site troubleshooting; technicians can isolate one unit without disconnecting the whole plating system.
Our engineering group fine‑tunes parallel synchronization algorithms and independent water‑cooling paths specifically for this 10000A combined output scenario. Therefore current drift stays minimal during long runtime. In turn this redundant parallel setup lowers production risk for large‑scale metal‑finishing facilities.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Input Parameters | AC Input Power Supply | Three‑phase AC 380V, ±10% tolerance, 50‑60Hz |
| DC Output Parameters | Total Output Voltage Range | 0‑15V adjustable |
| DC Output Parameters | Total Output Current Range | 0‑10000A combined (2 units N+1 parallel) |
| DC Output Parameters | Total Rated Output Power | 150kW |
| DC Output Parameters | Voltage Regulation Accuracy | ≤1% |
| DC Output Parameters | Current Regulation Accuracy | ≤1% |
| DC Output Parameters | Ripple Factor | ≤1% |
| Control and Automation Functions | Operating Modes | Constant Current, Constant Voltage, N+1 redundant parallel load‑sharing mode |
| Control and Automation Functions | Auxiliary Hardware | Central digital control panel, ampere‑hour counter, independent fault recorder for each cabinet |
| Control and Automation Functions | Programming Features | Total output setting, load‑share monitoring, individual cabinet alarm logging |
| Physical and Communication Parameters | Cooling Method | Water‑cooled, each cabinet fitted with independent water‑flow interlock protection |
| Physical and Communication Parameters | Protection Class | IP20 for indoor industrial plating workshop |
| Physical and Communication Parameters | Communication Interface | RS485 Modbus RTU, data accessible per cabinet |
| Physical and Communication Parameters | Operating Efficiency | Above 92% |
We can provide:
This N+1 parallel hard chrome plating power supply carries one‑year factory warranty and delivers over 10‑year service lifespan under compliant operating conditions. N+1 redundant parallel function plus independent water‑flow sensing for every cabinet belong to standard delivery scope. Furthermore modular power assembly supports separate cabinet servicing without shutting down the whole system. Multi‑layer alarm protection responds fast toward all abnormal runtime states. Simply share your plating‑bath dimension and production continuity requirements, and we can deliver targeted configuration guidance.
This N+1 parallel hard chrome plating power supply suits ultra‑high‑current hard‑chrome plating that demands maximum uptime, large‑size component refurbishment and non‑stop heavy‑duty industrial surface finishing. Above all else, it fits plating workshops processing oversized press rolls, large‑bore mining hydraulic cylinders and heavy rebuilt mechanical assemblies where process interruption causes substantial economic loss.
Likewise many large‑scale finishing plants select this two‑unit redundant layout instead of one single high‑current rectifier. In fact its fault‑tolerant parallel architecture greatly cuts risks of unexpected full‑production stops.
It also applies to process validation for long‑duration hard‑chrome trials. Thanks to adjustable total output and real‑time load‑share data, technicians observe system performance under sustained heavy loads conveniently. What is more, Modbus‑compatible multi‑unit data output allows operators to archive complete equipment logs for quality traceability.
We develop high‑reliability parallel power‑supply hardware for demanding metal‑finishing production lines, and we specialise in water‑cooled N+1 redundant systems built for continuous hard‑chrome workflows. Most importantly our engineering crew tunes parallel synchronization logic, cooling capacity and safety thresholds to match your real‑world on‑site production environment.
On top of that every individual cabinet completes full‑load continuous aging test and ripple‑value inspection following ISO quality standards before shipment; hence you receive hardware validated for long‑run 10000A combined output under redundant parallel operation.
Our full‑lifecycle support includes hands‑on operational training, remote multi‑unit fault troubleshooting and spare‑parts provision. If your production capacity expands later, additional cabinets can join the existing parallel group. In short, rely on us for robust redundant power solutions supporting your non‑stop heavy‑duty hard‑chrome plating tasks.
