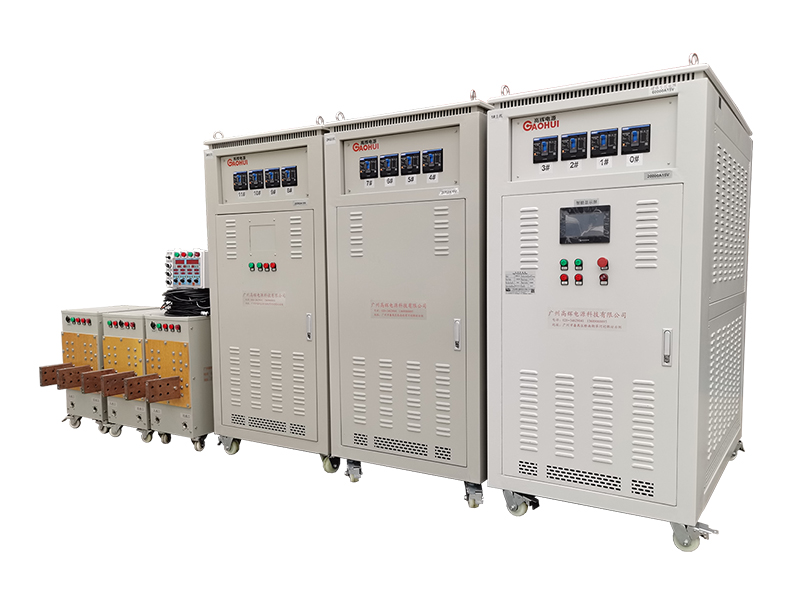

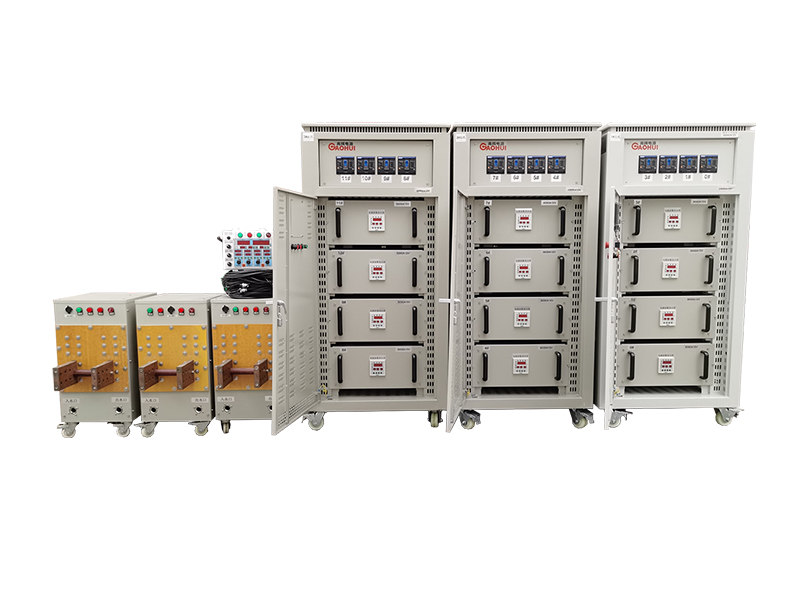

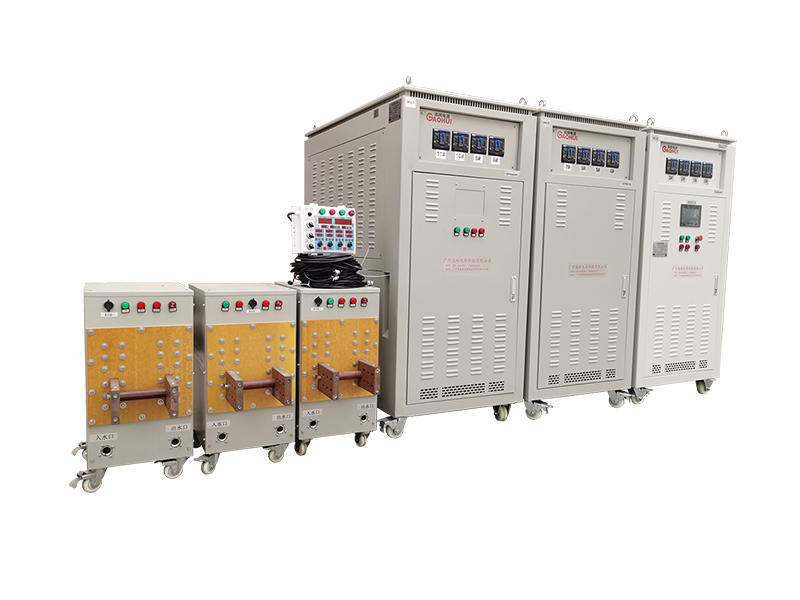

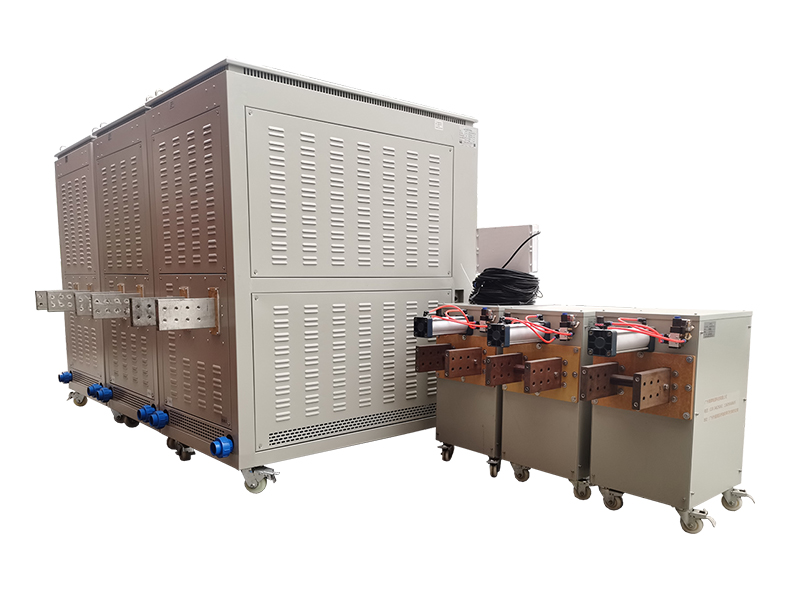

This ultra‑high‑current multi‑cabinet power supply delivers 900kW DC output, utilizing three synchronized N+1 parallel racks and automatic polarity reversal to sustain non‑stop heavy‑duty chrome finishing.
Gaohui Power Supply develops the 60000A 15V Multi‑Cabinet Hard Chrome Plating Power Supply for large‑scale metal finishing plants handling oversized workpieces. Individual cabinet hardware cannot reach such extreme output current, so the system relies on three independent N+1 configured racks working in precise parallel sync. Many heavy‑chrome production sites run round‑the‑clock shifts, and unexpected hardware faults can trigger costly production halts. For that reason, each rack retains standalone redundancy, while coordinated automatic commutation maintains uniform etching‑plating cycles across the whole power cluster.
This multi‑cabinet hard chrome plating power supply mainly handles surface finishing for heavy mill rollers, large‑dimension hydraulic cylinders and robust mining mechanical assemblies. Moreover, synchronized polarity reversal ensures every connected plating bath follows identical process timings. Meanwhile, intelligent load balancing suppresses circulating currents between racks, safeguarding internal power modules and stabilizing overall operational performance.
This multi‑cabinet hard chrome plating power supply implements high‑capacity IGBT module arrays and achieves operational efficiency beyond 95 percent. Every rack bears only a portion of the total load through dynamic load balancing, so no single cabinet endures excessive stress even under full 60000A output; accordingly, the setup delivers dependable performance for non‑stop industrial finishing schedules. What is more, assigning independent N+1 redundancy for each rack brings far stronger fault tolerance compared against one single oversized power unit.
Its coordinated commutation logic triggers polarity shifts simultaneously across all parallel racks. As a result, all connected plating baths receive matching cycle parameters, and operators avoid inconsistent chrome layer thickness caused by unsynchronized timing. Besides, closed‑loop water cooling fitted with distributed flow sensors and leak detectors lowers overheating and liquid‑intrusion hazards within high‑current finishing workshops.
Our engineering group refines heavy‑duty busbar matching and parallel synchronization algorithms. Consequently, circulating current remains minimal throughout multi‑rack collaborative work, cutting extra energy waste on large copper conductors. In turn, this clustered power architecture helps huge metal‑finishing facilities reduce unplanned production losses while simplifying routine equipment maintenance tasks.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Input Parameters | AC Input Power Supply | Three‑phase AC 380V, ±10% tolerance, 50‑60Hz |
| DC Output Parameters | Output Voltage Range | Zero to 15V adjustable |
| DC Output Parameters | Aggregated Output Current | Zero to 60000A (3 sets N+1 racks parallel operation) |
| DC Output Parameters | Rated Total Output Power | 900kW |
| DC Output Parameters | Voltage Regulation Accuracy | Within one percent |
| DC Output Parameters | Inter‑Rack Load‑Balancing Deviation | Within one percent |
| DC Output Parameters | Ripple Factor | Within one percent |
| Control and Automation Functions | Operation Modes | Constant Current, Constant Voltage, Synchronized Automatic Commutation |
| Control and Automation Functions | Auxiliary Control Devices | Central touch‑screen console, ampere‑hour counter, process cycle timer |
| Control and Automation Functions | Programming Functions | Group‑wide forward/reverse timing setup, multi‑segment process parameter programming |
| Physical and Communication Parameters | Cooling Mode | Closed‑loop water‑cooled for every individual rack |
| Physical and Communication Parameters | Protection Grade | IP20, suitable for indoor metal‑finishing workshop |
| Physical and Communication Parameters | Communication Protocol | RS485 Modbus RTU for cluster group‑control |
| Physical and Communication Parameters | Working Efficiency | Above ninety‑five percent |
| Physical and Communication Parameters | Redundancy Mode | Each rack features independent N+1 modular redundancy, three‑rack synchronized parallel |
We can provide:
This multi‑rack power cluster comes with one‑year warranty and can serve over 10 years under proper maintenance. To begin with, each rack ships pre‑configured with N+1 modular redundancy plus closed‑loop water‑cooled assembly. Furthermore, synchronized automatic commutation and multi‑rack load‑balancing logic are embedded without requiring external auxiliary hardware. In addition, comprehensive protection covers over‑current, over‑temperature, water‑flow loss and liquid‑leak detection on every rack. Therefore, share your workshop layout, busbar planning and hard‑chrome process requirements for tailored configuration proposals.
This multi‑cabinet hard chrome plating power supply fits ultra‑large‑scale heavy‑duty metal‑finishing production lines. First and foremost, it works as centralized power hardware for factories running multiple large plating baths for mill rollers, mining equipment components and extra‑large hydraulic cylinder parts.
In addition, heavy‑industry manufacturers pick this clustered parallel setup whenever single‑rack hardware cannot satisfy total current demand. As a matter of fact, independent redundancy per rack lessens production risks even when partial components require service.
It also supports process development labs that run high‑current hard‑chrome formulation trials. Thanks to distributed N+1 design, maintenance work can proceed on one rack while remaining hardware keeps production running. What is more, Modbus‑based cluster control integrates seamlessly with existing factory automation platforms for unified production‑line supervision.
Gaohui Power Supply develops custom‑built Multi‑Cabinet Hard Chrome Plating Power Supply with triple N+1 parallel and coordinated automatic commutation for large metal‑finishing manufacturers, and ultra‑high‑current clustered power‑supply design represents our core technical strength. Above all, our engineering team adjusts rack quantity, water‑circuit routing and commutation timing logic according to your bath scale and real‑world plating‑process demands.
Apart from that, every complete multi‑rack power cluster passes 100% full‑load aging testing, water‑leak inspection and synchronous commutation validation following ISO9001 quality standards before delivery; as a result, you obtain hardware proven to operate steadily inside harsh electroplating‑shop environments.
Our full‑lifecycle support includes remote commissioning guidance, on‑site operational training and spare‑parts provision. Whenever you expand production throughput, you can add modular power assemblies instead of replacing the whole cluster. In short, partner with Gaohui Power Supply for robust clustered power‑supply solutions supporting your large‑volume hard‑chrome finishing workflows.
