Output: 6V / 5000A DC
Technology: IGBT synchronous
Efficiency: >94%
Ripple: <3%
Cooling: Water cooled
Control: Digital CV/CC
Applications: Electrowinning, electrorefining, metal extraction

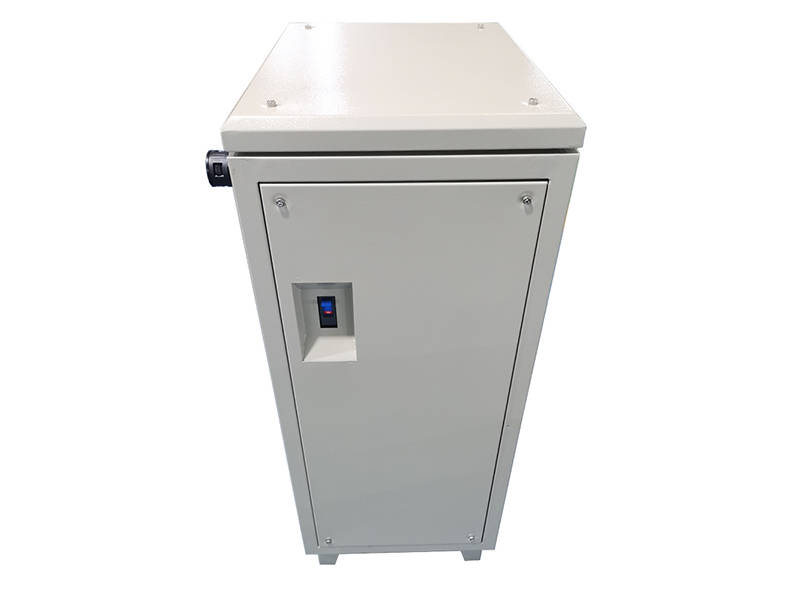

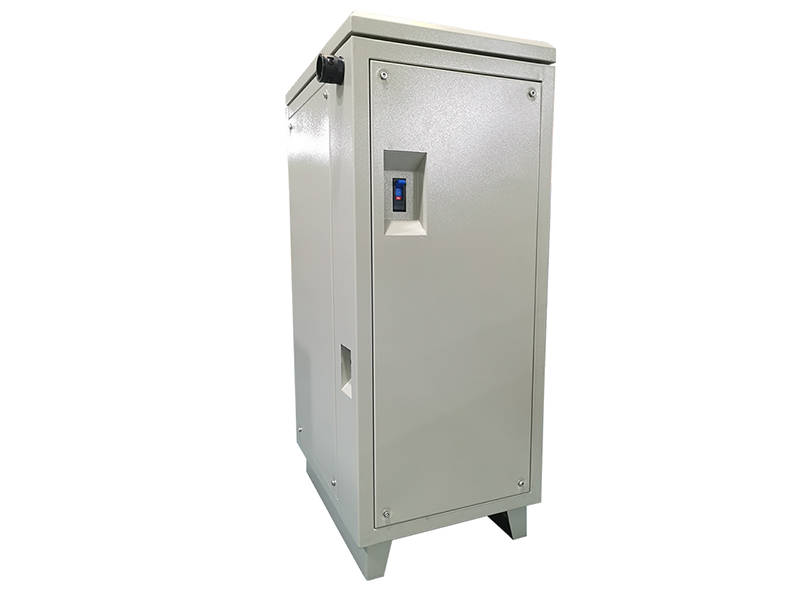

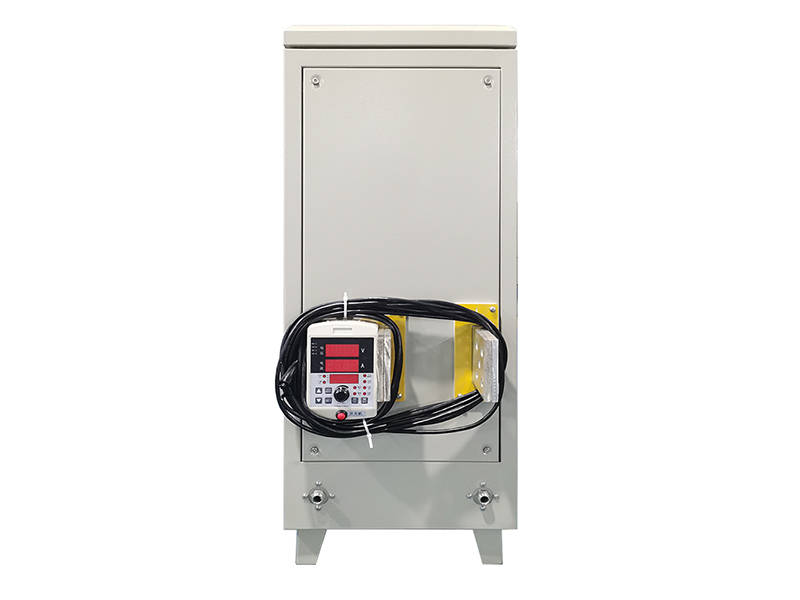

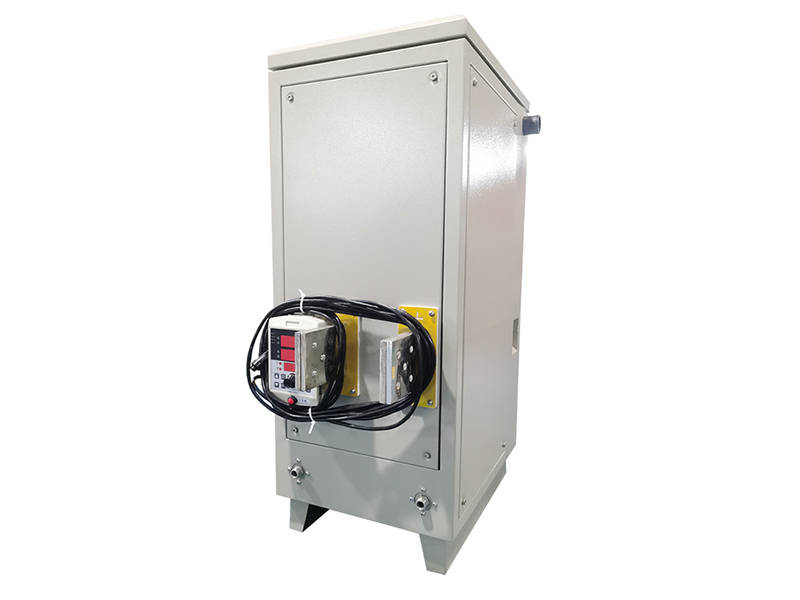

This 5000A 6V water cooled synchronous rectifier provides massive DC power for industrial electrolytic operations. It is specifically engineered for applications requiring high current at low voltage. Consequently, this power supply ensures optimal performance for electrowinning, electrorefining, and metal extraction processes.
The unit utilizes IGBT-based high frequency switching with synchronous rectification optimized for low voltage output. Therefore, it achieves over 94% efficiency even at maximum current load, significantly reducing energy consumption. Moreover, the fully sealed water cooling system protects internal components from corrosive environments and harsh industrial conditions.
This rectifier is specifically optimized for applications needing massive current at 6V output. The advanced transformer design minimizes losses at low voltage operation. Consequently, it delivers exceptional efficiency where conventional rectifiers perform poorly. The water cooling system effectively manages heat generation at these high current levels.
Copper refineries use this rectifier for electrowinning operations. Zinc production facilities employ it for electrolytic extraction. Nickel and cobalt processing plants utilize it for metal recovery. Precious metal refineries apply it for gold and silver refining. Chlor-alkali industries use it for brine electrolysis.
Precise current density control ensures consistent metal quality and higher purity. Low ripple output improves current efficiency and prevents passivation. Fast response time ensures stable performance during load changes. These features reduce energy consumption and lower operational costs.
The high efficiency design reduces electricity consumption significantly compared to conventional rectifiers. At 6V output, efficiency gains are particularly important for overall plant economics. Consequently, it lowers operational costs for energy-intensive electrolytic processes.
Industrial grade components ensure dependable performance year after year. The water cooling system eliminates dust-related failures common with air cooled units. This rectifier is engineered for 24/7 continuous operation in demanding production environments.
