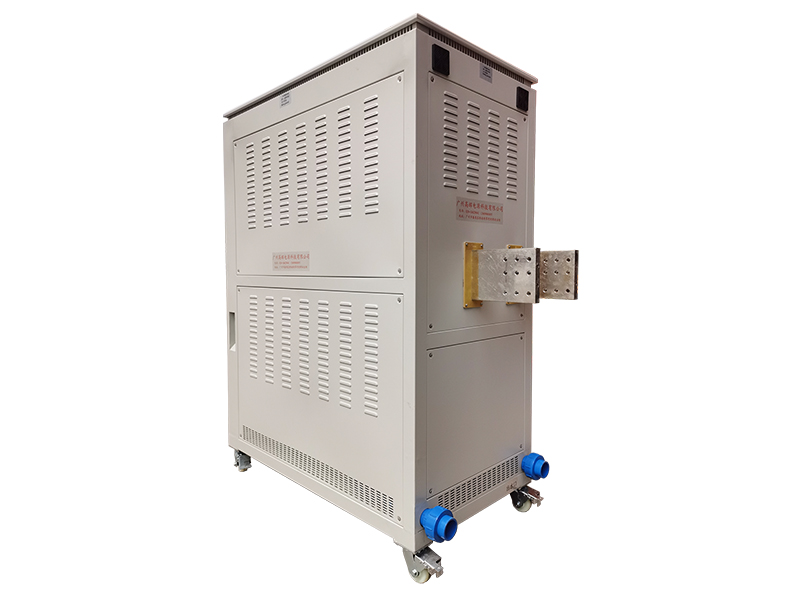

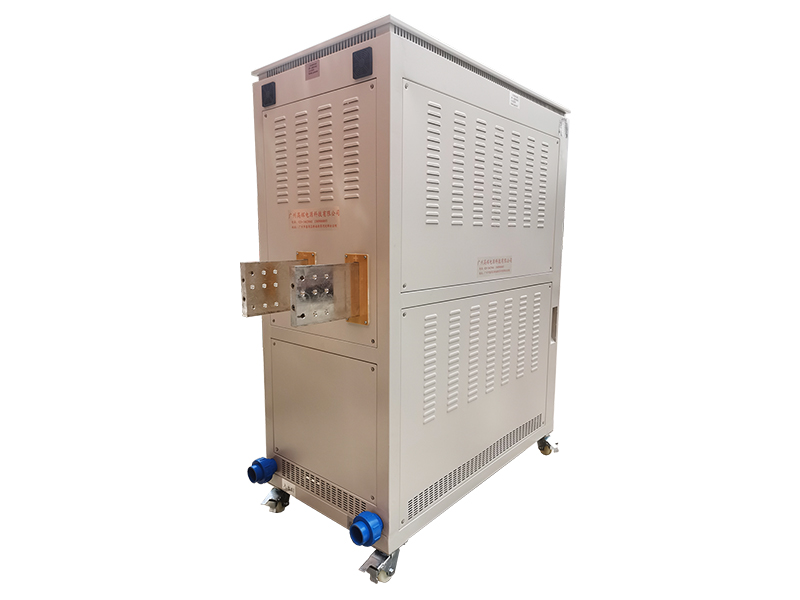

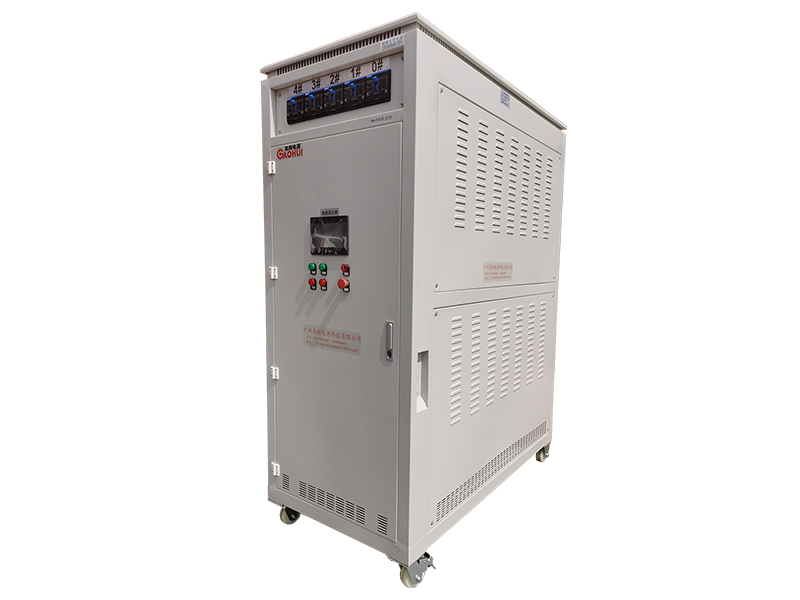

The Hard Chrome Power Supply (25000A 15V) is custom core equipment for industrial hard chrome plating. First, it delivers stable, precise DC power for diverse plating scenarios. Additionally, it solves common issues: unstable current, poor plating uniformity, and low efficiency in large-scale operations. Moreover, we focus on custom solutions, tailoring each unit to match specific customer needs.
1. N+1 parallel configuration (5 units) ensures stable operation even if one unit fails
2. Built-in automatic reversing switch, adapting to complex hard chrome plating processes
3. Customizable parameters to match diverse industrial plating requirements
4. High current stability (≤±1%) guarantees uniform and high-quality chrome plating
5. High efficiency (≥92%) reduces energy consumption and operational costs

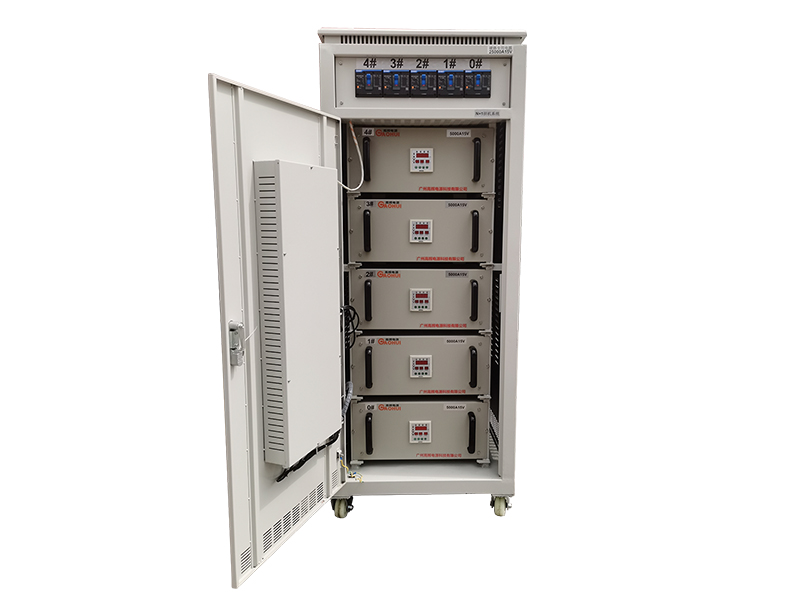

In terms of stability, the Hard Chrome Power Supply uses 5 units in N+1 parallel configuration. For instance, if one unit malfunctions, the other four keep working, preventing production interruptions. This setup, therefore, boosts equipment reliability—critical for continuous industrial use.
Meanwhile, the power supply’s integrated automatic reversing switch flexibly changes current direction per plating needs. As a result, it reduces hydrogen embrittlement and enhances the chrome layer’s density and hardness.
Regarding durability, we use high-quality industrial components with a rational structure and effective sealed isolation. Consequently, this design resists corrosive gases and humidity in plating workshops, extending equipment life.
Furthermore, the power supply offers high current and voltage stability (≤±1% and ≤1% respectively). Thus, it ensures uniform metal deposition and avoids plating defects like cracks and pinholes.
As a custom-focused product, we also adjust output current, voltage, and protection functions to fit each customer’s specific production scenario.
| Parameter | Specification |
|---|---|
| Output Current | 25000A |
| Output Voltage | 15V (adjustable according to custom requirements) |
| Configuration | 5 Units in N+1 Parallel |
| Reversing Switch | Automatic Reversing Switch |
| Current Stability | ≤±1% |
| Voltage Stability | ≤1% |
| Efficiency | ≥92% |
| Input Voltage | Three-phase 380V ±10%, 50Hz/60Hz |
| Cooling Method | Water Cooling |
| Protection Functions | Overcurrent, Overvoltage, Overheating, Short Circuit Protection |
Power（W） = Output Voltage（V） × Output Current（A）、
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
The Hard Chrome Power Supply suits various industries needing hard chrome plating. For example, in machinery manufacturing, it plates hydraulic rods, piston rods, and mold parts, boosting their wear and corrosion resistance.
In aerospace, similarly, it plates turbine blades, landing gear, and engine parts. It thereby ensures these components withstand extreme temperatures and mechanical stress.
Likewise, in automotive manufacturing, it plates crankshafts, gears, and other parts, extending their service life.
Besides, it fits large plating workshops, precision plating factories, and maintenance workshops for worn parts. Additionally, it adapts to continuous high-load or intermittent precision plating, matching all hard chrome plating equipment types.
We boast strong factory strength, with advanced production lines and professional R&D teams. Specifically, our team independently designs, produces, and tests every Hard Chrome Power Supply.
Additionally, our products hold ISO 9001 & CE certifications. We therefore ensure each power supply meets international quality and safety standards.
Notably, we focus on custom services. Our engineering team first communicates closely with customers to understand their needs, then designs personalized Hard Chrome Power Supply solutions that fit their plating processes and production capacity.
Furthermore, our complete supply chain and scheduling system ensures on-time delivery of custom power supplies, avoiding delays to customer production plans. Ultimately, we strive to provide high-quality, reliable custom power supplies and comprehensive services to boost customer efficiency and product quality.
Learn more about related products:340A 12V Air-Cooled Multi-Channel Commutating Chrome Plating Rectifier
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
