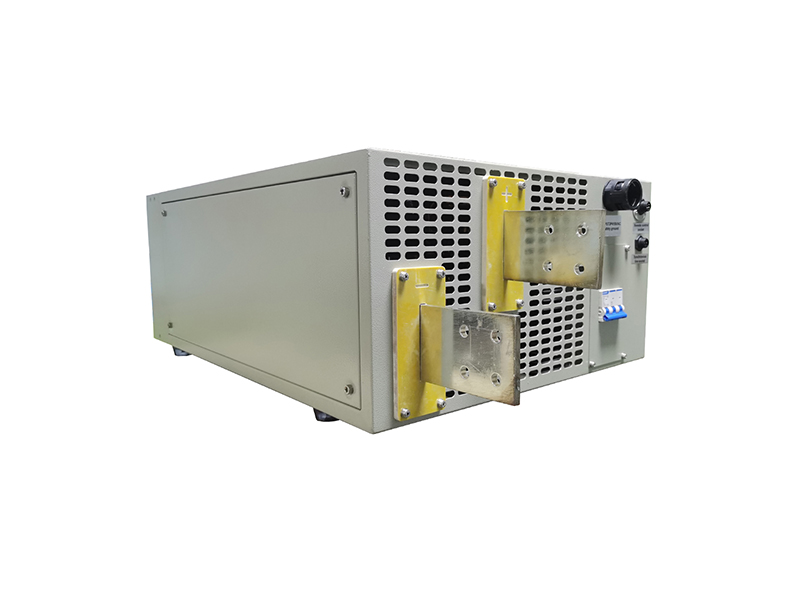

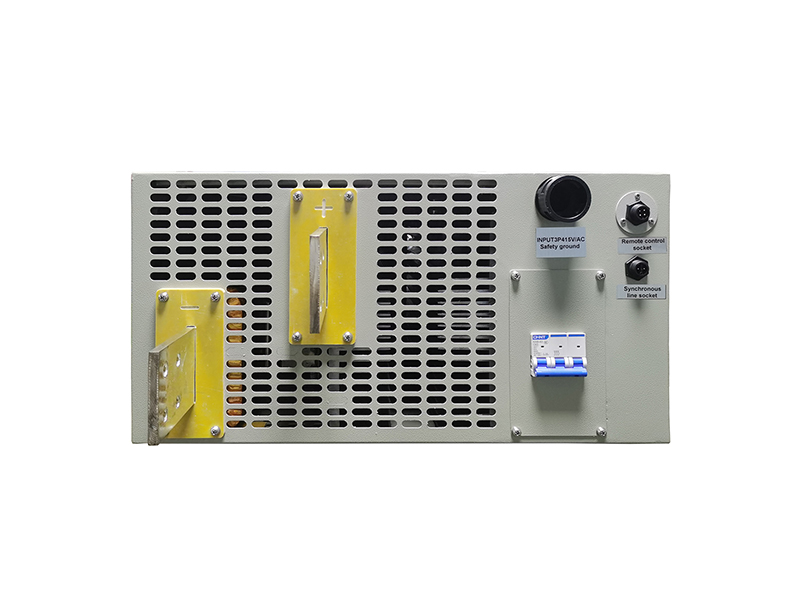

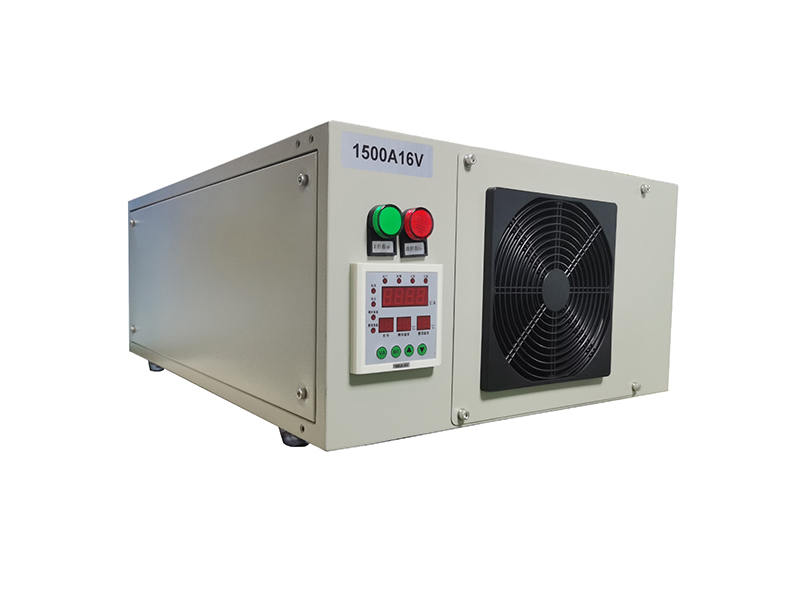

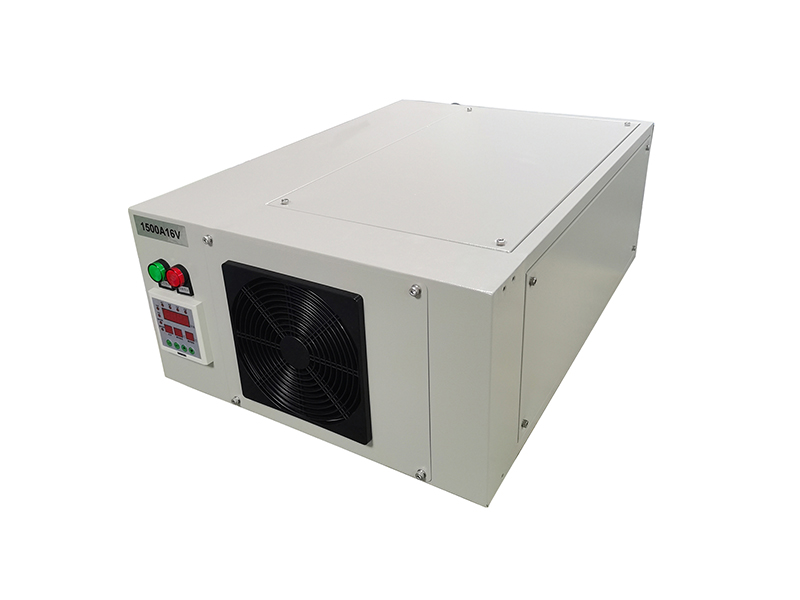

This 1500A 16V hard chrome plating rectifier delivers 24kW DC output for heavy‑duty hard chrome plating tanks and high‑current plating bus architectures in industrial finishing workshops.
Gaohui Power Supply engineers the 1500A 16V Hard Chrome Plating Rectifier for plating‑line integrators and heavy‑duty hard‑chrome finishing workshop designers. As hard‑chrome plating scales to large‑batch workpiece processing, low‑efficiency power equipment brings unstable plating thickness and high energy consumption; therefore, many workshop designers shift toward high‑current low‑voltage power supplies to guarantee uniform chrome deposition and reduce overall operating cost. Conventional rectifiers rarely combine 16V output with 1500A current in a single compact unit, and insufficient current stability will create uneven coating, burning and poor corrosion resistance on plated workpieces. For this reason, this rectifier integrates high‑precision current regulation, low‑ripple output and reliable short‑circuit protection into one industrial cabinet to deliver 24kW clean DC power. Beyond steady continuous operation, it also supports programmable voltage‑current profiling when process engineers need it for special chrome plating startup and shutdown sequences.
This hard chrome plating rectifier primarily powers large‑volume hard‑chrome plating tanks for shafts, hydraulic components, mould parts and heavy mechanical workpieces. Furthermore, its 0‑16V adjustable output allows operators to fine‑tune voltage according to bath temperature, chromic‑acid concentration and workpiece surface area, maximizing plating quality and current efficiency across varying process conditions. Meanwhile, built‑in over‑current and short‑circuit detection circuits continuously monitor the low‑voltage high‑current output, ensuring safe operation for both equipment and on‑site personnel.
This hard chrome plating rectifier uses advanced IGBT power conversion with soft‑switching topology and reaches system efficiency above ninety‑five percent. Under continuous full‑load 1500A‑16V operation, its optimized dual‑loop cooling structure removes heat from both power semiconductors and magnetic components; hence it maintains stable operating temperature even during long‑batch non‑stop plating cycles. What is more, precise high‑current output guarantees even current distribution across multiple workpieces inside the plating tank, which dramatically reduces uneven coating and lowers post‑processing rework demand.
Its precision current control loop holds output steady within one percent even under sudden load changes caused by workpiece hooking‑on or tank‑parameter fluctuation. Accordingly, workpieces inside the chrome bath receive consistent current density across every surface, preventing partial over‑plating or insufficient chrome deposition. Besides, multi‑segment programming lets operators define staged current ramp‑up and voltage‑limit profiles during plating startup, which protects workpieces from surface burning during the critical initial plating phase.
Our engineering team builds every unit with anti‑corrosion cabinet treatment and isolated sensing circuits. Consequently, the rectifier meets stringent industrial safety standards for plating‑process DC equipment, and it operates reliably even in humid, acid‑fume‑rich plating workshop environments. In turn, this process‑oriented design reduces compliance certification effort for system integrators and lowers long‑term equipment failure risk for plating workshop operators.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Input Parameters | AC Input Power Supply | Three‑phase AC 380V, ±10% tolerance, 50‑60Hz |
| DC Output Parameters | Output Voltage Range | Zero to 16V adjustable |
| DC Output Parameters | Output Current Range | Zero to 1500A adjustable |
| DC Output Parameters | Rated Output Power | 24kW |
| DC Output Parameters | Voltage Regulation Accuracy | Within one percent |
| DC Output Parameters | Current Regulation Accuracy | Within one percent |
| DC Output Parameters | Ripple Factor | Within one percent |
| Control and Automation Functions | Operation Modes | Constant Voltage, Constant Current |
| Control and Automation Functions | Auxiliary Control Devices | Digital ampere‑hour meter, programmable timer, multi‑stage ramp‑up |
| Control and Automation Functions | Programming Functions | Programmable voltage‑current ramp, multi‑segment parameter setting |
| Physical and Communication Parameters | Cooling Mode | Air‑cooled with dual‑loop forced airflow |
| Physical and Communication Parameters | Protection Grade | IP21 for indoor plating workshop application |
| Physical and Communication Parameters | Communication Protocol | RS485 Modbus RTU |
| Physical and Communication Parameters | Working Efficiency | Above ninety‑five percent |
We can provide:
This rectifier includes a one‑year warranty and delivers expected service life exceeding 10 years. To begin with, anti‑corrosion cabinet treatment and short‑circuit detection come as standard safety features. Furthermore, we integrate soft‑switching IGBT topology and isolated high‑current sensing into every unit. In addition, we pre‑install RS485 communication and comprehensive over‑voltage / over‑current protection in all models. Therefore, feel free to send us your hard chrome plating tank specifications for a tailored power supply solution.
This hard chrome plating rectifier fits heavy‑duty industrial hard‑chrome plating production with high‑current low‑voltage DC distribution architecture. First and foremost, it serves as the main power source for large hard‑chrome plating tanks for hydraulic shafts, moulds, rollers and heavy mechanical parts in mass‑production finishing workshops.
In addition, surface treatment factories, heavy machinery manufacturers and hydraulic component factories deploy this unit to power large on‑site hard‑chrome plating lines where stable high‑current output is critical for coating performance. As a matter of fact, its 1500A output allows workshop designers to run multi‑workpiece batches within one plating tank with uniform current density.
It also works well with shared plating‑bus architectures where multiple rectifier units feed a common bus that powers several independent plating tanks. Thanks to its tight current regulation, multiple units can operate in parallel on the same bus without circulating current issues. What's more, it functions as a high‑power benchmark supply for hard‑chrome plating process testing and new plating‑formula research.
Gaohui Power Supply develops custom‑optimized Hard Chrome Plating Rectifier for plating‑line integrators and heavy‑duty surface‑treatment workshop designers, and plating‑process power engineering expertise forms our core competitive advantage. Above all, our engineering team adjusts output voltage‑current range, configures anti‑corrosion cabinet levels and customizes control logic to match your specific chrome plating tank and workshop bus architecture.
Apart from that, we validate every unit against CE safety standards under ISO 9001 quality‑management protocols. Each finished 1500A 16V rectifier undergoes 100% continuous full‑load ageing testing plus current‑stability and short‑circuit verification before shipment; as a result, customers receive hardware proven for safe, reliable operation in demanding corrosive plating‑workshop environments.
Our full‑lifecycle service covers remote commissioning support, on‑site operation training and spare‑parts provision. Whenever you expand plating‑line capacity or upgrade chrome‑plating process technology, our team can reconfigure voltage and current parameters without full hardware replacement. In short, partner with Gaohui Power Supply for safe, efficient hard chrome plating rectifier solutions for your largest projects.
Learn more about related products：20000A 15V Water-cooled chrome plating rectifier
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
