Electrophoresis power supply, also referred to as electrophoresis rectifier, converts alternating current into stable direct current to enable uniform deposition of electrophoretic coatings on metal surfaces. Targeting industry pain points such as unstable output, insufficient precision and limited automation, we have developed IGBT-based electrophoresis rectifiers tailored for industrial electrophoretic coating production. These power solutions are widely applied to cathode/anode electrophoretic painting for automotive bodies, hardware, home appliances, aerospace components and architectural metal profiles, delivering consistent coating quality and reliable performance for continuous surface treatment lines.
The electrophoresis rectifier plays distinct yet critical roles across different scenarios, ensuring optimal performance in every use case:
To give you a clear overview of the product’s capabilities, we’ve compiled its key technical parameters in the table below; this will help you quickly assess whether it meets your specific needs.
| Parameter | Specification |
| Circuit Type | IGBT/PWM high-frequency switching with CV/CI control |
| Input Voltage | 3-phase AC380V±10% (we can customize 220V for laboratory use) |
| Output | 0-3000V/0-10000A, with ±1% accuracy and ≤1% ripple |
| Protection | Overheat, overcurrent, short circuit, and undervoltage protection |
| Certifications | ISO9001, CE |
| Service Life | ≥8 years, with MTBF ≥8000 hours |
| Model | Output Current (A) | Output Voltage (V) | Power (kW) | Input Current (A) | Input Voltage (V) | Weight (KG) | W*L*H (mm) |
| DY2100 | 2 | 100 | 0.2 | 1 | 220 | 16 | 420*420*150 |
| DY10100 | 10 | 100 | 1 | 5 | 220 | 18 | 420*420*150 |
| DY20100 | 20 | 100 | 2 | 10 | 220 | 18 | 420*420*150 |
| DY30100 | 30 | 100 | 3 | 15 | 220 | 18 | 420*420*150 |
| DY50100 | 50 | 100 | 5 | 25 | 380 | 20 | 420*420*150 |
| DY5100100 | 100 | 100 | 10 | 50 | 380 | 50 | 550*450*320 |
| DY50150 | 50 | 150 | 7.5 | 38 | 380 | 20 | 420*420*150 |
| DY100150 | 100 | 150 | 15 | 75 | 380 | 50 | 550*450*320 |
| DY50200 | 50 | 200 | 10 | 50 | 380 | 20 | 420*420*150 |
| DY100200 | 100 | 200 | 20 | 100 | 380 | 70 | 560*580*680 |
| DY100250 | 100 | 250 | 25 | 125 | 380 | 70 | 580*510*680 |
| DY100300 | 100 | 300 | 30 | 150 | 380 | 70 | 580*510*680 |
| DY200200 | 200 | 200 | 40 | 200 | 380 | 70 | 580*510*680 |
| DY200300 | 200 | 300 | 60 | 300 | 380 | 90 | 580*510*920 |
| DY300300 | 300 | 300 | 90 | 450 | 380 | 100 | 580*510*920 |
| DY400300 | 400 | 300 | 120 | 600 | 380 | 130 | 580*510*1150 |
| DY500300 | 500 | 300 | 150 | 750 | 380 | 180 | 600*530*1600 |
| DY400400 | 400 | 400 | 160 | 800 | 380 | 180 | 600*530*1600 |
| DY200350 | 200 | 350 | 70 | 350 | 380 | 100 | 580*510*920 |
| DY250300 | 250 | 300 | 75 | 375 | 380 | 100 | 580*510*920 |
| DY250350 | 250 | 350 | 87.5 | 438 | 380 | 100 | 580*510*920 |
| DY30250 | 30 | 250 | 7.5 | 38 | 380 | 20 | 420*420*150 |
| DY150250 | 150 | 250 | 37.5 | 188 | 380 | 70 | 560*580*680 |
Electrophoresis Machine Functions: Single timing, soft start
Control Method: Panel control or remote box control
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.

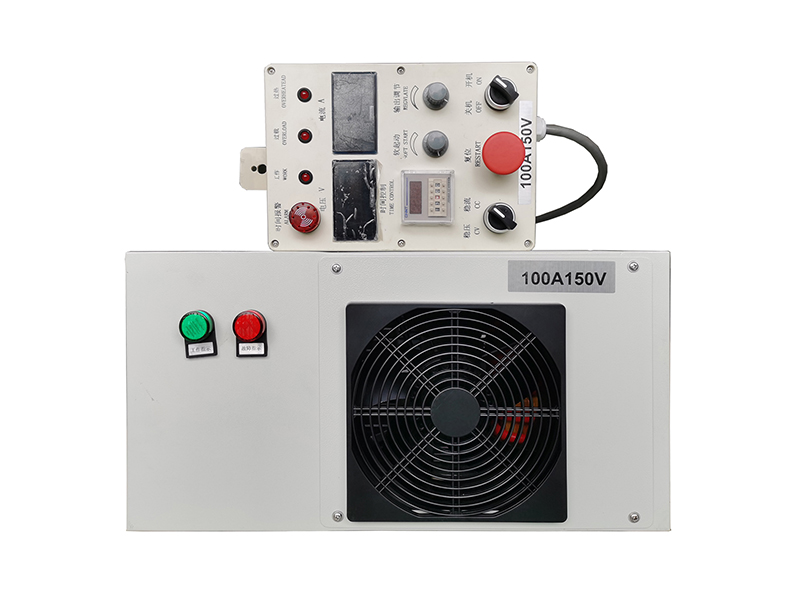

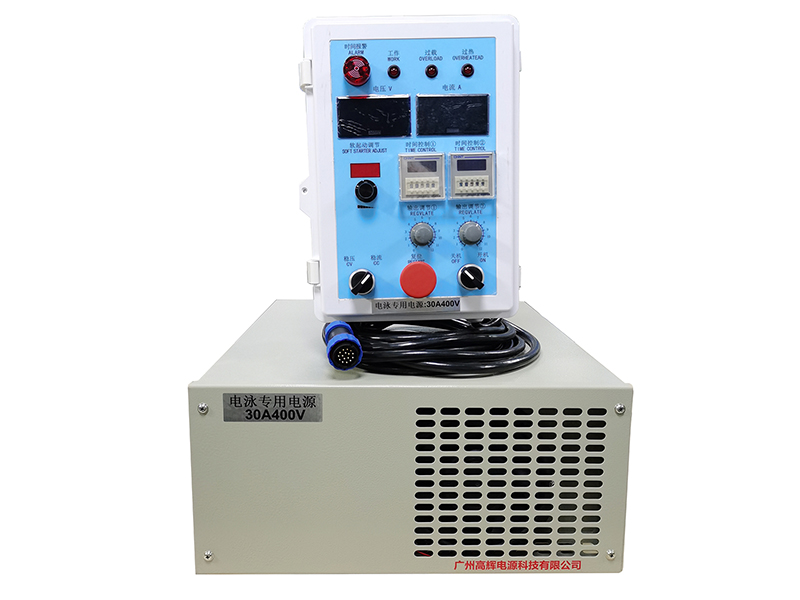

1. Work
Running indicator light, lights up when the power supply is operating normally.
2. 6cm screw fixing hole
Mounting hole for securing the control panel.
3. ALARM
Audible and visual alarm for time-up or fault conditions.
4. Output voltage display
Shows real-time output voltage of the power supply.
5. Time Control
Timer module for setting process duration, supports automatic stop after time-up.
6. CV/CC
Switch between constant voltage (CV) and constant current (CC) operating modes.
7. RESTART
Reset button to restart the control system or clear alarms.
8. OVERLOAD
Overload indicator light, lights up when the power supply exceeds the rated current.
9. OVERHEATEAD
Over-temperature indicator light, lights up when the power supply exceeds the safe temperature.
10. Output current display
Shows real-time output current of the power supply.
11. Regulate
Adjustment knob for setting output voltage or current.
12. Soft Starter Adjust
Adjustment knob for controlling the soft start ramp-up speed to avoid inrush current.
13. OFF/ON
Main power switch to turn the power supply on or off.
14. Host control cable
Connection port for linking the control panel to the main power unit.
GAOHUI’s electrophoresis rectifier integrates advanced technology and user-centric design to stand out in the market. Below we break down its core features:
GAOHUI’s electrophoresis rectifier integrates advanced technology and user-centric design to stand out in the market. Below, we break down its core features, starting with the most essential one:
We use IGBT technology to achieve ≤1% accuracy and ripple, which reduces background noise, avoids blurred bands, and ensures consistent, repeatable results for both experiments and production. Moreover, this high precision directly translates to more reliable data in lab settings and fewer defects in industrial production.
The product features an LCD touch screen for one-click parameter setup and real-time data display. It can store up to 100 programs (20 steps each) for quick recall, while stackable lab models save valuable space and remote monitoring via RS485 adds convenience. Additionally, the intuitive interface means even new users can operate the equipment with minimal training.
We’ve equipped the rectifier with multiple protection functions—including no-load, overheat, short circuit, and undervoltage protection—to prevent equipment damage and ensure operator safety during use. Importantly, these protection mechanisms activate automatically, minimizing the risk of accidents and equipment failure.
Lab models use flame-retardant materials for compact, space-saving design, while industrial models feature a dustproof, waterproof, and anticorrosive structure. Both types offer a ≥8-year lifespan and support 24/7 operation. For example, industrial models are specifically engineered to withstand harsh factory environments, ensuring long-term reliability.
We can adjust voltage, current, cooling methods, and working modes to match special scenarios, such as renewable energy coupling and high-voltage electrophoresis, to meet your unique needs.
Compared to traditional electrophoresis power supplies, GAOHUI’s products offer distinct advantages that help labs and enterprises improve efficiency and reduce costs. Specifically, these advantages include:
Global Support: Finally, we provide 24/7 technical service, hold ISO/CE certifications, and offer fast global shipping.
Stable Output: First, it avoids defects caused by power fluctuations, which improves product qualification rates.
Energy Efficient: Second, it boasts ≥95% overall efficiency, which cuts long-term electricity costs.
Easy Operation: Third, new operators can master it quickly, which reduces training labor costs.
GAOHUI’s electrophoresis power supplies and rectifiers serve a wide spectrum of industrial sectors, supporting nearly all industrial electrophoretic coating processes. Below are the main application areas across key industries:
Our power units provide stable DC output for electrophoretic coating on vehicle bodies, chassis, engine parts, fasteners and structural components. They ensure uniform film formation, strong adhesion and excellent corrosion resistance, meeting high standards for automotive surface treatment production lines.
Widely used for electrophoretic coating on kitchen hardware, sanitary fittings, electrical enclosures and home appliance parts. The stable output guarantees consistent coating thickness, smooth finish and enhanced durability, greatly improving both appearance and service life.
Ideal for architectural aluminum profiles, doors, windows and decorative metal components. It supports continuous large‑scale electrophoretic coating production, delivering uniform coloring and reliable corrosion protection for long‑term outdoor use.
Applied to high‑precision metal parts in aerospace and high‑end equipment. Our power supplies ensure stable, controllable output to achieve thin, dense and high‑performance electrophoretic coatings that meet strict quality and reliability requirements.
We provide fully customized solutions for special working conditions, including low‑current high‑stability systems, modular power units, multi‑channel synchronous output and distributed production line configurations. We tailor voltage, current, control mode and structure to fully match your unique process requirements.
With over 25 years of R&D and manufacturing experience, GAOHUI has built a reputation for mature technology and strict quality control. Our R&D team delivers tailored solutions, while a 1-year warranty and lifelong maintenance ensure you use our products without worry. Moreover, our commitment to quality means we conduct rigorous testing on every product before it leaves our factory.

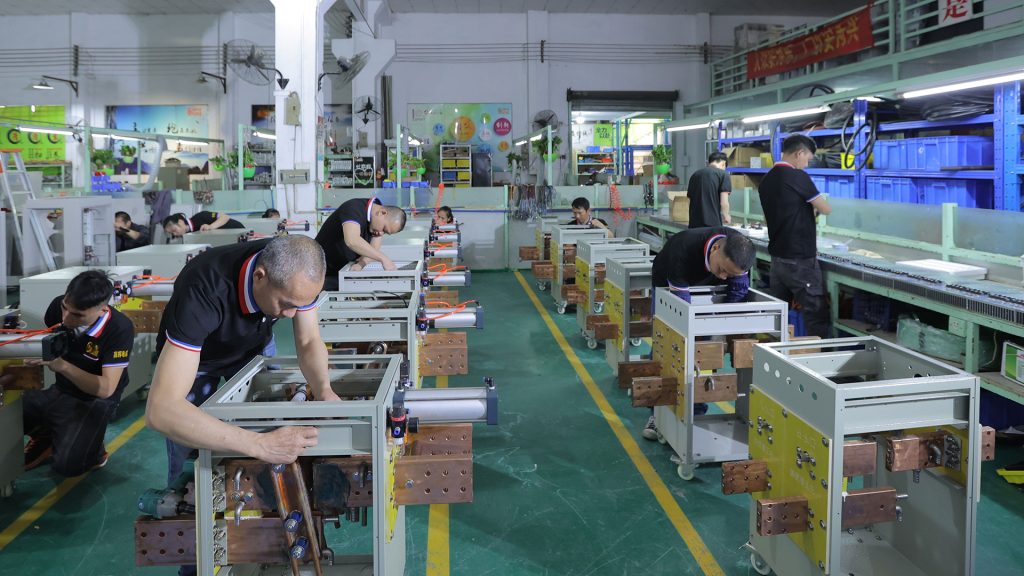

Our factory has advanced production equipment and precision testing instruments. We strictly implement CE, ISO, and other international certifications management system and international industrial standards.

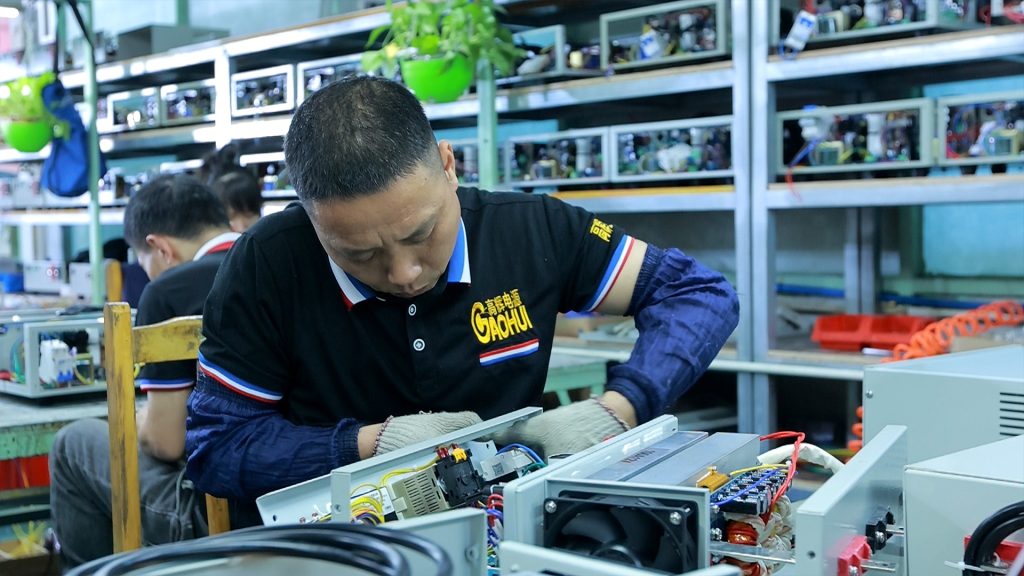

Each IGBT Electrophoresis Power Supply undergoes strict testing before shipment. This ensures stable performance and reliable quality.
We offer fast delivery and global shipping, and our professional team provides 24/7 support, including pre-sales technical consultation, in-sales customization guidance, and after-sales maintenance.
Choosing GAOHUI means choosing a reliable partner that helps you reduce costs, boost efficiency, and achieve sustainable development for your electrolysis production line.
If you have specific needs for laboratory or industrial electrophoresis power, send us your requirements. Additionally, our sales team is available to answer any questions you may have about product specifications or customization options.
✅ Get Quote NowA: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
