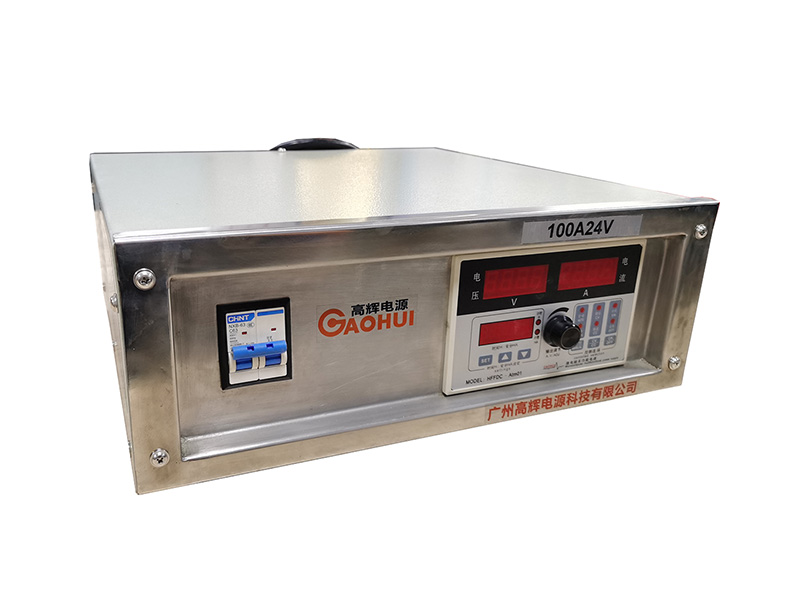

Built for precision metal surface processing, the Electrolytic Etching Rectifier supplies adjustable 100A 24V DC power for consistent electrolytic etching operations. Furthermore, it maintains steady output during continuous cycles to produce repeatable etching results.
Electrolytic Etching Rectifier provides dedicated DC power for workshop‑grade and laboratory electrolytic etching work. Even so, ordinary power supplies often produce current fluctuations under long‑time continuous load. This instability creates uneven etching depth and poor surface consistency on metal workpieces. Electrolytic etching demands precise and stable power to control material removal rate accurately. Therefore, a specialised Electrolytic Etching Rectifier becomes essential for reliable processing outcomes.
This Electrolytic Etching Rectifier adopts high‑frequency IGBT conversion design to suppress output ripple, with rated parameters of 100A and 24V. Operators adjust current and voltage across full 0‑100A and 0‑24V range to suit different metal substrates and etching formulas. As a result, technicians can handle sample etching and small‑batch processing without frequent parameter tuning. Meanwhile, multi‑layer electronic protection prevents damage caused by over‑voltage, over‑current and over‑temperature risks for long‑hour running.
This Electrolytic Etching Rectifier features waveform optimisation targeted for electrolytic etching reactions. As a result, it maintains high efficiency under long‑duration partial‑load operating conditions. Many general‑purpose power supplies lack process‑oriented optimisation for etching applications. By contrast, every unit undergoes strict waveform calibration before factory delivery. Operators achieve consistent etching effects across multiple workpiece batches.
Fast‑response closed‑loop control keeps current and voltage within tight tolerance during processing. Accordingly, material removal rate stays stable and reduces defective workpieces. In addition, onboard memory stores multiple groups of custom process parameters. Operators can recall saved parameter profiles directly instead of manual reset before each processing run.
Engineers optimise internal hardware layout for practical electrolytic etching scenarios. It delivers reliable DC performance for metal marking, surface texturing and electrochemical etching trials. This rectifier works well for formula testing and small‑scale production verification.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Main Output | Rated Current | 100A |
| Rated Voltage | 24V | |
| Output Mode | Constant Current, Constant Voltage | |
| Cooling System | Cooling Type | Air‑cooled |
| Power Input | Input Power | AC 220V Single‑phase |
| Communication | Data Interface | RS485 |
| Safety Settings | Protection Items | Over‑voltage, Over‑current, Over‑temperature, Short‑circuit Protection |
| Application Scope | Typical Use | Electrolytic etching, metal surface texturing, electrochemical lab tests |
We can provide: The product comes with a one‑year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp‑up function for current or voltage settings. For time‑sensitive applications, you can use the timed operation mode. Moreover, the multi‑segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute‑level timing function. If you need customization, please contact us for further details.
Metal processing workshops, material‑research labs and prototype‑development centres widely deploy this Electrolytic Etching Rectifier. For instance, operators carry out electrolytic etching for metal part marking and surface texture modification. They test different electrolyte formulas to adjust etching depth and surface finish.
Apart from small‑batch workpiece processing, it serves as a stable test platform for new etching‑process feasibility validation. Furthermore, it completes batches of parameter screening work. It generates trustworthy records for process optimisation and laboratory research projects.
We design and manufacture professional rectifier equipment for electrolytic etching and electrochemical surface‑treatment scenarios. Our technicians perform full‑load ageing testing and waveform calibration on every Electrolytic Etching Rectifier before shipment. It guarantees stable output performance for repeated long‑time processing cycles.
Furthermore, we accept custom adjustments for output range and auxiliary functions. We provide professional technical after‑sales guidance and spare‑part support, and we deliver dependable power solutions for your electrolytic etching projects.
Learn more about related products：500A 15V Air-cooled Electrolytic Cleaning Rectifier
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
