GAOHUI electrolysis rectifier is a professional IGBT power supply for metal electrolysis, hydrogen production, wastewater treatment. High efficiency, stable output, customizable, factory direct supply.
GAOHUI electrolysis rectifier delivers stable, high-performance DC or pulse output for industrial electrolysis processes. Specifically, these processes include metal electrolysis (aluminum, copper, zinc), water electrolysis hydrogen production, wastewater treatment electrolysis, and chlor-alkali electrolysis.
It ensures stable electrochemical reactions while guaranteeing high product purity and efficient production. Consequently, it is ideal for large-scale industrial lines such as metal smelting, green hydrogen production, and environmental wastewater treatment.
Furthermore, widely used in heavy industry, new energy, environmental protection, and aerospace, this rectifier provides reliable power for every electrolysis production link.
| Electrolysis Power Supply Model Selection (Air/Water-Cooled Customizable) | |||||||
| Model | Output Current (A) | Output Voltage (V) | Power (kW) | Input Current (A) | Input Voltage (V) | Weight (kg) | W×L×H (mm) |
| DJ5036 | 50 | 36 | 1.8 | 8.2 | 220 | 10 | 270×380×160 |
| DJ10024 | 100 | 24 | 2.4 | 10.9 | 220 | 17 | 420×420×170 |
| DJ50015 | 500 | 15 | 7.5 | 11.4 | 380 | 27 | 450×480×210 |
| DJ75024 | 750 | 24 | 18 | 27.3 | 380 | 76 | 510×580×690 |
| DJ100015 | 1000 | 15 | 15 | 22.8 | 380 | 45 | 520×570×290 |
| DJ100048 | 1000 | 48 | 48 | 72.9 | 380 | 78 | 510×580×690 |
| DJ18009 | 1800 | 9 | 16.2 | 27.5 | 380 | 69 | 540×740×290 |
| DJ30006 | 3000 | 6 | 18 | 27.3 | 380 | 110 | 510×580×690 |
| DJ300012 | 3000 | 12 | 36 | 54.7 | 380 | 120 | 510×580×690 |
| DJ300018 | 3000 | 18 | 54 | 82 | 380 | 150 | 510×580×690 |
| DJ300024 | 3000 | 24 | 72 | 109.4 | 380 | 180 | 510×580×690 |
| DJ300060 | 3000 | 60 | 180 | 273.5 | 380 | 230 | 510×580×1160 |
| DJ50006 | 5000 | 6 | 30 | 45.6 | 380 | 150 | 510×580×1160 |
| DJ500012 | 5000 | 12 | 60 | 91.2 | 380 | 160 | 510×580×1160 |
| DJ500018 | 5000 | 18 | 90 | 136.7 | 380 | 180 | 510×580×1160 |
| DJ500060 | 5000 | 60 | 300 | 455.8 | 380 | 255 | 510×580×1620 |
| DJ60006 | 6000 | 6 | 36 | 54.7 | 380 | 165 | 510×580×1160 |
| DJ600012 | 6000 | 12 | 72 | 109.4 | 380 | 175 | 510×580×1160 |
| DJ600018 | 6000 | 18 | 108 | 164.1 | 380 | 190 | 510×580×1160 |
| DJ600060 | 6000 | 60 | 360 | 547 | 380 | 280 | 510×580×1620 |
| DJ80006 | 8000 | 6 | 48 | 72.9 | 380 | 300 | 510×580×1620 |
| DJ800012 | 8000 | 12 | 96 | 145.9 | 380 | 320 | 510×580×1620 |
| DJ800018 | 8000 | 18 | 144 | 218.8 | 380 | 350 | 700×900×1780 |
| DJ800060 | 8000 | 60 | 480 | 729.3 | 380 | 450 | 700×900×1780 |
| DJ100006 | 10000 | 6 | 60 | 91.2 | 380 | 500 | 700×900×1780 |
| DJ1000012 | 10000 | 12 | 120 | 182.3 | 380 | 530 | 700×900×1780 |
| DJ1000018 | 10000 | 18 | 180 | 273.5 | 380 | 580 | 700×900×1780 |
| DJ1000060 | 10000 | 60 | 600 | 911.6 | 380 | 657 | 700×900×1780 |
This series of rectifiers is widely applicable to various electrolysis scenarios, including electrolytic stripping (e.g., electronic parts stripping, circuit board stripping, paper/fiber/scrap stripping), electrolytic metal recovery, gold/silver refining, copper extraction, electrodeposition, electrolytic nickel plating, electrolytic smelting, and degreasing, etc.

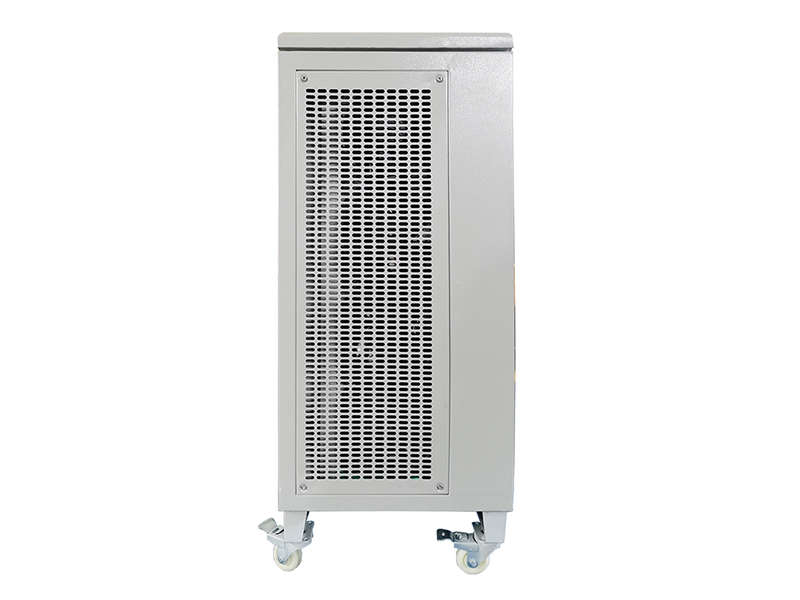

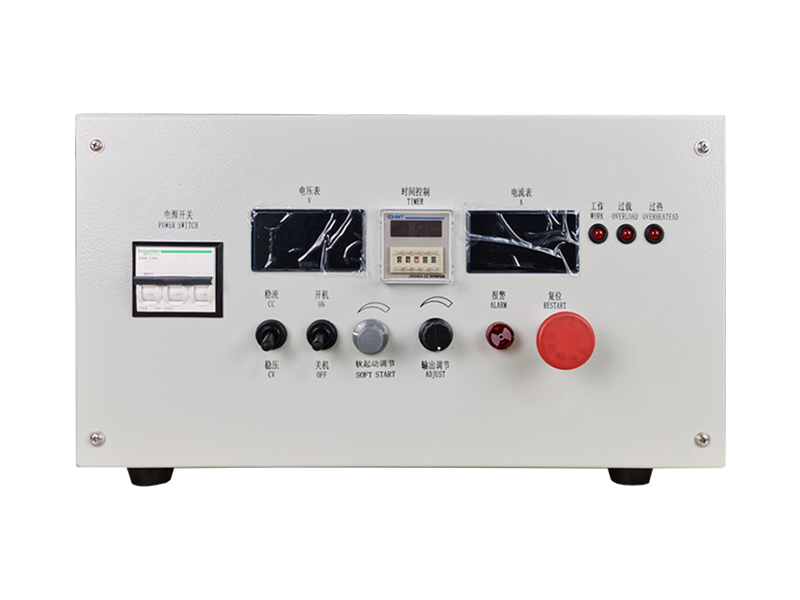

| Electrolytic Plasma Polishing (Air-Cooled) | |||||||
| Model | Output Current (A) | Output Voltage (V) | Power (kW) | Input Current (A) | Input Voltage (V) | Weight (kg) | W×L×H (mm) |
| PG20350 | 20 | 350 | 7 | 10.6 | 380 | 25 | 320×450×160 |
| PG30350 | 30 | 350 | 10.5 | 16 | 380 | 28 | 455×585×270 |
| PG45350 | 45 | 350 | 15.7 | 238.5 | 380 | 30 | 460×500×290 |
| PG70350 | 70 | 350 | 24.5 | 37.2 | 380 | 78 | 510×580×790 |
| PG80350 | 80 | 350 | 28 | 42.5 | 380 | 83 | 510×580×790 |
| PG200350 | 200 | 350 | 70 | 106.4 | 380 | 167 | 510×580×1170 |
| PG10020 | 100 | 20 | 2 | 9.1 | 220 | 9 | 275×420×170 |
| PG15036 | 150 | 36 | 5.4 | 24.5 | 220 | 36 | 450×550×230 |
| PG20012 | 200 | 12 | 2.4 | 10.9 | 220 | 20 | 420×420×170 |
| PG20036 | 200 | 36 | 7.2 | 10.9 | 380 | 36 | 450×550×230 |
| PG30020 | 300 | 20 | 6 | 9.11 | 380 | 20 | 420×420×170 |
| PG100024 | 1000 | 24 | 24 | 36.5 | 380 | 54 | 540×740×290 |
| PG300018 | 3000 | 18 | 54 | 82 | 380 | 120 | 510×580×920 |
To enhance usability and adaptability, we offer optional functions such as Smart Panel Control, Omron PLC Control, and Mitsubishi PLC (Q Series, FX Series), which can be customized according to specific operational needs.
Customization is available for a wide range of functions, including constant current and constant voltage modes, programmable current or voltage ramp-up times, timed operation, multi-segment constant current/voltage profiles, RS485 communication interfaces, automatic polarity reversal, and ampere-hour timing. For further details, please contact .
1. 6cm screw fixing hole
Mounting hole for securing the control panel.
2. Output voltage display
Shows real-time output voltage (unit: V).
3. Output current display
Shows real-time output current (unit: A).
4. Timing/ampere display
Shows timer count or cumulative ampere-minute value for process control.
5. Manual/automatic indicator light
Indicates whether the unit is in manual (local) or automatic (remote/RS485) control mode.
6. Power on/off indicator light
Shows the power supply’s on/off status.
7. Stable voltage/stable current indicator
Indicates operation in constant voltage (CV) or constant current (CC) mode.
8. ON/OFF button
Controls power output start/stop.
9. CV/CC button
Switches between constant voltage (CV) and constant current (CC) operating modes.
10. Output current or voltage adjustment knob
Adjusts output voltage/current; click to switch between quick and fine adjustment modes.
11. Automatic/Manual button
Toggles control mode between automatic (RS485 communication) and manual (local control).
12. Up/down buttons
Adjust values or navigate menu options.
13. SET button
Enters parameter settings (timing, ampere-counter, communication, etc.).
14. RX2/TX2
Secondary RS485 communication port (receive/transmit).
15. RX1/TX1
Primary RS485 communication port (receive/transmit).
16. RS485 communication interface
Wiring port for the RS485 communication bus.
17. Host control cable
Connection port for linking to the main power supply unit.
18. Timing indicator light
Lights when the timer function is active.
19. Ampere Counter Indicator
Lights when the cumulative ampere-minute function is active.
Our IGBT rectifier boasts industry-leading features that meet strict modern industrial demands. Furthermore, these features help you gain a competitive edge in the market. Below are the core features in detail:
We offer pure DC, single pulse, dual pulse, and reverse pulse modes, which provide the flexibility needed for metal electrolysis, hydrogen production, and wastewater treatment. For instance, reverse pulse prevents scaling in electrodialysis, while pulse mode boosts hydrogen production efficiency. Moreover, our customizable rectifier easily adapts to your unique process needs.
The rectifier features adjustable frequency (10–1000Hz) and duty cycle (0–100%), with output accuracy reaching ≤1%. For high-precision scenarios like copper foil electrolysis, accuracy even hits ≤0.5%. This level of precision not only stabilizes electrochemical reactions but also improves product purity and reduces energy consumption, making our industrial electrolysis power supply a cost-effective choice.
We utilize a three-proof structure (dustproof, waterproof, anti-corrosion) and an industrial-grade housing, which we specifically optimized for humid, corrosive, and high-temperature industrial sites. As a result, the rectifier operates stably in harsh conditions, thereby reducing maintenance costs and ensuring long-term reliability for your production line.
It is equipped with comprehensive protection functions, including phase loss, overheat, overcurrent, short circuit, undervoltage, overvoltage, communication issues, and cooling water abnormalities. These functions effectively prevent equipment damage and ensure safe continuous operation, as our IGBT electrolysis rectifier fully meets international safety standards.
The rectifier supports standard RS485 communication, 4-20mA signal transmission, and remote monitoring, allowing users to control and monitor the device remotely with ease. Additionally, users can adjust output parameters in real time and schedule power, which is particularly suitable for large-scale workshops and distributed hydrogen projects, ultimately boosting production efficiency.
We use high-quality industrial-grade IGBT components and a stable circuit structure, with a modular design that simplifies maintenance and expansion. Thanks to these design choices, the electrolysis power supply has a service life of ≥8 years under normal use, lowering long-term replacement and maintenance costs.
GAOHUI’s industrial electrolysis power supply offers clear advantages over competitors, which help enterprises reduce costs and enhance productivity significantly.
It ensures stable current and voltage with ripple ≤1%, which avoids defects caused by power fluctuations—such as uneven metal plating and low hydrogen purity.
This stability improves product qualification rates and reduces material waste, making our IGBT electrolysis rectifier a trusted choice for global customers.
The rectifier adopts advanced IGBT high-frequency switching technology and an optimized circuit design, achieving an overall efficiency of ≥95% (≥97% for hydrogen electrolysis rectifiers).
Over time, this energy-saving structure saves considerable electricity costs during long-term continuous operation, especially for high-power scenarios like aluminum smelting.
It features a user-friendly PLC touch screen and automatic control functions, supporting one-click parameter setting, fault self-diagnosis, and data recording.
Even new operators can master the system quickly, which reduces training time and labor costs, as our customizable electrolysis rectifier prioritizes user-friendliness.
We provide tailored solutions for different processes and scenarios, adjusting current, voltage, output mode, cooling method, and control functions to match your specific needs.
Whether you require a metal electrolysis rectifier or a wastewater electrolysis rectifier, our R&D team delivers personalized solutions to meet your requirements.
We offer 24/7 technical and after-sales support, and our products hold ISO9001, CE, and other international certifications, meeting global industrial standards.
Our professional team responds promptly to any issues, ensuring uninterrupted production. As a global manufacturer, we provide comprehensive support to customers worldwide.
Our electrolysis rectifier is widely used across various industries, covering nearly all industrial electrolysis processes. Moreover, it has become an essential power device for large-scale production lines globally. Specifically, its specific applications include the following key areas:
First and foremost, it is extensively used in aluminum, copper, zinc, nickel, and rare earth electrolysis, as it provides stable high-current power to support these critical processes. Consequently, this stability ensures metal purity and production efficiency, thereby making our high current electrolysis rectifier the top choice for metal smelters worldwide.
In addition to metal smelting, the rectifier also supports water electrolysis, solar hydrogen, and green hydrogen projects. Notably, it features wide-range power adjustment to adapt to the volatility of renewable energy, which in turn ensures high hydrogen purity and production efficiency. Furthermore, it supports the "double carbon" strategy, making our hydrogen electrolysis rectifier a key component for green hydrogen production.
Another important application lies in wastewater and environmental protection treatment. Specifically, it is suitable for industrial wastewater electrolysis, electrocoagulation, electroflocculation, and electrodialysis, as it can effectively remove heavy metals and organic pollutants. Additionally, it enables seawater desalination and meets environmental protection requirements, thus helping enterprises achieve green production goals with our wastewater electrolysis rectifier.
Moving on to the chemical industry, it is widely used in chlor-alkali, caustic soda, and hypochlorite generation processes. By providing stable high-power DC output, it ensures smooth chemical reactions, which ultimately improves product quality. As such, our IGBT electrolysis rectifier is specifically designed to meet the needs of the chemical industry.
Besides industrial production, it is also applied to electrolytic polishing of stainless steel, copper, aluminum, and other workpieces. Importantly, it ensures uniform surface brightness and prevents over-corrosion, which in turn boosts the added value of industrial products. For this reason, our electrolysis power supply provides stable, reliable power for surface treatment processes.
Finally, we can modify the rectifier for special setups, including distributed hydrogen production coupled with solar/wind power and large-scale metal smelting integrated systems. Thanks to its flexible design, our customizable electrolysis rectifier adapts smoothly to unique processes, thereby ensuring optimal performance for your specific production needs.
GAOHUI is a professional electrolysis power supply manufacturer with 25+ years of experience. We focus on R&D, production, and customization of electrolysis rectifier.
We have rich experience serving global industrial customers. Our mature technology and complete testing system win trust in heavy industry, new energy, and environmental protection.

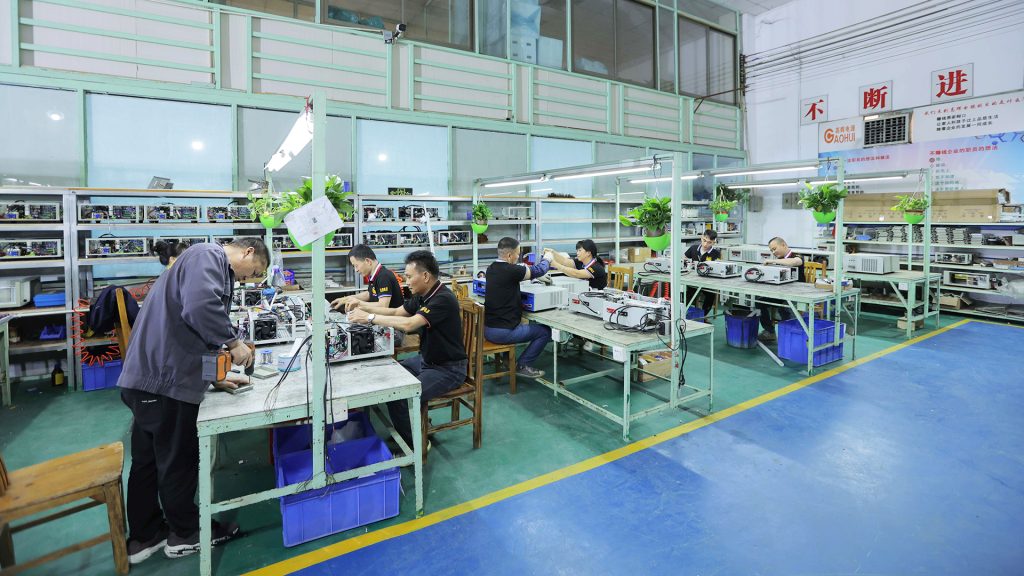

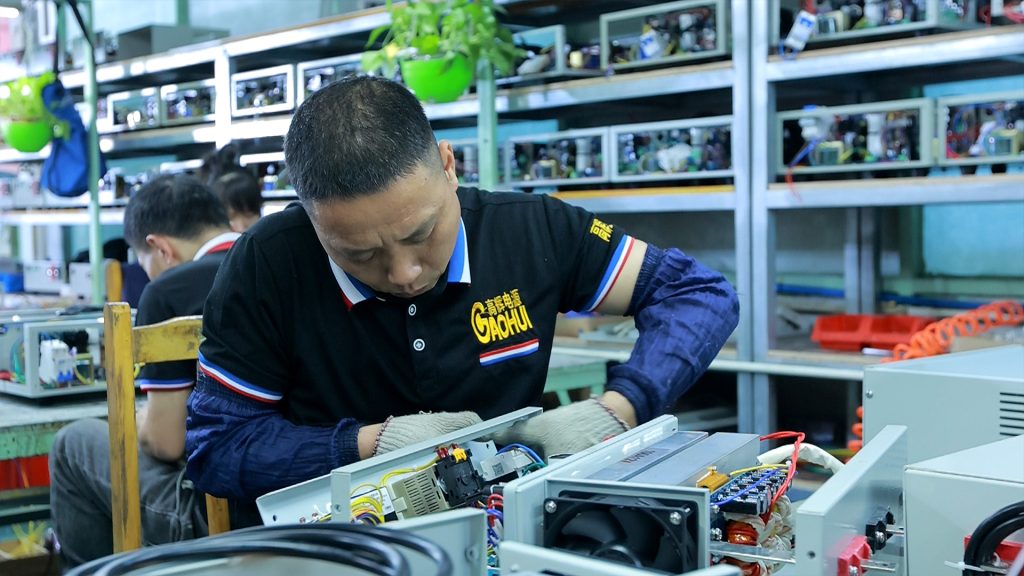

Our factory has advanced production equipment and precision testing instruments. We strictly implement CE, ISO, and other international certifications management system and international industrial standards.
Each IGBT electrolysis rectifier undergoes strict testing before shipment. This ensures stable performance and reliable quality.
We offer products ranging from 10A to 100000A, covering various rectifier models. Our R&D team provides custom designs to meet your specific needs.
This includes renewable energy matching, energy efficiency optimization, and adaptation to harsh environments, ensuring the rectifier perfectly fits your production scenario.
We offer fast delivery and global shipping, and our professional team provides 24/7 support, including pre-sales technical consultation, in-sales customization guidance, and after-sales maintenance.
Choosing GAOHUI means choosing a reliable partner that helps you reduce costs, boost efficiency, and achieve sustainable development for your electrolysis production line.

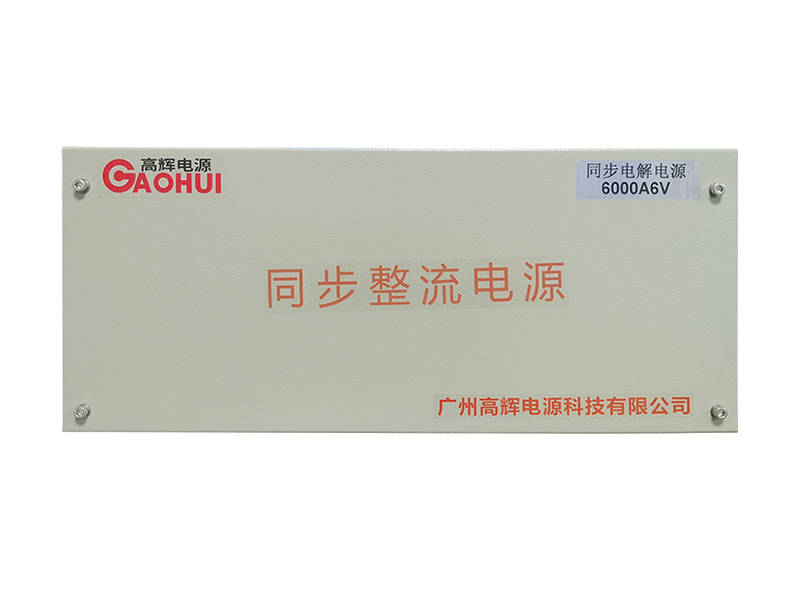

Learn more about related products:Water Cooled Synchronous Rectifier
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. Once we finalize the design, we will provide complete technical specifications and dimension drawings so you can fully understand the product.
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
