Output: 24V / 500A DC
Technology: Industrial rectification
Cooling: Air cooled
Voltage: 24V for high resistance water
Control: Digital ±1% precision
Duty: 24/7 continuous
Applications: Low conductivity wastewater, difficult emulsions, heavy metal removal

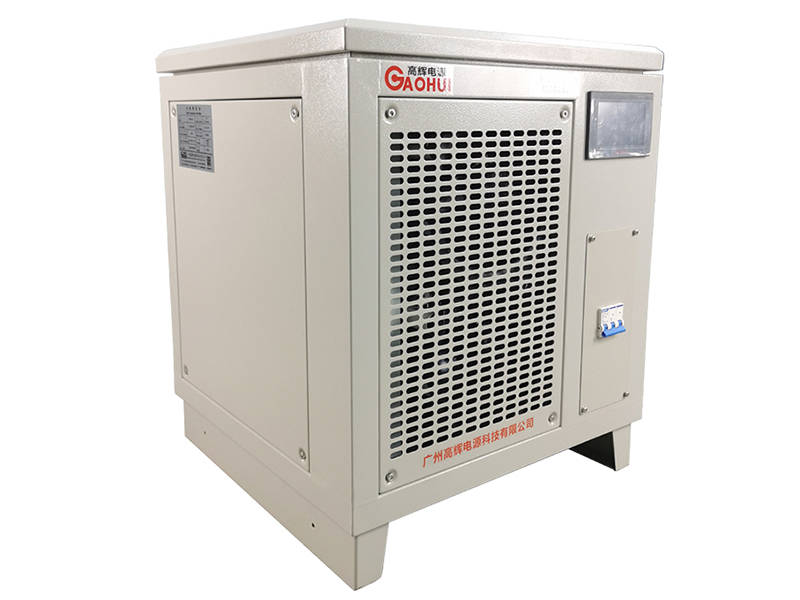

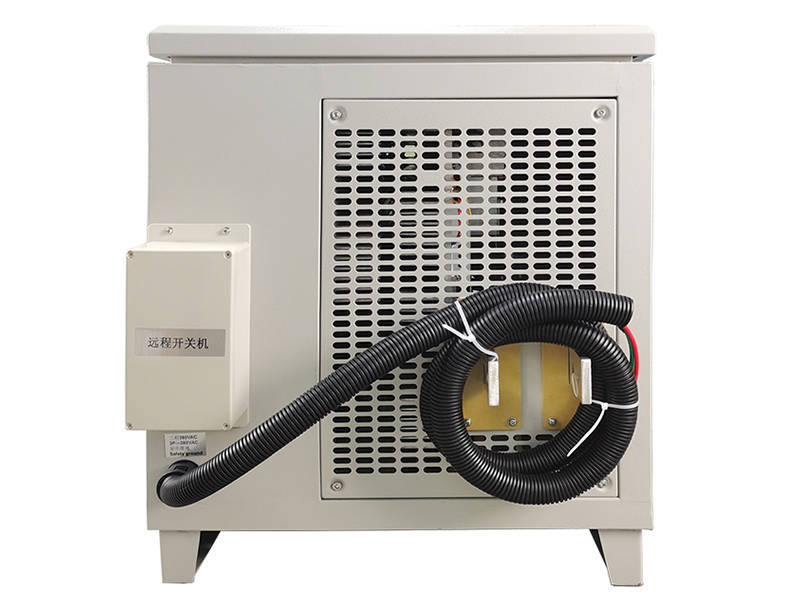

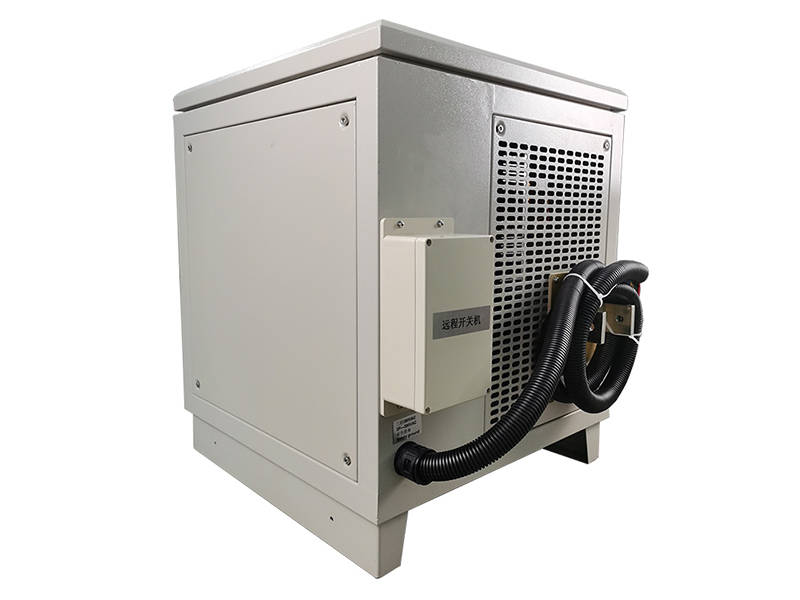

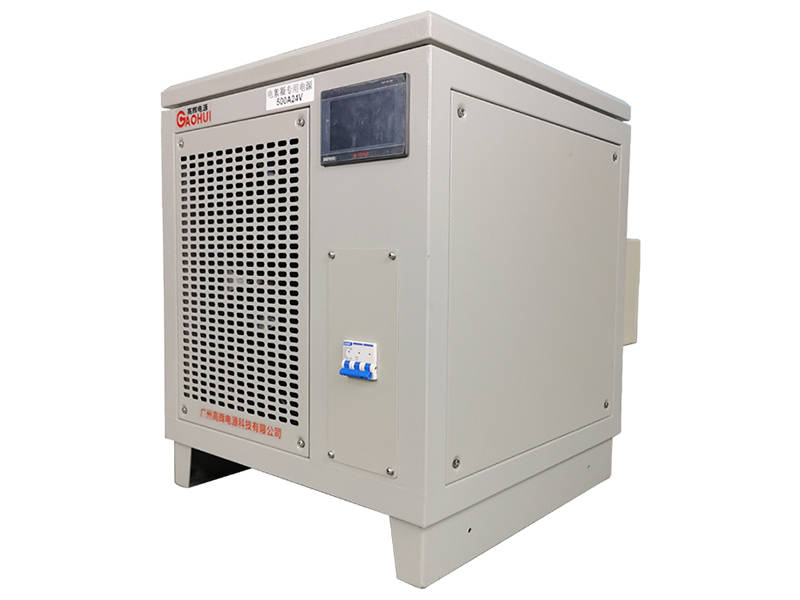

This 500A 24V air cooled electrocoagulation rectifier provides reliable DC power for challenging water treatment applications. It is specifically engineered for industrial wastewater with high resistivity, complex emulsions, and difficult-to-treat contaminants requiring higher driving voltage. Consequently, this rectifier ensures consistent coagulant generation and effective pollutant removal even in the most demanding water chemistries.
This electrocoagulation rectifier utilizes robust rectification technology optimized for treatment facilities handling waste streams with low conductivity. Therefore, it delivers stable current at 24V for consistent metal ion release from sacrificial electrodes in high-resistance water conditions. Moreover, the air cooled design enables maintenance-free operation in harsh industrial environments without water connections. Additionally, digital controls allow operators to adjust parameters for varying contaminant loads and water conductivities.
This electrocoagulation rectifier is specifically optimized for facilities treating water with high resistivity or challenging chemistry. The 24V output provides the additional driving force necessary for effective electrocoagulation in low-conductivity waters where standard voltage units cannot perform. Consequently, it delivers reliable treatment across a wider range of wastewater types including those previously considered unsuitable for electrocoagulation.
Industrial facilities with demineralized or low-conductivity process water use this rectifier for treatment. Mining operations in arid regions with high-resistivity water employ it for acid mine drainage treatment. Power plants utilize it for cooling tower blowdown containing scaling minerals. Chemical facilities apply it for wastewater with high organic solvent content. Landfill leachate with variable conductivity benefits from the higher voltage capability.
Precise current control ensures optimal metal ion release from aluminum or iron electrodes. Higher voltage capability maintains performance in less conductive waters where treatment was previously impossible. Adjustable parameters allow optimization for difficult contaminant types. These features result in higher removal efficiencies and compliance with stringent discharge limits.
This system effectively removes suspended solids, emulsified oils, and heavy metals from challenging waste streams. It also reduces chemical oxygen demand and color from industrial wastewater with high resistivity. Arsenic, lead, chromium, and other toxic metals are removed efficiently even at low concentrations. The 24V capability ensures treatment completion where lower voltages would fail.
The forced air system eliminates water treatment chemicals, piping, and cooling towers. Installation costs are significantly lower than water cooled alternatives. Maintenance is simplified with no pumps or water chemistry to monitor. The system operates reliably even in freezing conditions where water cooling might fail.
Industrial grade components ensure dependable performance year after year. Thermal monitoring protects against overtemperature conditions. This electrocoagulation rectifier is engineered for 24/7 continuous operation in demanding treatment applications.
