Total Output: 24V / 4000A DC
Configuration: 4 units N+1 parallel
Individual Unit: 24V / 1334A each
Redundancy: Full output with any 3 units
Cooling: Air cooled with redundant fans per unit
Control: Master-slave digital
Duty: 24/7 continuous
Applications: Mission-critical wastewater, pharmaceutical, chemical, municipal treatment

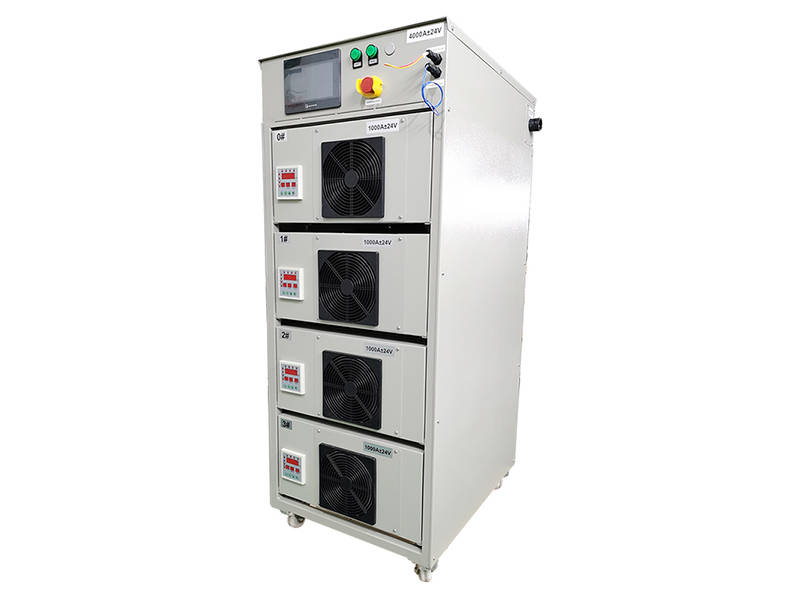

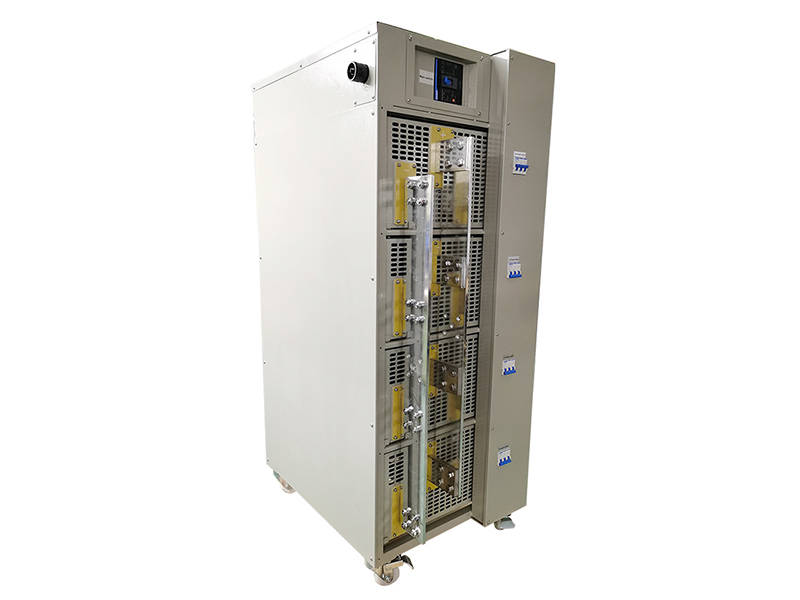

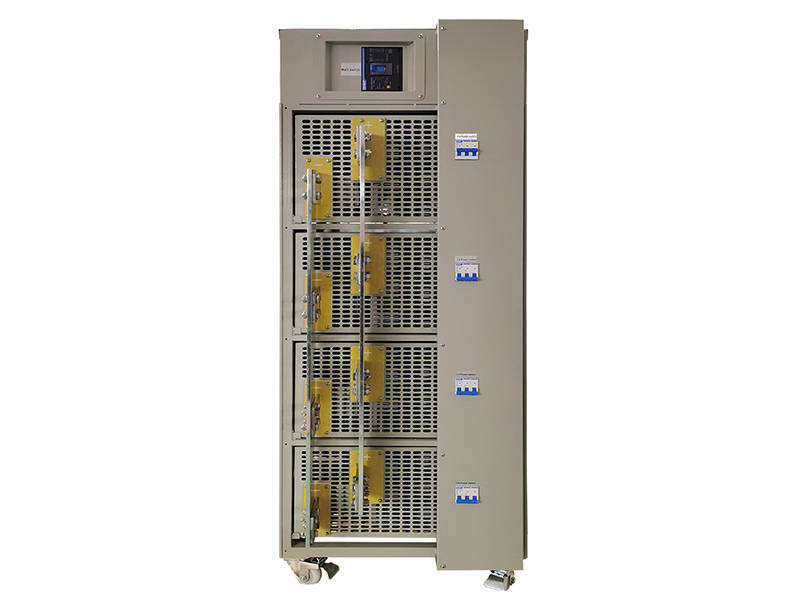

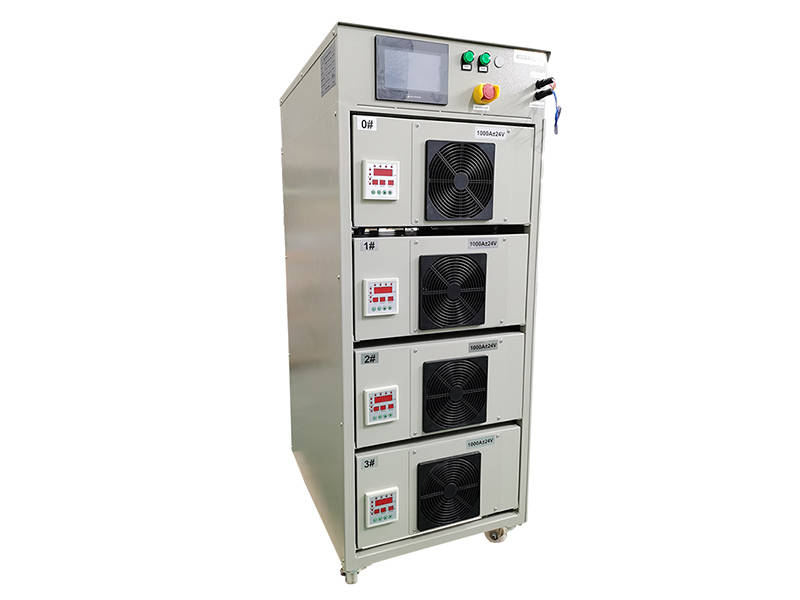

This 4000A 24V air cooled electrocoagulation rectifier system features four units configured for N+1 parallel operation. It is specifically engineered for mission-critical industrial wastewater treatment facilities requiring maximum uptime and redundant power delivery. Consequently, this redundant system ensures continuous contaminant removal even during unit maintenance or unexpected failures.
This electrocoagulation rectifier system utilizes advanced parallel operation technology with true N+1 redundancy. Therefore, if any single unit goes offline, the remaining three units continue delivering full 4000A output without interruption. Moreover, the master-slave control architecture ensures perfect load sharing between all four units. Additionally, hot-swap capability allows unit replacement without treatment shutdown.
This electrocoagulation rectifier system is specifically optimized for facilities where treatment cannot be interrupted. The N+1 redundant architecture ensures continuous operation during unit maintenance or unexpected failures. Consequently, wastewater treatment plants achieve 99.9% power availability for their electrocoagulation cells.
Major chemical manufacturing complexes use this system for uninterrupted wastewater treatment. Pharmaceutical facilities with continuous discharge streams employ it for guaranteed contaminant removal. Power plants with environmental compliance requirements utilize it for reliable effluent treatment. Large food processing facilities with permits at stake apply it for consistent organic load reduction. Municipal treatment plants use it for meeting strict discharge limits without interruption.
The N+1 configuration eliminates single points of failure in the power delivery system. Therefore, scheduled maintenance no longer requires treatment shutdowns. Unscheduled unit failures do not impact effluent quality. This architecture dramatically improves overall equipment effectiveness and reduces environmental compliance risk.
Individual unit isolation allows safe servicing while others maintain full treatment capacity. Hot-swap capability means units can be exchanged without process interruption. Automatic load sharing ensures optimal performance regardless of which units are online. These features provide unprecedented reliability for critical treatment operations.
Each unit features redundant fans to ensure continuous cooling even if a single fan fails. Therefore, thermal performance remains reliable in demanding applications. Maintenance can be performed on individual fans without unit shutdown. The air cooled design eliminates water cooling complexity.
Precise current control across all four units ensures consistent coagulant release even during redundancy events. Stable voltage maintains efficient electrode performance under varying load configurations. Fast response time maintains stability during unit switching. These features result in consistent effluent quality regardless of system status.
The modular design allows easy expansion as treatment needs grow. Additional units can be added to increase total current capacity. The system automatically incorporates new units into the parallel configuration. This flexibility protects the investment as facilities expand.
Industrial grade components ensure dependable performance year after year. Comprehensive monitoring provides early warning of potential issues. This electrocoagulation rectifier system is engineered for continuous operation in the most demanding treatment applications.
