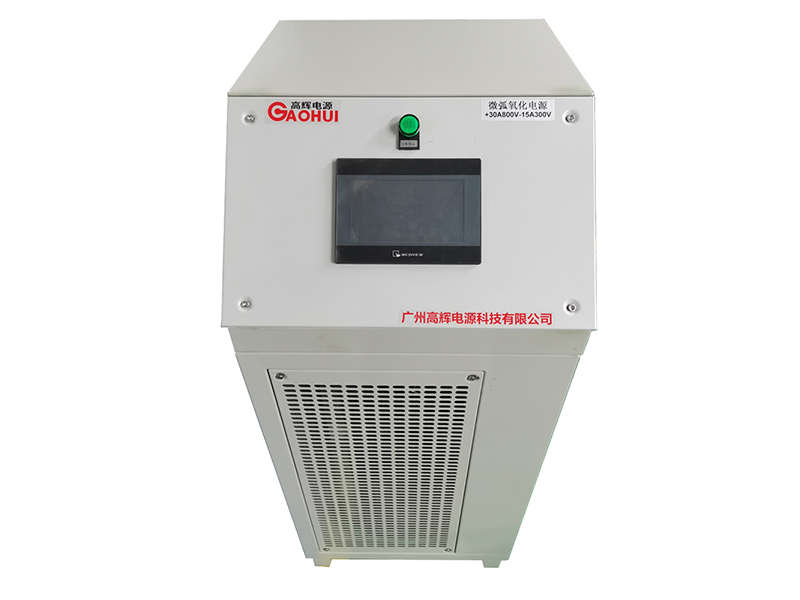

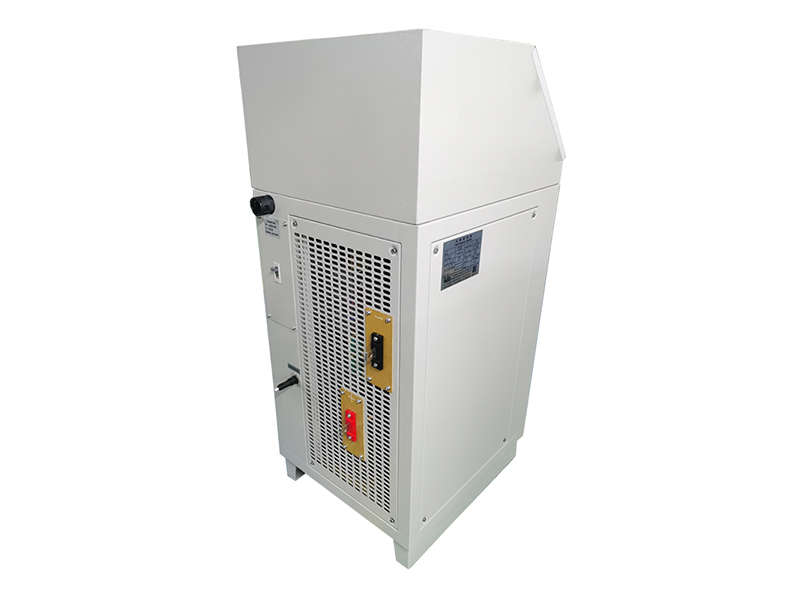

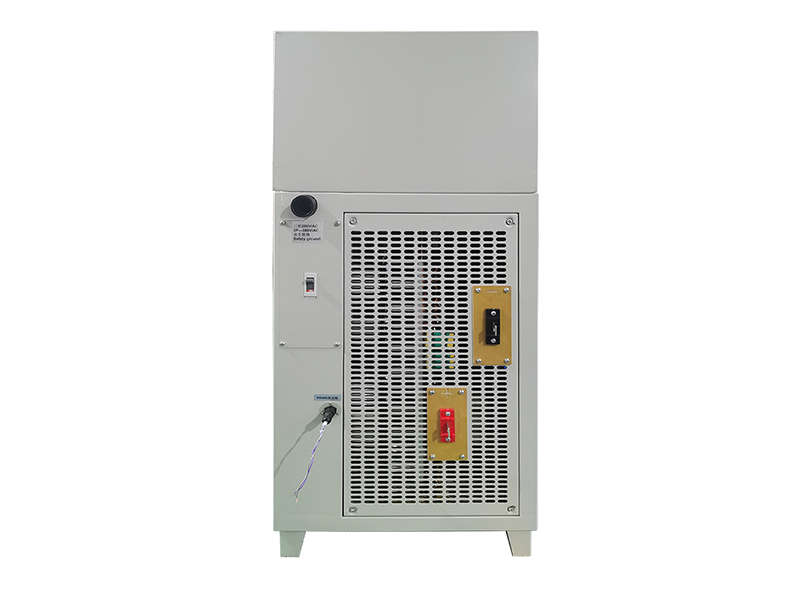

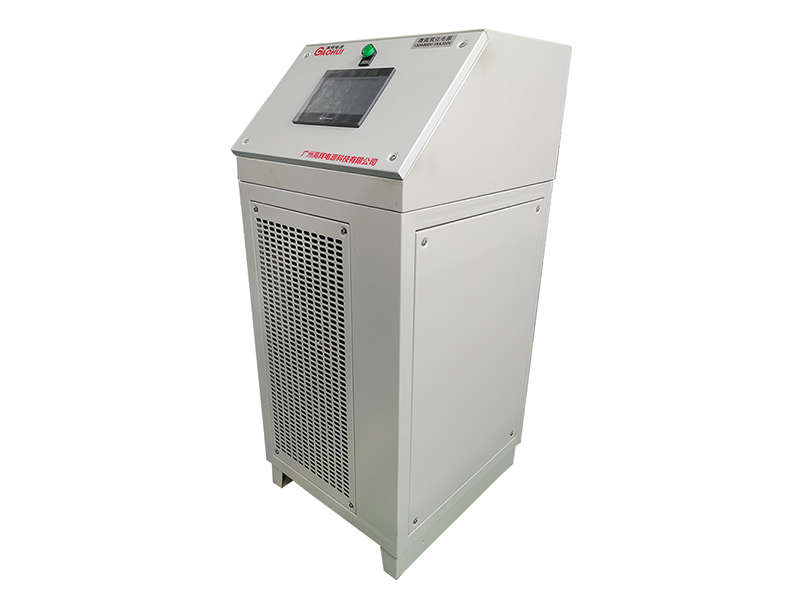

Built for diverse laboratory‑based micro‑arc oxidation research, this dual‑output MAO test rectifier delivers two distinct adjustable power ranges to process varied aluminium, titanium and magnesium alloy test workpieces without switching equipment.
Dual‑Output MAO Test Rectifier meets the practical demands of material laboratories running multiple sets of micro‑arc oxidation experiments with different power requirements. In fact, research teams often alternate between high‑voltage low‑medium‑current modes and moderate‑voltage low‑current modes to observe how power parameters influence ceramic coating formation. Even so, deploying two separate rectifier units raises procurement costs and occupies precious bench‑top workspace; accordingly, lab layout planning and multi‑group sample testing efficiency become restricted.
Rated for dual output specifications 30A 800V and 15A 300V, this dual‑output MAO test rectifier adopts flexible‑range IGBT conversion architecture optimised for multi‑mode MAO lab workflows. Operators can switch between the two power ranges and fine‑tune pulse frequency as well as duty cycle through local control panel to match diverse alloy substrates and target coating indicators. Once lab staff finish wiring and electrolytic cell assembly, researchers can shift test conditions rapidly with no extra hardware rewiring when processing different specimen batches. Meanwhile, integrated arc‑suppression paired with multi‑layer safety protection reacts swiftly to intense spark surges, and this protective feature shields test coupons and internal circuit hardware during frequent mode‑change experimental cycles.
This dual‑output MAO test rectifier adopts high‑adaptability IGBT pulse conversion hardware, and operational efficiency stays above 86% under alternating‑range laboratory test load. Unlike single‑specification rectifier devices, this integrated unit combines two independent working windows within one cabinet; hence, research labs cut equipment investment and save limited bench‑top space.
Fast‑response closed‑loop feedback compensates subtle electrolyte impedance shifts as ceramic oxide coatings gradually build up on alloy sample surfaces. As a result, test coupons sustain fewer burn‑caused defects under both output ranges, and R&D teams obtain reliable comparative data for cross‑parameter MAO formula research. What is more, onboard memory stores multiple parameter presets for each working range, and operators can load validated test profiles instantly instead of manually adjusting settings for every new test batch.
Optimised for frequent‑range‑switch MAO laboratory environments, internal power circuits strictly control output ripple across both power outputs. Therefore, it delivers stable pulse energy to generate hard, wear‑resistant ceramic protective layers for various aluminium, titanium and magnesium alloy test components.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Input Parameters | AC Input Power Supply | Three‑phase AC 380V, ±10% tolerance, 50‑60Hz |
| DC Output Parameters | Output Range 1 | 0‑30A, 0‑800V adjustable |
| DC Output Parameters | Output Range 2 | 0‑15A, 0‑300V adjustable |
| DC Output Parameters | Rated Total Output Power | 24kW / 4.5kW (range‑dependent) |
| DC Output Parameters | Voltage Regulation Accuracy | ≤1% |
| DC Output Parameters | Current Regulation Accuracy | ≤1% |
| DC Output Parameters | Ripple Factor | ≤1% |
| Control and Automation Functions | Operating Modes | Constant Current, Constant Voltage, pulse mode |
| Control and Automation Functions | Pulse Settings | Frequency 100‑3000Hz, duty cycle 5‑100% stepless adjustable |
| Control and Automation Functions | Auxiliary Hardware | Local control panel, multi‑range parameter storage, experimental‑data log recorder |
| Control and Automation Functions | Programming Features | Parameter recall, output limit lock, historical alarm storage |
| Physical and Communication Parameters | Cooling Method | Air‑cooled |
| Physical and Communication Parameters | Protection Class | IP20 for indoor laboratory environment |
| Physical and Communication Parameters | Communication Interface | RS485 Modbus RTU |
| Physical and Communication Parameters | Operating Efficiency | Above 86% |
The product comes with a one‑year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp‑up function for current or voltage settings. For time‑sensitive applications, you can use the timed operation mode. Moreover, the multi‑segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute‑level timing function. If you need customization, please contact us for further details.
This dual‑output MAO test rectifier fits university material‑science laboratories, corporate R&D innovation centres and multi‑parameter micro‑arc oxidation research projects. For instance, it completes micro‑arc oxidation treatment for titanium, magnesium and aluminium alloy test coupons under high‑voltage and medium‑voltage working conditions, to analyse coating hardness, corrosion‑resistance and wear‑resistant properties.
Besides, it acts as multi‑mode test‑grade power hardware for research teams developing multi‑variable MAO processing formulas. Apart from conventional specimen processing, it supports cross‑range comparative testing and process‑feasibility assessment, providing valid experimental records for academic research and project iteration.
We specialise in manufacturing multi‑range bench‑top pulse rectifier hardware built for complex variable‑condition MAO laboratory‑research scenarios. Most importantly, every finished unit undergoes dual‑range waveform calibration and full‑load ageing testing before shipment, ensuring stable performance under both 30A 800V and 15A 300V modes through repeated test cycles.
Furthermore, we deliver customisable adjustments for pulse‑parameter boundaries, control‑panel layout and communication protocols to satisfy diverse laboratory research demands. Backed by remote technical guidance and steady spare‑parts supply, we provide reliable rectifier solutions for your multi‑condition lightweight‑alloy surface‑modification research.
