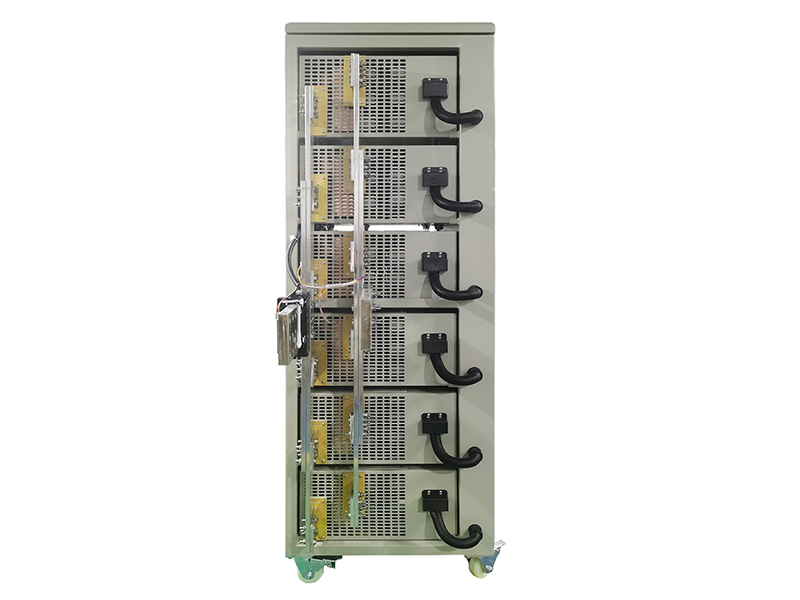

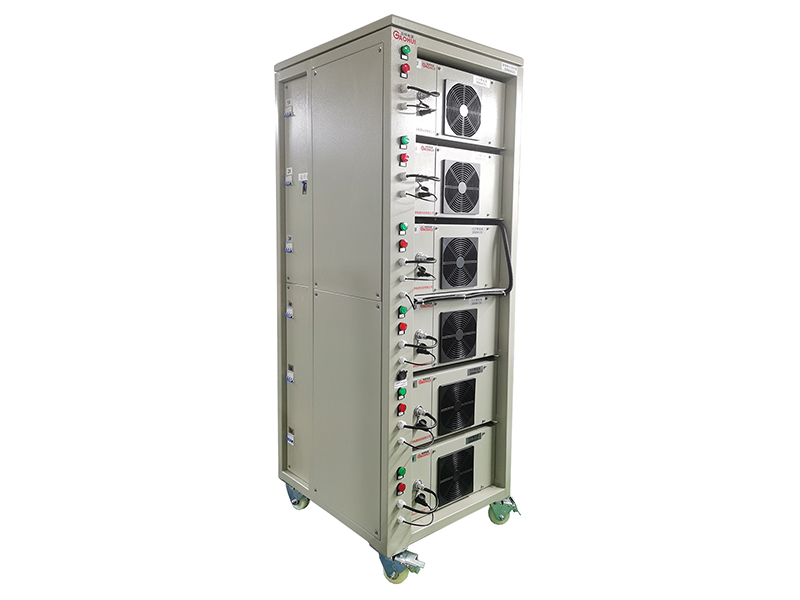

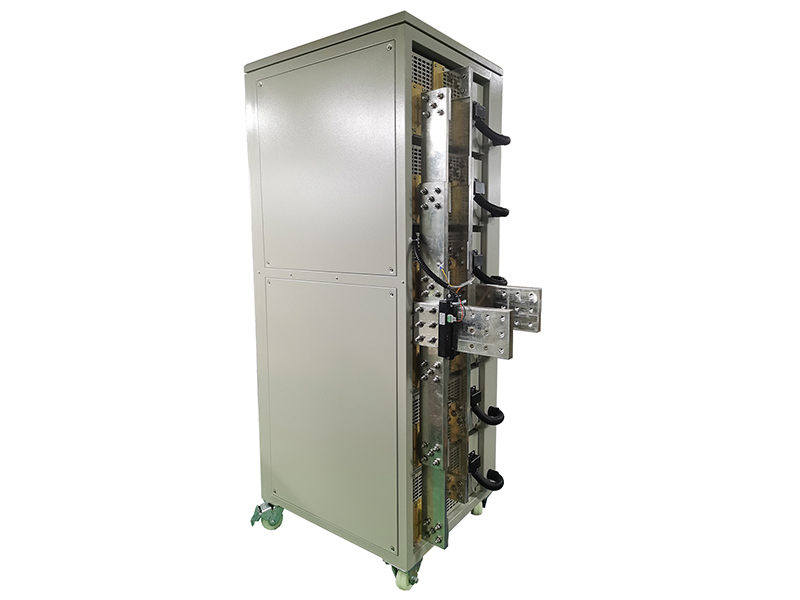

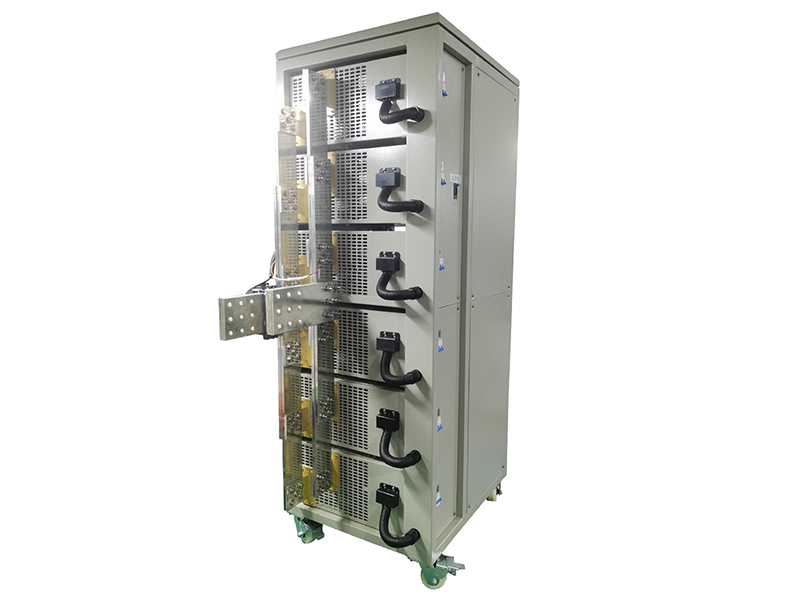

This 12000A 12V decorative chrome rectifier supplies stable 144kW DC power for high‑throughput decorative chrome plating tanks and heavy‑current plating bus systems within industrial finishing facilities.
Gaohui Power Supply designs and manufactures the 12000A 12V Decorative Chrome Rectifier. It targets plating‑line system integrators alongside production‑oriented decorative chrome finishing plant engineers.
When decorative chrome plating handles large‑volume component batches, fluctuating power output tends to trigger inconsistent gloss and raise overall power consumption. As a result, many plant engineers opt for high‑current low‑voltage power supplies. These units achieve mirror‑like uniform chrome deposits while cutting operational expenses.
In most cases, standard rectifier models cannot deliver 12V output paired with 12000A current within a single compact cabinet. Worse still, poor current stability will result in dull surfaces, patchy discoloration and cosmetic defects on finished metal parts.
For this reason, this unit integrates high‑accuracy current control, ultra‑low‑ripple output plus comprehensive short‑circuit safeguards inside an industrial‑grade cabinet. It delivers clean 144kW DC power. Apart from continuous steady‑state operation, it also supports custom programmable voltage‑current curves. Thus it satisfies special startup‑and‑shutdown workflows for decorative chrome plating processes.
This decorative chrome rectifier mainly serves high‑output decorative chrome plating tanks. These tanks process automotive trim pieces, bathroom sanitary hardware, metal furniture fittings and various ornamental metal components.
Furthermore, its 0‑12V adjustable output lets operators fine‑tune working voltage in response to bath temperature shifts, chromic acid concentration and total workpiece surface area. It optimizes surface gloss and current efficiency under diverse production conditions. Meanwhile, built‑in over‑current and short‑circuit monitoring circuits track low‑voltage high‑current output status in real‑time. So they safeguard both site personnel and production hardware.
Adopting advanced IGBT conversion hardware paired with soft‑switching topology, this decorative chrome rectifier achieves system efficiency higher than ninety‑five percent. Running continuously under full‑load 12000A‑12V conditions, its refined dual‑loop cooling architecture dissipates heat from power semiconductors as well as magnetic assemblies. Stable cabinet temperature can be maintained even during non‑stop long‑run plating production cycles. Reliable high‑current output ensures homogeneous current distribution across numerous medium‑and‑small‑size workpieces submerged in plating tanks, greatly mitigating uneven gloss issues and reducing post‑production rework workload.
Even facing abrupt load variations caused by hanging new workpieces or plating bath parameter drift, its high‑precision current control loop stabilizes output within one‑percent tolerance. Workpieces inside chrome plating bath obtain consistent current density over the whole surface, avoiding partial dim‑plating or insufficient chrome layer thickness. Multi‑segment programmable functions enable operators to set graded current ramp‑up and voltage‑limiting parameters during plating initialization phase, preventing workpiece surface burn‑off in this critical process stage.
Every unit is manufactured with anti‑corrosive cabinet treatment and isolated signal sensing circuits. The rectifier complies with strict industrial safety specifications for plating‑related DC power equipment, and maintains dependable performance under humid, acid‑vapor‑laden plating workshop conditions. This process‑driven design eases compliance‑related workload for system integrators and curtails long‑term equipment failure risks for plating‑plant operators.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Input Parameters | AC Input Power Supply | Three‑phase AC 380V, ±10% tolerance, 50‑60Hz |
| DC Output Parameters | Output Voltage Range | Zero to 12V adjustable |
| DC Output Parameters | Output Current Range | Zero to 12000A adjustable |
| DC Output Parameters | Rated Output Power | 144kW |
| DC Output Parameters | Voltage Regulation Accuracy | Within one percent |
| DC Output Parameters | Current Regulation Accuracy | Within one percent |
| DC Output Parameters | Ripple Factor | Within one percent |
| Control and Automation Functions | Operation Modes | Constant Voltage, Constant Current |
| Control and Automation Functions | Auxiliary Control Devices | Digital ampere‑hour meter, programmable timer, multi‑stage ramp‑up |
| Control and Automation Functions | Programming Functions | Programmable voltage‑current ramp, multi‑segment parameter setting |
| Physical and Communication Parameters | Cooling Mode | Air‑cooled with dual‑loop forced airflow |
| Physical and Communication Parameters | Protection Grade | IP21 for indoor plating workshop application |
| Physical and Communication Parameters | Communication Protocol | RS485 Modbus RTU |
| Physical and Communication Parameters | Working Efficiency | Above ninety‑five percent |
We can provide:
This rectifier comes with one‑year warranty and expected service life surpassing 10 years. Anti‑corrosion cabinet finishing and short‑circuit detection functions are supplied as standard configurations. Soft‑switching IGBT topology and isolated high‑current sensing modules are integrated on every finished unit. RS485 communication together with complete over‑voltage and over‑current protection are pre‑installed across all models. Please share your decorative chrome plating tank requirements, and we will deliver customized power‑supply solutions.
Suited for high‑volume industrial decorative chrome plating production built upon high‑current low‑voltage DC power distribution frameworks. Primarily deployed as core power source for large decorative chrome plating tanks processing automotive trim, sanitary‑ware products, hardware fittings and ornamental metal parts within mass‑production finishing plants.
Surface‑treatment factories, automotive component manufacturers and sanitary‑hardware producers deploy this equipment for large‑scale decorative chrome plating lines, where steady high‑current output is critical for premium surface finishes. Its 12000A rated output allows plant engineers to process large workpiece quantities in single plating tanks with evenly distributed current density.
It fits shared plating bus architectures where multiple rectifier devices feed a common bus to drive several independent plating tanks. Thanks to precise current regulation, multiple units can run in parallel on same bus without circulating‑current troubles. Besides, it serves as high‑power reference power source for decorative chrome plating process validation and new plating‑solution research work.
Gaohui Power Supply develops tailor‑made Decorative Chrome Rectifier products for plating‑line integrators and high‑volume surface‑treatment plant operators. Our core competitive strength lies in rich engineering know‑how for plating‑process power supplies. Our engineering team modifies voltage‑current output ranges, adjusts cabinet anti‑corrosion grades and customizes control logics to match your individual chrome plating tank setup and plant bus‑distribution system.
All units pass CE safety assessment under ISO 9001 quality‑management standards. Each completed 12000A 12V rectifier undergoes 100% continuous full‑load ageing test plus current‑stability and short‑circuit validation prior to shipment. Customers receive hardware verified for stable, secure operation in harsh corrosive plating‑plant environments.
Our full‑lifecycle service package includes remote commissioning guidance, on‑site operational training and spare‑parts supply support. When you expand plating‑line capacity or upgrade decorative chrome plating technologies, our technical team can reconfigure voltage‑current parameters without full hardware replacement. Count on Gaohui Power Supply for secure, high‑efficiency decorative chrome rectifier solutions for your large‑scale projects.
