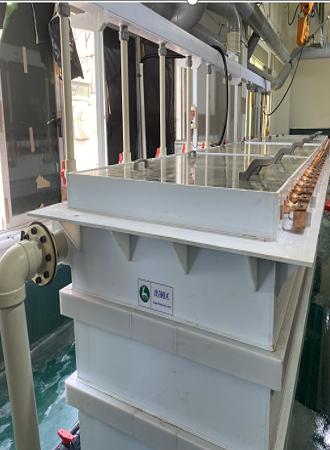

We design the cyclone electrolysis system as professional equipment for efficient and environmentally friendly copper extraction. Moreover, it optimizes the flow field and electrochemical conditions to achieve high-purity copper recovery and green production.
The system’s core principle relies on high-speed electrolyte rotation. Specifically, high-speed electrolyte rotation creates a vortex flow field, which enhances the mass transfer process, reduces concentration polarization, and improves the reduction efficiency of copper ions.
We typically use a copper sulfate solution (10–60 g/L) as the electrolyte. We also add gelatin to this solution to improve the morphology of the copper crystals at the cathode.
The cyclone electrolysis system has a scientific and reasonable structure. A titanium-based coating is selected for the anode, while stainless steel or titanium serves as the primary material for the cathode. Inside the tank, a spiral guide plate (25–30° angle) is fitted to control the flow field.
We maintain the electrolyte flow rate at 0.8–1.2 m/s, which accelerates ion migration through turbulence. This design gives the system obvious advantages over traditional electrolysis equipment.

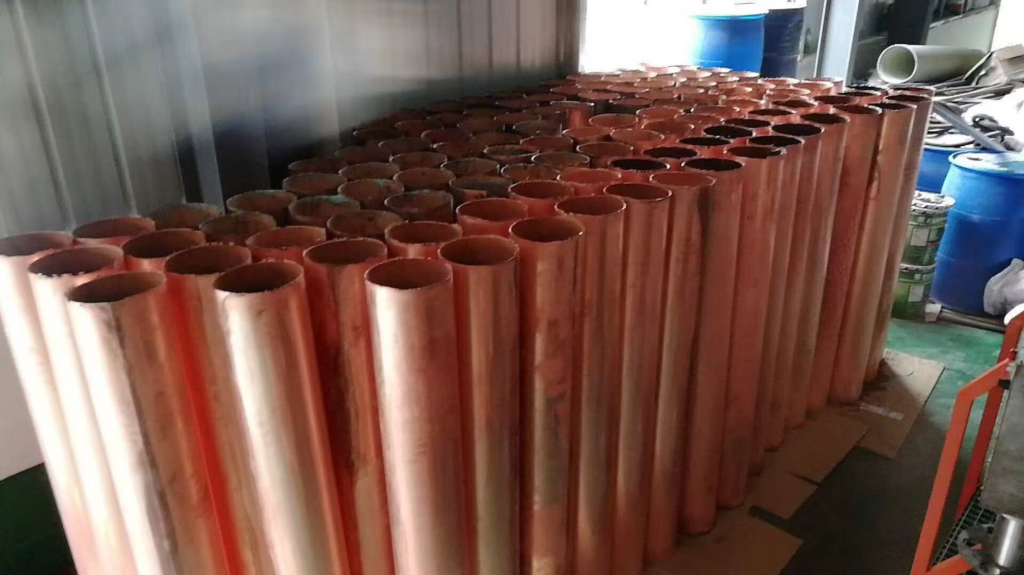

Its current efficiency increases by over 40%, and it can produce cathode copper with a purity of 99.97%. It also suits the processing of complex impurity-containing raw materials (such as arsenic); multi-stage series connection can reduce arsenic content to below 8 ppm, achieving both efficient copper recovery and environmental protection.
The cyclone electrolysis system adopts advanced vortex flow field technology, which effectively improves electrolysis efficiency and product quality. Its unique spiral guide plate design stably controls the flow field, ensuring uniform ion migration and reducing concentration polarization.
We use a titanium-based anode and stainless steel/titanium cathode to enhance equipment durability and service life. The system can also handle complex raw materials, solving the problem of impurity interference in traditional electrolysis.
It has a dedicated wastewater discharge function; we treat the wastewater to meet environmental standards, allowing safe discharge and environmental protection. Additionally, it turns copper-containing waste into valuable resources, bringing economic benefits while achieving green production.
Overall, the system balances efficiency, quality and environmental protection, making it an ideal choice for modern copper extraction and refining.
| Equipment Model | Number of Cyclone Electrolytic Cells | Application Scope |
|---|---|---|
| GHPS-XL1 | 1 cyclone electrolytic cell | Small-scale copper recovery, laboratory research or small workshop use |
| GHPS-XL5 | 5 cyclone electrolytic cells | Medium-small scale production, small-batch copper refining and wastewater recovery |
| GHPS-XL10 | 10 cyclone electrolytic cells | Medium-scale production, industrial copper recovery and impurity-containing raw material processing |
| GHPS-XL20 | 20 cyclone electrolytic cells | Large-scale industrial production, high-volume copper refining and wastewater treatment |

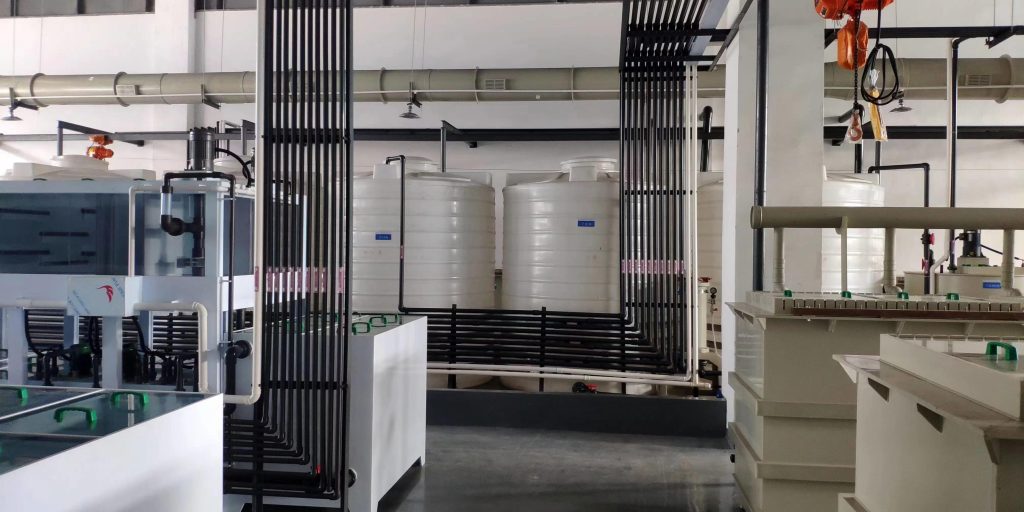

The cyclone electrolysis system is widely used in copper extraction and resource recycling fields. Specifically, we mainly use it for copper electrolytic refining, copper-containing wastewater recovery, and low-grade mineral resource utilization.
It also suits enterprises that need to handle impurity-containing raw materials (such as arsenic-containing materials) and pursue green production. Whether for small-batch laboratory research or large-scale industrial production, its flexible models and stable performance can meet actual user needs.
We focus on R&D and manufacturing of professional cyclone electrolysis equipment, with rich experience in copper recovery and environmental protection technology. Each system undergoes strict quality testing and performance tests before delivery to ensure long-term stable operation.
Professional technical support and after-sales service are also provided to solve installation, operation and maintenance problems for users. In conclusion, with high efficiency, high purity, strong adaptability and environmental friendliness, our cyclone electrolysis system is a trusted choice for enterprises to realize efficient copper recovery and green production.
