Output 0-12V DC 0-500A Adjustable
Power 6kW
Application Continuous Electroplating Processes
Best For Wire Plating Strip Processing High-Volume Components Reel-to-Reel Systems

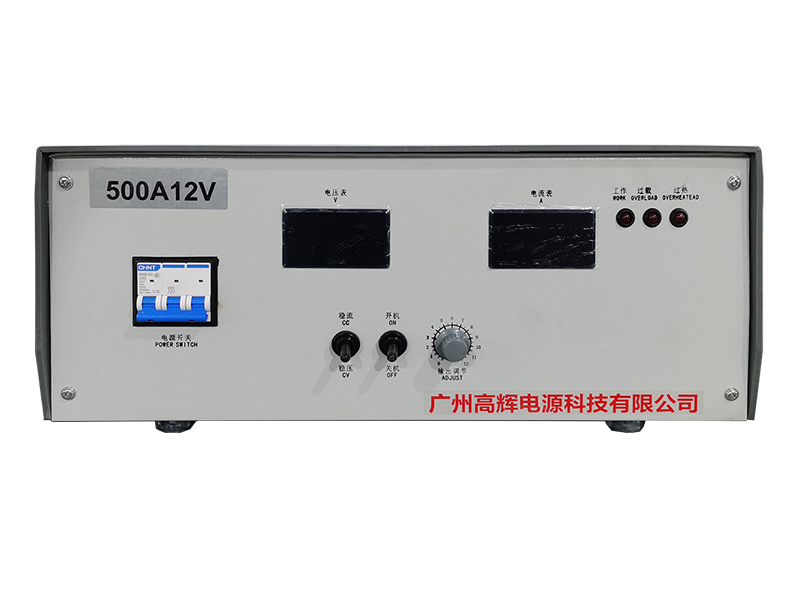

This specialized continuous plating rectifier delivers 500A at 12V for non-stop production environments. Designed specifically for wire, strip, and high-volume continuous plating applications, this air-cooled rectifier ensures the stable, reliable power essential for uninterrupted manufacturing operations.
Parameter Specification
Input Power 380VAC Three-Phase
DC Output 0-12V DC 0-500A
Voltage Stability ≤ 0.8%
Current Stability ≤ 1.2%
Ripple Coefficient ≤ 3%
Control Interface Industrial HMI with Process Programming
Special Features Speed Synchronization Production Counter Tension Compensation
Cooling System Heavy-Duty Air Cooling with Temperature Control
Protections OCP OVP OTP Web Break Detection Speed Fault Protection
Non-Stop Operation Capability
This continuous plating rectifier supports 24/7 production. Consequently, it eliminates downtime between batches. Moreover, it maintains consistent power during material transitions.
High-Speed Synchronization
The system coordinates with line speed automatically. Therefore, plating thickness remains constant. Additionally, it adjusts to speed variations seamlessly.
Production Optimization
Integrated counters track production metrics. Specifically, they monitor length, area, and throughput. Thus, process efficiency is continuously measured.
Robust Design
The air-cooled system requires minimal maintenance. Furthermore, it operates reliably in industrial environments. Consequently, operational costs are controlled effectively.
This rectifier serves industries where continuous plating processes are essential for productivity.
In Wire Plating Operations
The continuous plating rectifier processes copper, steel, and specialty wires. Importantly, it maintains consistent coating during high-speed production. Additionally, it handles various diameters without interruption.
For Strip and Band Processing
It plates metal strips for electronics and construction. Similarly, the stable power ensures uniform deposits across widths. Consequently, product quality meets industry standards.
In Reel-to-Reel Systems
The rectifier supports continuous web processing. Ultimately, it enables efficient plating of flexible circuits and components. Therefore, production costs are reduced through automation.
For High-Volume Component Plating
It processes small parts in continuous barrels or racks. Specifically, the system maintains stable current during loading cycles. Thus, throughput is maximized without quality compromise.
This industrial continuous plating rectifier provides substantial advantages for automated production.
Production efficiency increases dramatically with continuous operation. Moreover, the system eliminates batch changeover time. Consequently, equipment utilization approaches maximum potential.
Material consistency improves through stable power delivery. Furthermore, the speed synchronization maintains coating uniformity. Therefore, product specifications are consistently achieved.
Energy efficiency is optimized through intelligent control. Additionally, the air-cooled design reduces auxiliary power requirements. Thus, operating costs remain competitive in continuous operations.
Maintenance scheduling becomes predictable with robust construction. Specifically, the system design minimizes wear components. Consequently, unexpected downtime is significantly reduced.
In summary, this 500A continuous plating rectifier represents advanced production technology. For this reason, it serves as an essential component in manufacturing operations where uninterrupted production, consistent quality, and high throughput are critical requirements for competitive success in the plating industry.
