Output: 10V / 5000A DC with reversal
Technology: IGBT automatic periodic polarity reversal
Cooling: Air cooled with multiple redundant fans
Control: Digital programmable ±1%
Current: 5000A for mega scale plating
Duty: 24/7 continuous
Applications: Ultra high volume plating, largest automotive lines, mega scale PCB manufacturing

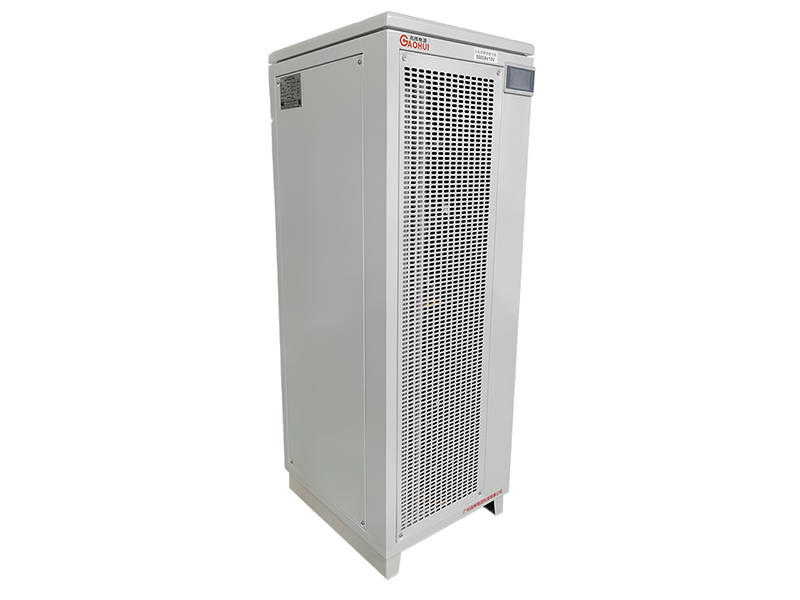

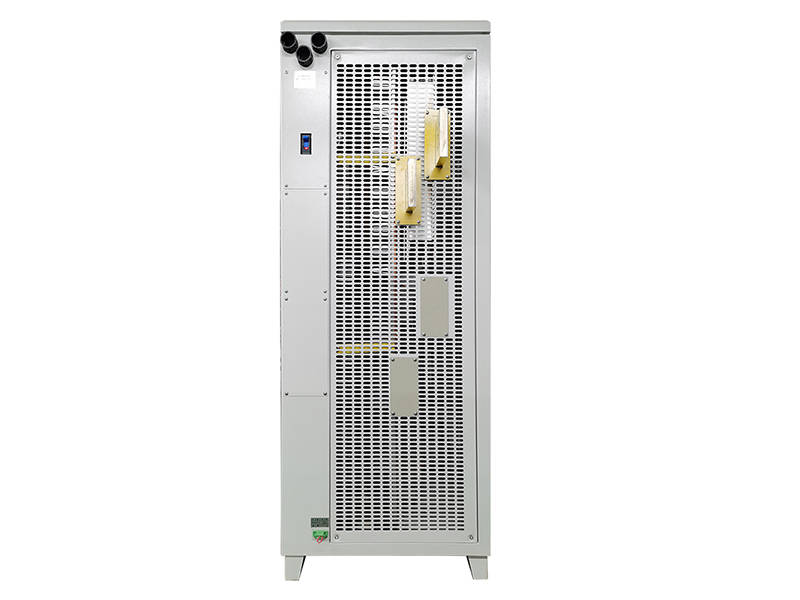

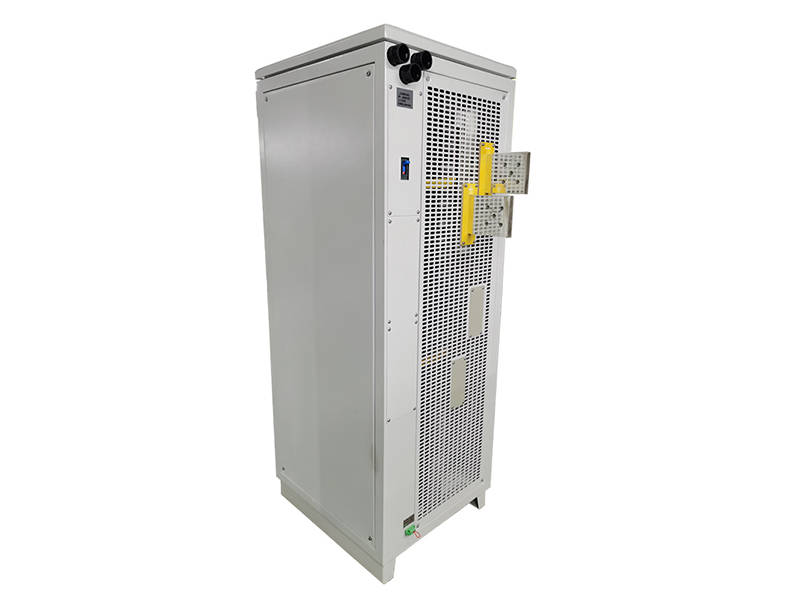

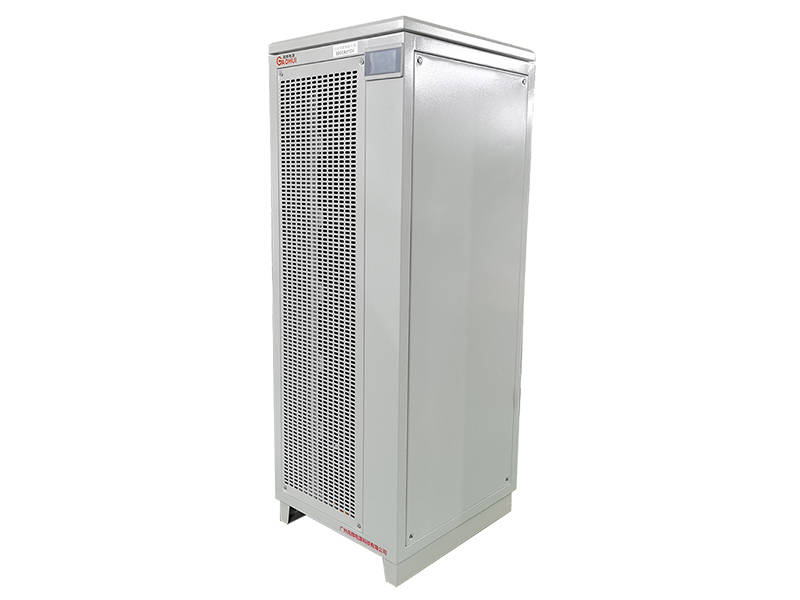

This 5000A 10V air cooled automatic periodic polarity reversal rectifier provides ultra high current DC with programmable reverse pulse capability for enormous scale electroplating operations. It is specifically engineered for mega volume production facilities requiring superior deposit quality and reduced material consumption at industrial scale. Consequently, this rectifier enables enhanced surface finish, improved throwing power, and optimized process efficiency for the most demanding high volume plating applications.
This automatic periodic polarity reversal rectifier utilizes sophisticated IGBT switching technology to generate precise reverse pulse waveforms at 5000A output. Therefore, it provides independent control over forward and reverse current parameters for optimized plating results at enormous scale. Moreover, the automatic reversal function allows programming of complex cycles tailored to specific plating chemistries and high volume requirements. Additionally, digital controls enable storage and recall of multiple plating programs for different production demands.
This automatic periodic polarity reversal rectifier is specifically optimized for the largest plating operations requiring consistent quality at ultra high production rates. The 5000A capacity supports enormous plating tanks and mega volume work loads. Consequently, it delivers superior deposit characteristics while maintaining production efficiency and reducing material costs at industrial scale.
Mega automotive plating lines use this rectifier for ultra high volume chrome and nickel finishing. Largest industrial hard chrome facilities employ it for massive build applications on enormous components. Continuous coil plating operations at maximum scale utilize it for uniform coating on metal strips at highest speeds. Major PCB manufacturers apply it for through-hole plating and via filling in mega volume production. Largest precious metal platers use it for fine-grained deposits with minimal material usage at scale.
Periodic reverse pulses at 5000A dissolve high points and nodules for smoother deposits across enormous surface areas. Controlled anodic cycles improve grain refinement and reduce internal stress in mega volume production. Polarity reversal enhances throwing power in complex geometries consistently at scale. These capabilities result in superior surface quality and dramatically reduced material consumption at industrial scales.
Precise timing control enables optimization for specific electrolyte chemistries and part geometries at scale. Adjustable reversal frequency allows tailoring of deposit characteristics for different ultra high volume requirements. Programmable forward/reverse ratios control thickness distribution across enormous parts. Consistent reversal cycles ensure repeatable results across mega volume production runs.
The forced air system features multiple redundant fans to ensure continuous cooling at full 5000A output. Therefore, thermal performance remains reliable in the most demanding ultra high-current applications without water cooling complexity. Maintenance can be performed on individual fans without production interruption. The air cooled design eliminates water treatment chemicals, piping, and cooling towers entirely.
Heavy duty industrial grade components ensure dependable performance year after year at full 5000A output. Comprehensive thermal monitoring protects against overtemperature conditions during peak production periods. This automatic periodic polarity reversal rectifier is engineered for 24/7 continuous operation in the most demanding plating environments.
The ultra high-efficiency design minimizes electrical losses at 5000A output. Consequently, operational costs are optimized for continuous mega volume plating processes. Reduced heat generation also lowers facility cooling requirements and improves working conditions.
