Alkaline Copper Plating Rectifier Product Introduction

As the core equipment for industrial electrolysis, the Alkaline Copper Plating Rectifier converts grid three-phase AC power into stable, adjustable DC power. We prioritize custom solutions to address common industry pain points: unstable output, poor adaptability to different electrolysis processes, and high energy consumption. From small-batch laboratory tests to large-scale continuous production, the Alkaline Copper Plating Rectifier can be fully customized to match specific process requirements, ensuring seamless integration with existing production systems and driving operational efficiency.

Alkaline Copper Plating Rectifier Core Selling Points

• Custom-Made Core: Tailor parameters, size, and functions to match unique electrolysis process requirements.
• High Stability: Adopt advanced IGBT technology and strict quality control to ensure reliable 24/7 operation.
• High Precision: Maintain ≤±1% control accuracy to guarantee uniform electrolysis reactions.
• Energy Efficiency: Boast over 96% conversion efficiency to reduce long-term operational costs.
• Comprehensive Protection: Integrate overcurrent, overvoltage, and overheat protection to safeguard equipment.

Alkaline Copper Plating Rectifier Product Advantages

First and foremost, the Alkaline Copper Plating Rectifier takes custom production as its core, allowing us to adjust voltage, current, and cooling methods based on user needs. We adopt advanced IGBT high-frequency technology and imported core components to lay a solid foundation for stable performance. Strict quality control runs through every production link, from component selection to assembly testing, ensuring each Alkaline Copper Plating Rectifier meets industrial-grade reliability standards. Its compact modular design simplifies transportation and installation, while the optimized circuit layout reduces energy loss and enhances response speed. We also integrate comprehensive protection mechanisms to avoid equipment damage and ensure consistent operation even in harsh industrial environments. Additionally, the Alkaline Copper Plating Rectifier supports flexible integration with various production lines, adapting to different electrolysis processes and workpiece specifications.sistent product quality. Last but not least, comprehensive protection mechanisms prevent equipment damage and extend service life.

Performance Specifications

Electrolysis Power Supply Model Selection (Air/Water-Cooled Customizable)
Model	Output Current (A)	Output Voltage (V)	Power (kW)	Input Current (A)	Input Voltage (V)	Weight (kg)	W×L×H (mm)
DJ5036	50	36	1.8	8.2	220	10	270×380×160
DJ10024	100	24	2.4	10.9	220	17	420×420×170
DJ50015	500	15	7.5	11.4	380	27	450×480×210
DJ75024	750	24	18	27.3	380	76	510×580×690
DJ100015	1000	15	15	22.8	380	45	520×570×290
DJ100048	1000	48	48	72.9	380	78	510×580×690
DJ18009	1800	9	16.2	27.5	380	69	540×740×290
DJ30006	3000	6	18	27.3	380	110	510×580×690
DJ300012	3000	12	36	54.7	380	120	510×580×690
DJ300018	3000	18	54	82	380	150	510×580×690
DJ300024	3000	24	72	109.4	380	180	510×580×690
DJ300060	3000	60	180	273.5	380	230	510×580×1160
DJ50006	5000	6	30	45.6	380	150	510×580×1160
DJ500012	5000	12	60	91.2	380	160	510×580×1160
DJ500018	5000	18	90	136.7	380	180	510×580×1160
DJ500060	5000	60	300	455.8	380	255	510×580×1620
DJ60006	6000	6	36	54.7	380	165	510×580×1160
DJ600012	6000	12	72	109.4	380	175	510×580×1160
DJ600018	6000	18	108	164.1	380	190	510×580×1160
DJ600060	6000	60	360	547	380	280	510×580×1620
DJ80006	8000	6	48	72.9	380	300	510×580×1620
DJ800012	8000	12	96	145.9	380	320	510×580×1620
DJ800018	8000	18	144	218.8	380	350	700×900×1780
DJ800060	8000	60	480	729.3	380	450	700×900×1780
DJ100006	10000	6	60	91.2	380	500	700×900×1780
DJ1000012	10000	12	120	182.3	380	530	700×900×1780
DJ1000018	10000	18	180	273.5	380	580	700×900×1780
DJ1000060	10000	60	600	911.6	380	657	700×900×1780

Applications of Standard Electrolysis Power Supply

This series of rectifiers is widely applicable to various electrolysis scenarios, including electrolytic stripping (e.g., electronic parts stripping, circuit board stripping, paper/fiber/scrap stripping), electrolytic metal recovery, gold/silver refining, copper extraction, electrodeposition, electrolytic nickel plating, electrolytic smelting, and degreasing, etc.

Electrolytic Plasma Polishing (Air-Cooled)
Model	Output Current (A)	Output Voltage (V)	Power (kW)	Input Current (A)	Input Voltage (V)	Weight (kg)	W×L×H (mm)
PG20350	20	350	7	10.6	380	25	320×450×160
PG30350	30	350	10.5	16	380	28	455×585×270
PG45350	45	350	15.7	238.5	380	30	460×500×290
PG70350	70	350	24.5	37.2	380	78	510×580×790
PG80350	80	350	28	42.5	380	83	510×580×790
PG200350	200	350	70	106.4	380	167	510×580×1170
PG10020	100	20	2	9.1	220	9	275×420×170
PG15036	150	36	5.4	24.5	220	36	450×550×230
PG20012	200	12	2.4	10.9	220	20	420×420×170
PG20036	200	36	7.2	10.9	380	36	450×550×230
PG30020	300	20	6	9.11	380	20	420×420×170
PG100024	1000	24	24	36.5	380	54	540×740×290
PG300018	3000	18	54	82	380	120	510×580×920

Optional Functions for Electrolytic Plasma Polishing Rectifiers

To enhance usability and adaptability, we offer optional functions such as Smart Panel Control, Omron PLC Control, and Mitsubishi PLC (Q Series, FX Series), which can be customized according to specific operational needs.

Customization Support

Customization is available for a wide range of functions, including constant current and constant voltage modes, programmable current or voltage ramp-up times, timed operation, multi-segment constant current/voltage profiles, RS485 communication interfaces, automatic polarity reversal, and ampere-hour timing. For further details, please contact .

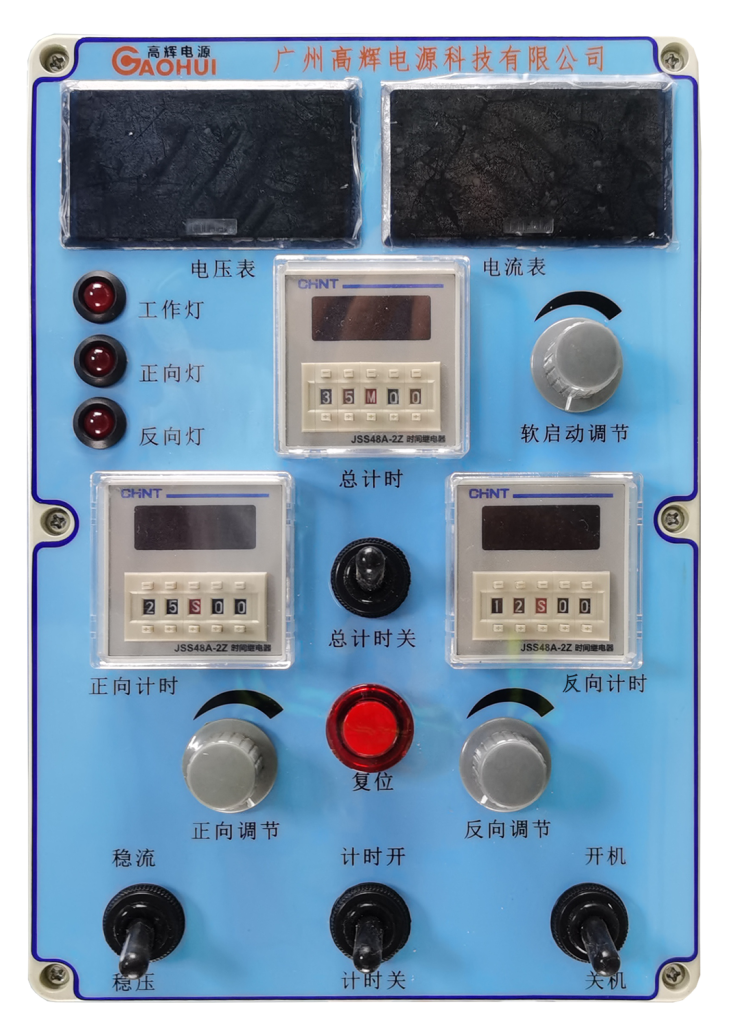

Power Control Operation Panel

1. Voltmeter

Displays real-time output voltage of the power supply, allowing direct monitoring of operating voltage.

2. Ammeter

Displays real-time output current of the power supply, the core parameter for monitoring electrolysis/plating process conditions.

3. Power Indicator

Lights when the power supply is powered on and operating normally.

4. Forward Indicator

Lights when the power supply is outputting forward polarity current.

5. Reverse Indicator

Lights when the power supply is outputting reverse polarity current.

6. Total Timer

Sets the total running time of the process, supporting automatic stop after reaching the set duration.

7. Forward Timer

Sets the duration of forward polarity operation, used for periodic polarity-reversal processes.

8. Reverse Timer

Sets the duration of reverse polarity operation, matching the forward timer to form a complete cycle.

9. Soft Start Adjustment

Adjusts the ramp-up speed of voltage/current at startup, preventing inrush current impact on the load.

10. Forward Adjustment

Fine-tunes the output voltage/current when operating in forward polarity mode.

11. Reverse Adjustment

Fine-tunes the output voltage/current when operating in reverse polarity mode.

12. Reset Button

Clears the timer settings and resets the control panel to its initial state.

13. Constant Current / Constant Voltage Switch

Selects between constant current (CC) or constant voltage (CV) operating modes according to process requirements.

14. Timer On/Off Switch

Enables or disables the automatic timing control function.

15. Power On/Off Switch

Controls the power supply main output, for manual start and stop operations.

Alkaline Copper Plating Rectifier Scope of Application

The Alkaline Copper Plating Rectifier finds wide application across multiple industries. It suits the electrolytic metallurgy industry, providing stable power for metal smelting processes. It also applies to electroplating and surface treatment, ensuring uniform coating quality. For environmental protection projects, the Alkaline Copper Plating Rectifier supports electrolytic water treatment and sewage purification. Additionally, it adapts to laboratory research and medium-to-large industrial production lines, handling high-demand electrolysis tasks with ease. Its customizable design allows it to fit harsh industrial environments, including high-corrosion and high-temperature settings, supporting 24/7 continuous operation.

Why Choose Us

We specialize in R&D and production of custom Alkaline Copper Plating Rectifier solutions, backed by mature factory strength and complete production lines. Our team implements strict quality control, conducting full-load aging tests on every Alkaline Copper Plating Rectifier before delivery to ensure reliability. We offer professional pre-sales consultation to determine the optimal customization plan, along with on-site commissioning and 7×24-hour after-sales support. Our flexible production capacity accommodates both small-batch custom orders and large-scale bulk orders, delivering products on time. We deeply understand user process needs, providing one-stop customization services to ensure the Alkaline Copper Plating Rectifier perfectly fits actual production requirements.
