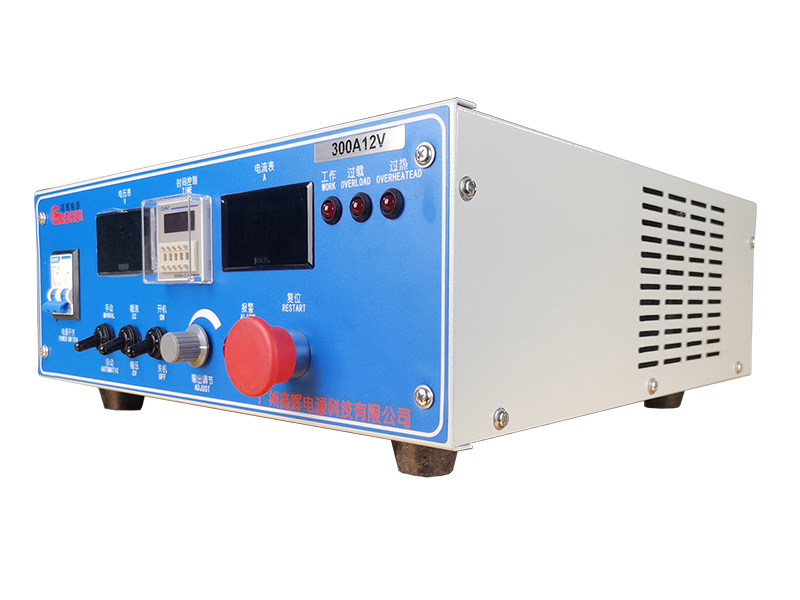

Built for high‑value plating operations, the Air‑Cooled Precious Metal Rectifier supplies steady 300A 12V adjustable DC power. Meanwhile, its fan‑powered cooling removes water‑pipe dependencies, so operators place units freely inside precious‑metal plating workshops.
The Air‑Cooled Precious Metal Rectifier delivers precise DC power conversion for high‑value precious‑metal plating workflows. In contrast to ordinary plating power supplies, precious metal plating demands extremely low output ripple across long batch cycles. Particularly, you will handle costly raw materials, tight thickness tolerances and minor load shifts as workpieces rotate inside plating tanks. Most water‑cooled rectifiers require complete circulating water infrastructure. For this reason, they raise setup costs for small and medium precious‑metal finishing facilities. Unstable power causes uneven coating thickness, spot defects and wasted expensive metal solutions. These mistakes increase material loss and push up overall production expenses.
The Air‑Cooled Precious Metal Rectifier supports full stepless adjustment from 0‑300A current and 0‑12V voltage. It fits power requirements for gold, silver and other precious metal mass plating jobs. Besides, its refined air‑cooled heat dissipation draws away heat during continuous production runs. You do not need any circulating water accessories. Our low‑ripple circuit holds consistent output while workpiece conditions change. It creates uniform plated layers and cuts costly scrap parts. Furthermore, multi‑layer safety safeguards defend hardware against overload, over‑temperature and sudden short‑circuit events during continuous shifts.
‑ Delivers 300A/12V adjustable DC output. Our engineers calibrate it for precious‑metal plating to support uniform high‑quality noble‑metal coating

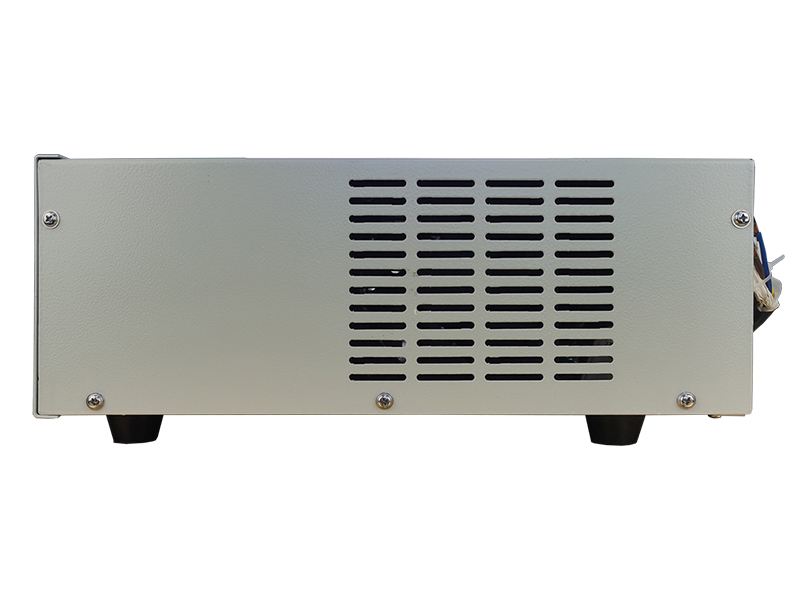

‑ Uses optimized air‑cooled fan cooling. It eliminates water‑cooling reliance and lowers workshop installation spend plus regular maintenance work
‑ Implements ultra‑low‑ripple control logic. It keeps steady current flow and minimises blemishes on high‑value plated components
‑ Supports dual CC/CV working modes. Operators switch modes freely across pre‑treatment, metal deposition and post‑plating stages
‑ Adds industrial‑grade multi‑path safety protection. It absorbs unexpected overload shocks and improves uptime for continuous batch production
‑ Includes reserved RS485 data interface. Users monitor live process data and store records to fine‑tune precious‑metal plating parameters
In fact, many high‑current plating rectifiers adopt water‑cooled layouts. They serve large‑scale production lines with complete circulating water systems. Even so, the Air‑Cooled Precious Metal Rectifier works best for medium‑size finishing plants and pilot precious‑metal plating lines. Plenty of factories run discontinuous batch cycles, and this unit adapts perfectly to such real‑world operating patterns. Our team carries out full‑load and thermal stress tests on every unit before shipment. Therefore, each unit produces repeatable plating results across successive production batches.
Our closed‑loop regulation system corrects tiny output deviations quickly. Workpiece rotation and tank condition changes trigger these small fluctuations. It maintains consistent coating thickness over every workpiece surface. As a result, you produce fewer rejected goods and preserve expensive precious‑metal raw materials. The unit saves multiple sets of plating process parameters. Operators call up proven saved recipes rapidly. This behaviour shortens equipment setup time and lifts overall workshop efficiency.

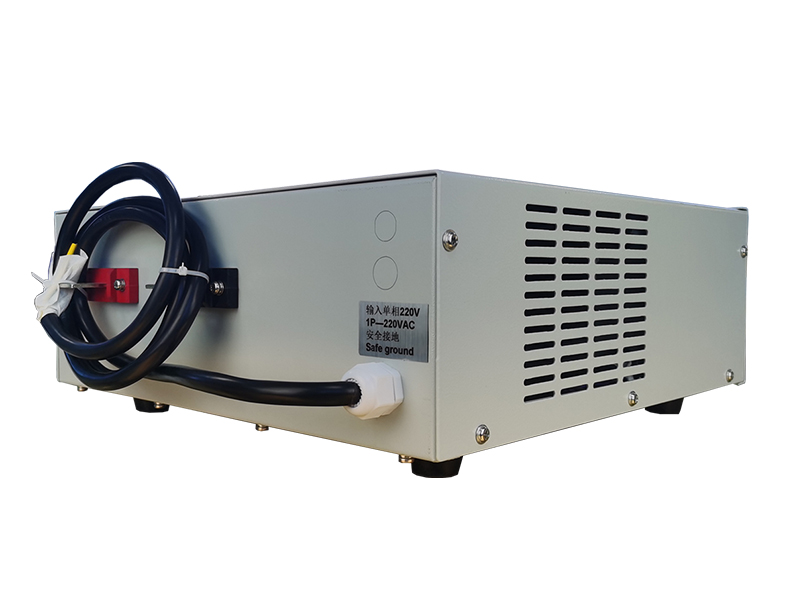

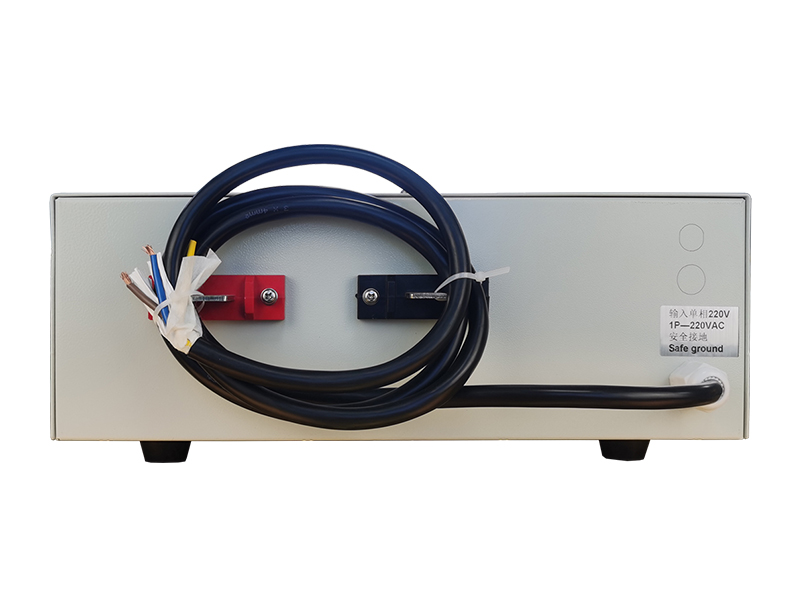

The reinforced integrated cabinet maintains a compact footprint. It simplifies workshop layout and equipment relocation. You avoid complicated water pipe assembly and water quality maintenance tasks. It reduces hardware failure rates noticeably. Meanwhile, it runs steadily for long periods within humid plating‑shop surroundings.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Rated Output | Rated Current | 300A |
| Rated Output | Rated Voltage | 12V |
| Working Mode | Operation Type | Constant Current / Constant Voltage |
| Cooling System | Cooling Method | High‑efficiency Air‑cooled Fan Cooling |
| Input Power | Input Voltage | Three‑phase AC Customized |
| Communication Interface | Data Port | RS485 |
| Safety Protection | Protection Functions | Over‑current, Over‑voltage, Over‑temperature, Short‑circuit, Surge Protection |
| Applicable Scenarios | Main Applications | Gold & silver plating, precious‑metal surface finishing, jewelry plating, batch high‑value component electroplating |
We can provide
We back this rectifier with a 1‑year warranty and design it for over 10 years of service life. It supports constant‑current and constant‑voltage modes. It also offers programmable current and voltage ramp‑up to match gentle precious‑metal deposition workflows. Notably, multi‑segment parameter settings and timing controls enable automatic plating sequence operations. Its built‑in RS485 port lets staff view live data and connect with other workshop equipment. We supply optional polarity reversal and custom function upgrades. These options satisfy special precious‑metal plating process demands. Reach out to us for tailored custom solutions.
The Air‑Cooled Precious Metal Rectifier serves medium‑size finishing factories, jewelry manufacturers and specialist precious‑metal plating workshops. Teams apply it for gold plating, silver plating and surface finishing of high‑value parts. It also supports process testing for new precious‑metal plating formulas.
Likewise, the hardware operates reliably through extended batch cycles and trial production runs. Its low‑ripple DC output delivers consistent plated layers and clean workpiece surfaces. For instance, it cuts material waste and part rejection rates, and accelerates process iteration for custom precious‑metal finished goods.
We build custom power supply solutions for precious‑metal plating scenarios. In contrast to standard general‑purpose electroplating rectifiers, the Air‑Cooled Precious Metal Rectifier gets dedicated tuning for low‑ripple output and humid plating‑shop environments. It brings higher operational stability and environmental adaptability.
Our technicians complete load simulation testing and full‑load ageing checks for every unit before dispatch. This step guarantees reliable real‑world performance during precious‑metal plating operations. We accept non‑standard parameter adjustments and custom feature development. We also offer professional process guidance and full‑cycle after‑sales support. In short, we deliver trustworthy power for your mass‑production and trial precious‑metal plating projects.
