Built for heavy‑deposition metal forming tasks, the Air‑Cooled Electroforming Rectifier outputs stable 500A 12V adjustable DC power. Meanwhile, its fan‑driven cooling setup removes water‑circuit requirements, so operators place units flexibly inside electroforming workshops.
The Air‑Cooled Electroforming Rectifier delivers targeted DC power conversion for industrial electroforming workflows. In contrast to standard plating power supplies, electroforming demands tight current consistency over long production cycles. You will face extended run hours, continuous metal deposition and minor load shifts from part surface changes. Most water‑cooled rectifiers need full plumbing infrastructure. For this reason, they raise installation costs for small‑to‑mid electroforming facilities. Unstable power creates uneven metal layers, rough surface texture and rejected finished parts. These issues cut production throughput and increase raw‑material waste.
The Air‑Cooled Electroforming Rectifier supports full stepless adjustment from 0‑500A current and 0‑12V voltage. It matches power needs for large‑scale nickel, copper and custom metal electroforming jobs. Besides, its optimized air‑cooled heat dissipation pulls away heat during long continuous shifts. You skip all circulating water hardware. Our low‑ripple circuit holds steady output even as workpiece surfaces evolve. It keeps uniform metal deposition and lowers scrap rates. Furthermore, multi‑layer safety features shield hardware from overload, over‑temperature and short‑circuit risks during extended operation.
‑ Delivers 500A/12V adjustable DC output. Our engineers tune it specifically for long‑cycle electroforming to support thick uniform metal deposition
‑ Uses enhanced air‑cooled fan cooling. It removes water‑cooling dependency and cuts workshop setup spend plus routine maintenance tasks
‑ Implements low‑ripple control logic. It maintains consistent current flow and reduces surface defects on electroformed components
‑ Supports dual CC/CV working modes. Operators switch modes freely across pre‑forming, deposition and finishing stages
‑ Adds industrial‑grade multi‑path safety protection. It absorbs sudden overload events and boosts uptime for round‑shift production
‑ Includes reserved RS485 data interface. Users track real‑time process metrics and log data to refine electroforming parameters
Most high‑current forming rectifiers rely on water‑cooled structures. They target large‑scale continuous production lines with complete water supply systems. Even so, the Air‑Cooled Electroforming Rectifier fits mid‑size production workshops and pilot electroforming lines best. Many factories run intermittent batch cycles, and this unit adapts well to that real‑world pattern. Our team runs full‑load and thermal stress tests on every unit before shipment. Therefore, each device delivers repeatable forming quality across many production batches.

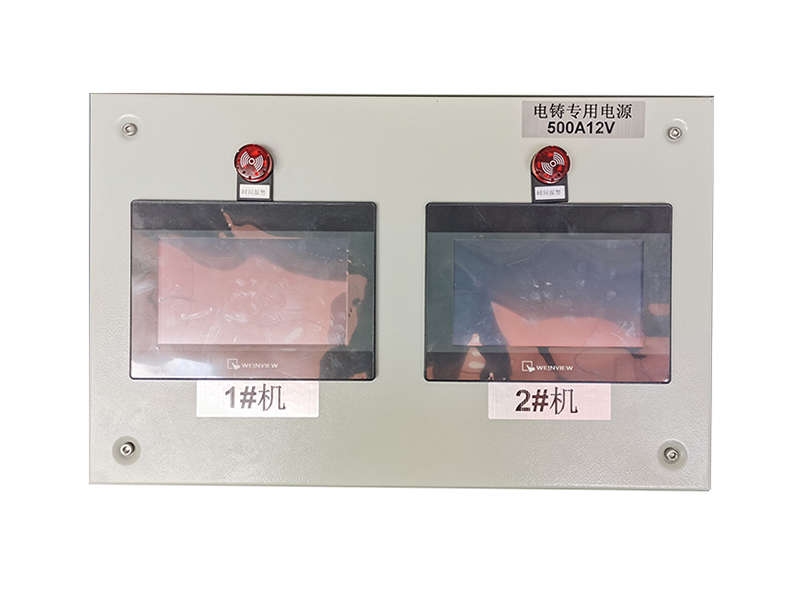

Our closed‑loop regulation system corrects minor output shifts fast. Workpiece surface evolution and tank condition changes create these small deviations. It sustains even deposition thickness across whole part surfaces. As a result, you get fewer defective parts and save valuable metal raw materials. The unit stores multiple groups of forming process parameters. Operators pull saved proven recipes quickly. This action shortens setup cycles and lifts overall workshop efficiency.

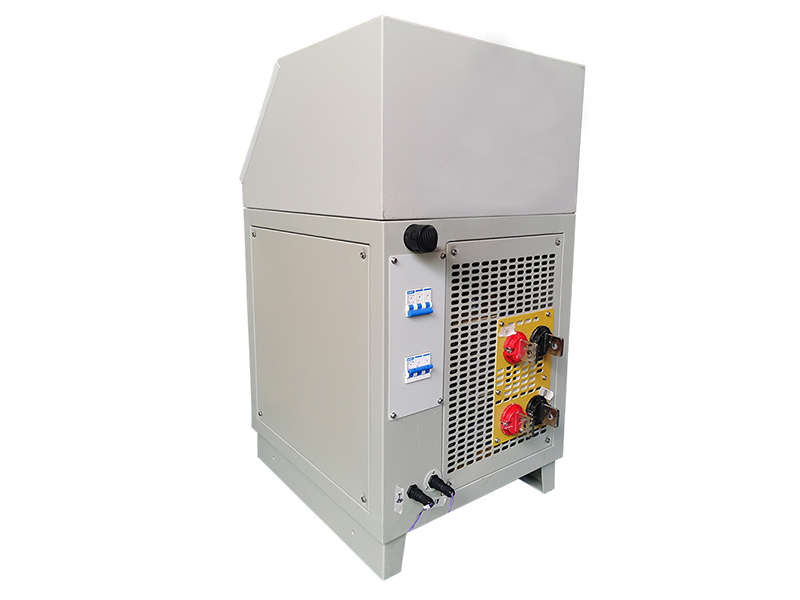

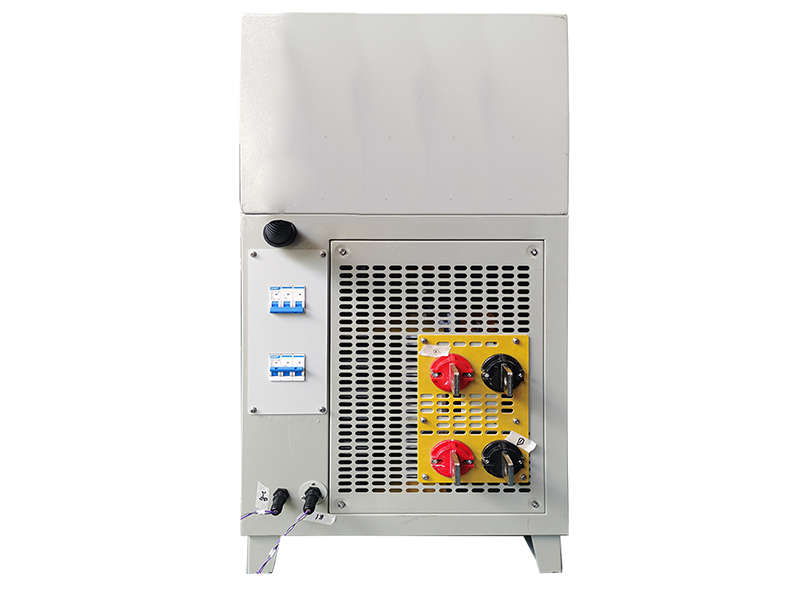

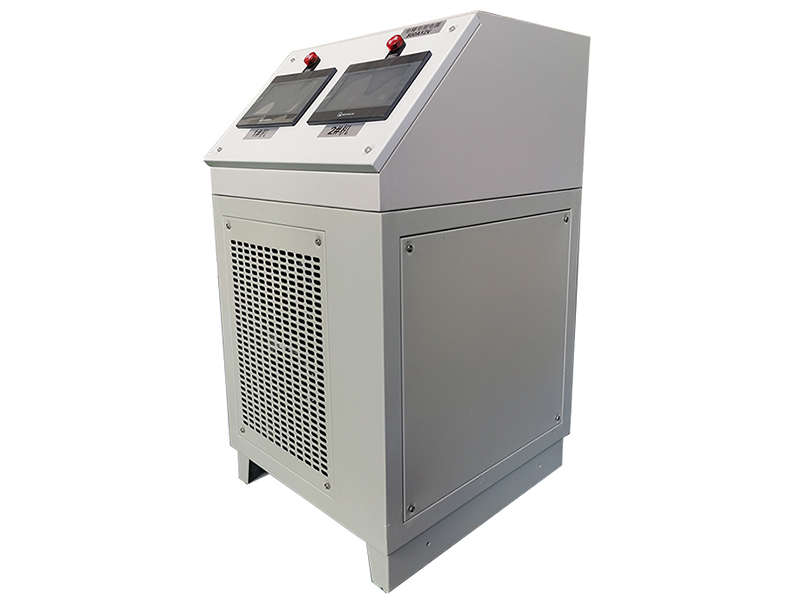

The reinforced integrated cabinet keeps a compact footprint. It simplifies workshop layout and equipment relocation. You skip complex water pipe fitting and water quality upkeep work. It lowers failure rates significantly. Meanwhile, it performs reliably for long stretches inside humid electroforming workshop environments.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Rated Output | Rated Current | 500A |
| Rated Output | Rated Voltage | 12V |
| Working Mode | Operation Type | Constant Current / Constant Voltage |
| Cooling System | Cooling Method | High‑efficiency Air‑cooled Fan Cooling |
| Input Power | Input Voltage | Three‑phase AC Customized |
| Communication Interface | Data Port | RS485 |
| Safety Protection | Protection Functions | Over‑current, Over‑voltage, Over‑temperature, Short‑circuit, Surge Protection |
| Applicable Scenarios | Main Applications | Industrial metal electroforming, nickel‑copper electroforming, precision mold replication, batch electroforming production |
We can provide
We back this rectifier with a 1‑year warranty and design it for over 10 years of service life. It supports constant‑current and constant‑voltage modes. It also features programmable current and voltage ramp‑up to fit gradual metal‑deposition workflows. Notably, multi‑segment parameter settings and timing controls enable automatic forming sequence runs. Its built‑in RS485 port lets staff view live data and link with other workshop equipment. We deliver optional polarity reversal and custom function upgrades. These options match unique electroforming process requirements. Reach out to us for tailored custom solutions.
The Air‑Cooled Electroforming Rectifier serves mid‑size metal fabrication plants, precision mold workshops and specialized electroforming manufacturers. Teams use it for copper and nickel electroforming, mold replication and custom metal component manufacturing. It also supports process validation for new electroforming formulas.
The hardware performs reliably during long‑run batch cycles and pilot production trials. Its low‑ripple DC output sustains even metal deposition and smooth part surfaces. For instance, it cuts material waste and part rejection rates, and speeds up production iterations for custom electroformed goods.
We build custom power supply solutions for electroforming use cases. In contrast to general electroplating rectifiers, the Air‑Cooled Electroforming Rectifier receives targeted tuning for long‑cycle deposition and humid workshop conditions. It delivers stronger operational stability and environmental tolerance.
Our technicians complete load simulation testing and full‑load ageing checks for every unit before dispatch. This step guarantees solid real‑world performance during electroforming operations. We accept non‑standard parameter adjustments and custom feature builds. We also share professional process guidance and full‑cycle after‑sales support. In short, we deliver dependable power for your mass‑production and pilot electroforming projects.
Learn more about related products：6000A 6V Water-Cooled Synchronous Electrodeposition Rectifier
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
