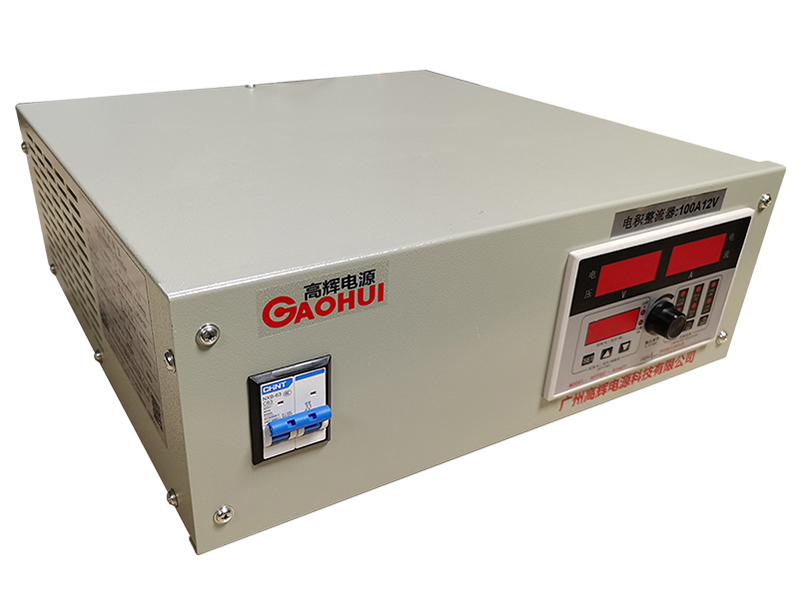

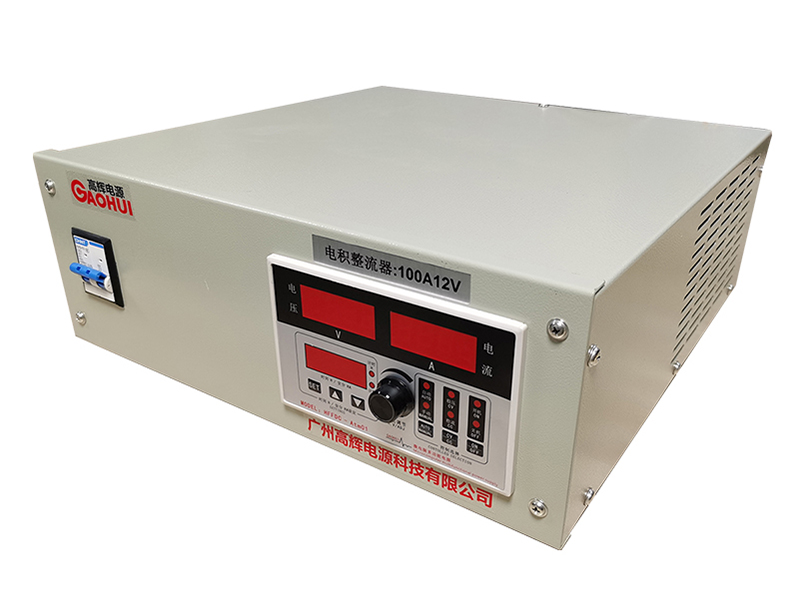

Optimized for metal deposition operations, the Air‑Cooled Electrodeposition Rectifier outputs stable adjustable 100A 12V DC. Furthermore, its air‑cooled fan structure eliminates water‑cooling setups for straightforward workshop installation.
The Air‑Cooled Electrodeposition Rectifier is a high‑current regulated power unit built for routine industrial electrodeposition work. In particular, many plating facilities need dependable DC power for medium‑volume metal coating production. However, low‑grade power hardware often produces unstable output under continuous operating cycles. Meanwhile, water‑cooled rectifiers demand extra pipeline layout and regular maintenance work. Even small output fluctuations can trigger uneven layer thickness and raise workpiece reject rates. For this reason, the Air‑Cooled Electrodeposition Rectifier delivers a practical solution for cost‑effective daily plating production.
This Air‑Cooled Electrodeposition Rectifier supports seamless stepless adjustment from 0‑100A and 0‑12V. In addition, it matches common parameter ranges for nickel, copper and other standard electrodeposition processes. It adopts fan‑driven air‑cooled thermal design. As a result, users can place the unit on workshop benches without complex water circulation accessories. Optimized high‑frequency conversion holds output ripple to a minimum. Moreover, this clean waveform helps form uniform metal deposits on various substrate surfaces. Real‑time closed‑loop regulation stabilizes performance amid changing load conditions. Besides, comprehensive multi‑level protection protects equipment against over‑current, over‑voltage and short‑circuit caused by operator error.
Numerous industrial rectifier models rely on water‑cooling for heavy‑load production lines. In contrast, this Air‑Cooled Electrodeposition Rectifier focuses on medium‑output, convenient‑maintenance plating scenarios. It sustains stable conversion efficiency through frequent start‑stop operation cycles. In fact, this is the typical working mode for job‑shop electroplating plants. Every unit undergoes full‑load ageing and ripple performance testing before shipment. Accordingly, operators gain consistent electrodeposition results across different production batches.
Dynamic closed‑loop feedback offsets minor output shifts brought by electrolyte temperature variation or changing workpiece surface area. As a result, metal deposition speed stays predictable and part reject rates decrease. Multiple sets of production parameters can be stored locally. Furthermore, staff can rapidly recall saved settings and cut down parameter debugging time.
Its robust compact cabinet fits standard workshop bench layouts. Without cooling‑water auxiliary hardware, daily maintenance workload reduces greatly. For these reasons, this Air‑Cooled Electrodeposition Rectifier fits both new finishing‑station construction and existing production‑line equipment upgrades.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Rated Output | Rated Current | 100A |
| Rated Voltage | 12V | |
| Working Mode | Operation Type | Constant Current / Constant Voltage |
| Cooling System | Cooling Method | Air‑cooled Fan Cooling |

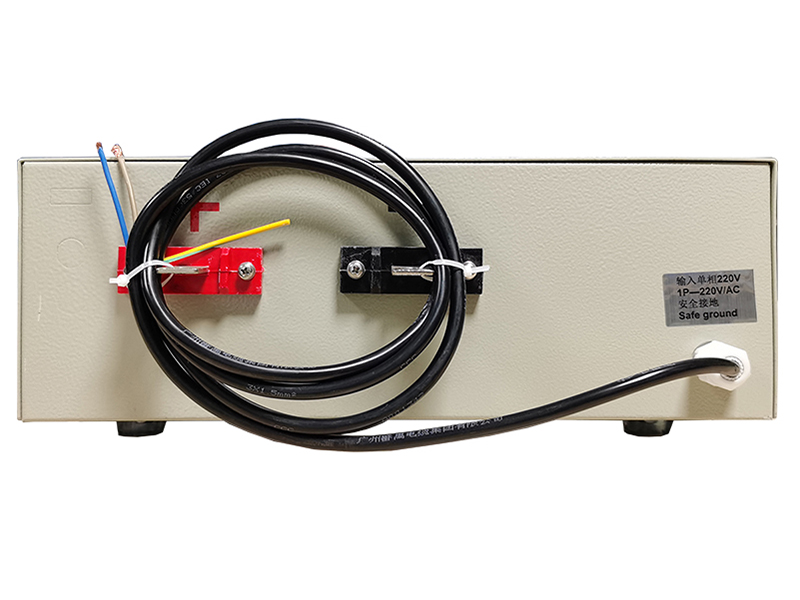

| Input Power | Input Voltage | AC 220V Single‑phase |
| Communication Interface | Data Port | RS485 |
| Safety Protection | Protection Functions | Over‑current, Over‑voltage, Over‑temperature, Short‑circuit Protection |
| Applicable Scenarios | Main Applications | Industrial electrodeposition, general metal electroplating, medium‑batch surface finishing, plating‑process trial testing |
We can provide: The product comes with a one‑year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp‑up function for current or voltage settings. For time‑sensitive applications, you can use the timed operation mode. Moreover, the multi‑segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute‑level timing function. If you need customization, please contact us for further details.
This Air‑Cooled Electrodeposition Rectifier is widely deployed in electroplating workshops, hardware‑finishing factories and surface‑treatment R&D departments. Production teams use it for copper plating, nickel plating and various functional metal‑deposition processes. In addition, it supports formula verification trials for new plating solutions.
It runs steadily for continuous medium‑batch production as well as laboratory process exploration. Meanwhile, its stable adjustable DC output helps operators keep coating quality under control. Thus, factories can lower raw‑material waste and accelerate process optimization work.
We design practical power supplies for mainstream electrodeposition manufacturing workflows. Unlike bulky water‑cooled industrial rectifiers, our Air‑Cooled Electrodeposition Rectifier delivers user‑friendly bench‑top performance for daily plating operations.
Each unit passes waveform calibration and full‑load ageing tests before dispatch. In addition, custom modifications for output parameters and auxiliary features are available upon request. Supported by process‑oriented technical guidance and complete after‑sales service, we supply reliable power hardware for your electrodeposition projects.
Learn more about related products：1000A 12V Water-cooled Synchronous Rectifier
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
