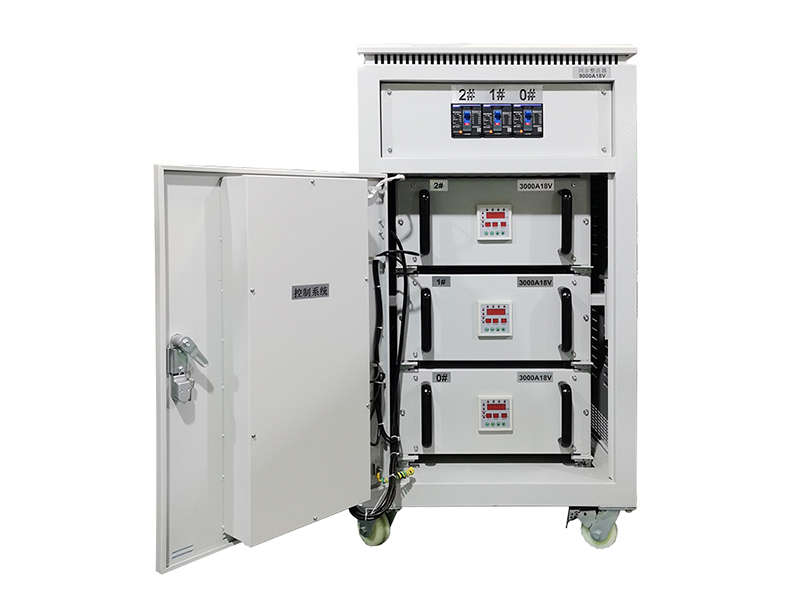

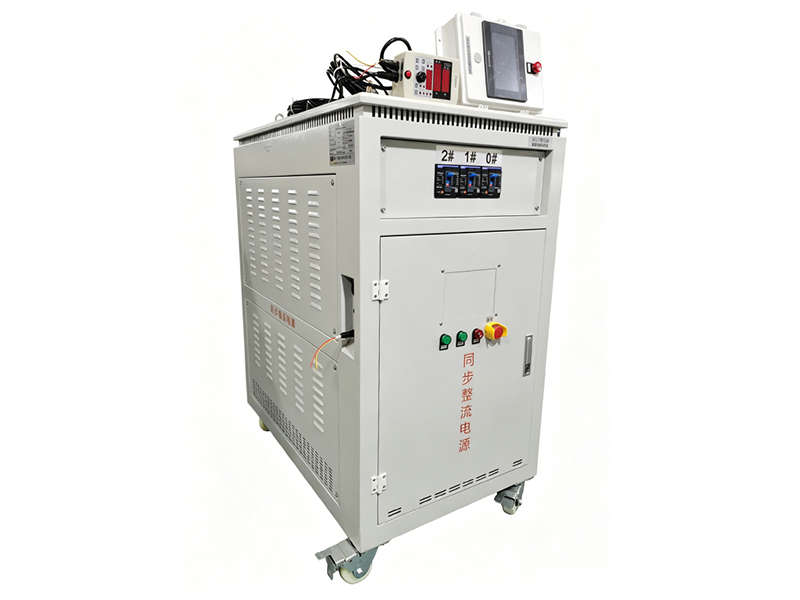

The 9000A 18V Water-cooled Synchronous Rectifier Power Supply (N+1 Parallel Configuration: 3 Units) delivers ultra-stable high-current DC output. Its N+1 redundant parallel structure guarantees continuous production even if one module fails.
The 9000A 18V Water-cooled Synchronous Rectifier Power Supply (N+1 Parallel Configuration: 3 Units) is an ultra-high current industrial rectifier built for uninterrupted heavy-duty plating and electrolysis operations. Unlike single-unit high-current rectifiers, this solution uses three modules working in N+1 parallel redundancy. For example, if one module encounters a minor fault, the remaining two modules can still maintain operation, so your production line will not shut down completely. Many traditional single high-current rectifiers force full line stoppage once the unit breaks down. As a result, factories face costly downtime and lost batches. Thermal overload also causes output instability, which creates inconsistent coating or electrolytic reaction results and increases waste.
The 9000A 18V Water-cooled Synchronous Rectifier Power Supply (N+1 Parallel Configuration: 3 Units) supports smooth stepless adjustment from 0 to 9000A current and 0 to 18V voltage. It works well for large-scale rack plating, metal electrolytic extraction and heavy metal surface treatment workflows. In addition, each independent module is fitted with closed-loop circulating water cooling. It quickly dissipates heat during long continuous production cycles and keeps the whole system within safe temperature ranges around the clock. High-precision closed-loop control balances current sharing across all three modules. It stabilizes DC output automatically when load conditions shift, ensures uniform current distribution and keeps electrolyte bath conditions steady. Furthermore, each module carries independent multi-layer safety protection to guard internal hardware against overload, overheating and sudden short-circuits.
· Provides 9000A 18V stepless adjustable DC output, constructed with 3 modules in N+1 parallel redundancy for ultra-high current industrial processes.
· Implements synchronous rectification topology with balanced current sharing. In turn, it cuts power loss and reduces overall heat generation during long production runs.
· Features independent water cooling for every module. Hence, the whole system handles heavy thermal loads and supports non-stop 24-hour batch manufacturing.
· Supports CC and CV operation modes. Operators can switch smoothly for bath activation, formal electrolytic processing and post-production quality checks.
· Comes with individual protection circuits for each module. It limits the impact of single-module faults and avoids total production shutdown.
· Equipped with RS485 communication on each unit. With it, operators monitor every module’s real-time data and store logs to optimize production recipes.
In fact, many large metal finishing and electrolytic plants still rely on single high-current rectifiers. Those single machines create huge operational risks because any component failure stops the entire line. Even so, the 9000A 18V Water-cooled Synchronous Rectifier Power Supply (N+1 Parallel Configuration: 3 Units) fits perfectly for factories that cannot afford unexpected downtime. Many production lines run non-stop batches with changing workpiece surface area or electrolyte conductivity, and this modular setup adapts well to these real working scenarios. Our team performs full-load ageing and current balance testing for every module before shipment. Therefore, the complete system maintains stable performance over repeated long production cycles.
The built-in current balance algorithm automatically distributes load evenly across three modules. Changing working temperature and bath conditions often trigger small output deviations. This system compensates in real time to maintain precise current and voltage output. As a result, you reduce scrap rates and avoid financial losses caused by sudden equipment halt. The system can store multiple groups of process parameters. Operators can quickly recall saved process presets. This action shortens equipment setup time and improves overall workshop productivity.

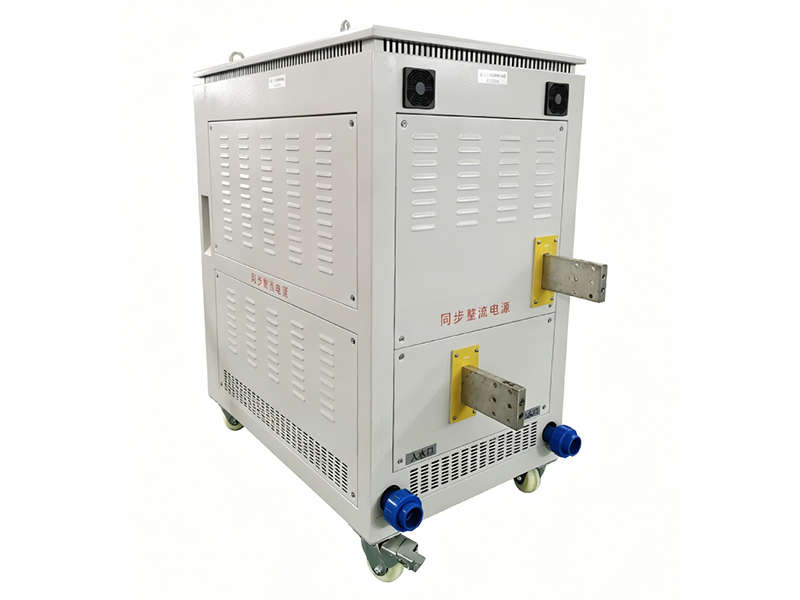

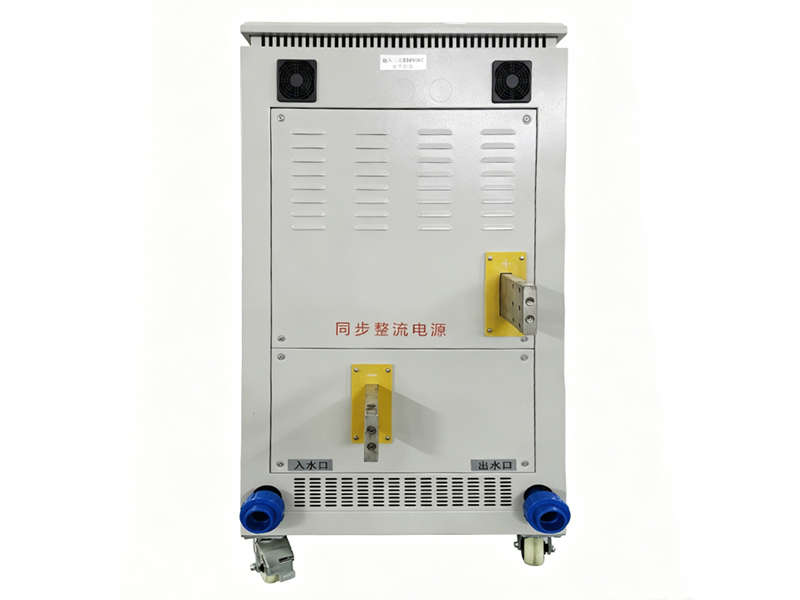

Each module uses a reinforced sealed cabinet paired with anti-corrosion water circulation pipelines. This modular assembly delivers strong dust-proof, moisture-proof and anti-corrosion performance. Accordingly, it runs reliably in humid and corrosive environments inside plating and electrolysis workshops. Moreover, the three-phase AC input stays stable and each module adopts rugged mechanical construction. This parallel rectifier system has low failure probability and long service life to meet strict uninterrupted mass-production demands.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Rated Output | Total Rated Current | 9000A |
| Rated Output | Rated Voltage | 0‑18V |
| System Structure | Configuration | N+1 Parallel, 3 Modules |
| Working Mode | Operation Type | Constant Current / Constant Voltage, Low Ripple DC |
| Cooling System | Cooling Method | Water‑Cooled for each module |
| Input Power | Input Voltage | Three‑phase AC Customized |
| Communication Interface | Data Port | RS485 per module |
| Safety Protection | Protection Functions | Over‑current, Over‑voltage, Over‑temperature, Short‑circuit, Surge Protection (individual per module) |
| Applicable Scenarios | Main Applications | Large rack electroplating, industrial electrolysis, metal electrolytic extraction, heavy metal surface finishing |
Further, we back this rectifier system with a 1-year warranty and design it for over 10 years of service life. It supports constant-current and constant-voltage modes. Programmable current and voltage ramp-up also comes standard to suit different electrolysis and plating startup workflows. Notably, multi-segment parameter settings enable flexible process configuration. Its RS485 ports allow staff to view live module data and connect with other workshop control equipment. We supply optional custom function upgrades. These options satisfy special ultra-high-current process requirements. Reach out to us for tailored custom solutions.
The 9000A 18V Water-cooled Synchronous Rectifier Power Supply (N+1 Parallel Configuration: 3 Units) serves large electrolysis manufacturers, heavy-duty electroplating plants and industrial metal extraction workshops. Operators deploy it for continuous large-batch electroplating and electrolytic processing on steel, copper and alloy workpieces. It also supports trial testing for newly developed electrolyte bath formulations.
Moreover, the system runs reliably through long-duration batch cycles and round-the-clock production runs. Its balanced multi-module DC output stabilizes electrolytic reactions and plating coating uniformity. For instance, it reduces coating defects and inconsistent metal extraction results, and as a result raises finished-part yield rates and avoids costly downtime.
We develop modular redundant power solutions for ultra-high-current industrial electrolysis and plating scenarios. In contrast to traditional single rectifier units, the 9000A 18V Water-cooled Synchronous Rectifier Power Supply (N+1 Parallel Configuration: 3 Units) is built with N+1 redundancy to minimize production interruption risks. It maintains stable operation under harsh corrosive workshop conditions.
Our technicians complete stability simulation, current sharing testing and full-load ageing checks for every module before shipment. This step guarantees dependable real-world performance during continuous production. We accept non-standard parameter adjustments and custom-feature development. Professional process setup guidance and complete after-sales support also come with every purchase. In short, we deliver trustworthy modular rectifier hardware for your mass-production and pilot-scale metal finishing projects.
