High-Frequency Rectifier Introduction

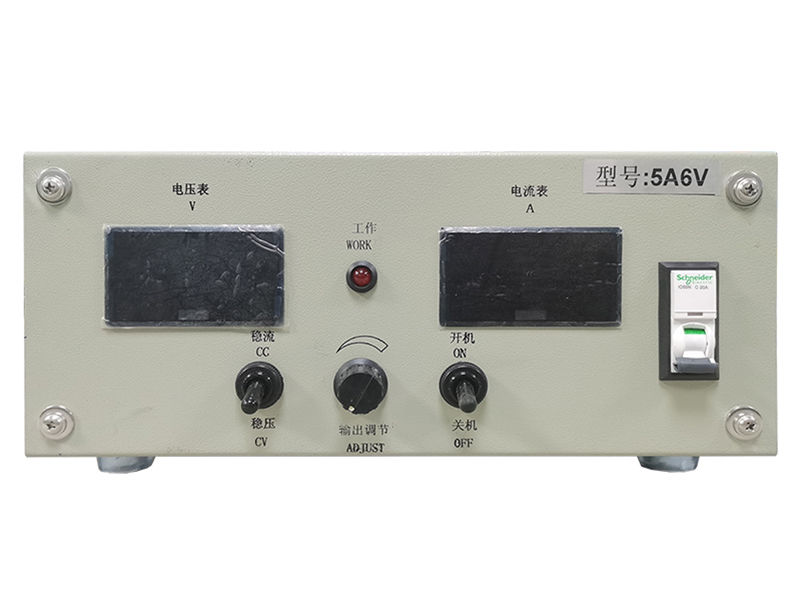

The 5A 6V high-frequency rectifier is an advanced R&D power supply featuring fast switching technology. This system generates high-frequency, programmable pulse waveforms. Consequently, it provides precise control over electrochemical processes at the microsecond scale. Therefore, this high-frequency rectifier is ideal for depositing nanostructured materials and studying rapid interfacial reactions.

Technical Specifications

Key Features & Benefits

• Fast Switching & Precision Pulses: This high-frequency rectifier delivers pulses with microsecond precision. This enables control over nucleation density and grain growth during electrodeposition. As a result, it can produce coatings with tailored nanostructures and properties.
• Advanced Waveform Programming: Users can design complex pulse sequences or arbitrary waveforms via intuitive software. Moreover, the system can synchronize with external equipment. Thus, it facilitates sophisticated multi-step experiments.
• Integrated Data Acquisition: The built-in high-speed logger captures real-time voltage and current transients. Consequently, researchers gain detailed insights into fast electrochemical kinetics and process stability.
• Compact R&D Platform: Its air-cooled, benchtop design is optimized for laboratory environments. It provides research-grade capabilities without the complexity of industrial cooling systems.

Applications & Advantages

This high-frequency rectifier is a catalyst for innovation in advanced materials and surface engineering.

In Nanomaterial Synthesis, precise pulse control allows for the electrodeposition of nanoparticles, nanowires, and nanocomposites with defined size and morphology. This is vital for developing next-generation catalysts, batteries, and sensors.

For Microelectronic Interconnect Plating, high-frequency pulses can achieve void-free filling of high-aspect-ratio through-silicon vias (TSVs) and trenches. This capability is crucial for advanced 3D chip packaging and interconnects.

In Fundamental Electrochemistry Research, the tool enables techniques like pulsed electroanalysis and high-speed corrosion testing. It helps unravel reaction mechanisms that are inaccessible with standard DC power supplies.

Ultimately, this instrument bridges the gap between fundamental science and applied technology. It empowers researchers to explore, optimize, and scale up advanced electrochemical processes that require unprecedented speed and control.
