Output: 12V / 4000A DC
Technology: IGBT synchronous rectification
Efficiency: >94%
Ripple: <3%
Cooling: Water cooled
Control: Digital CV/CC
Applications: Electrowinning, electrorefining, metal extraction

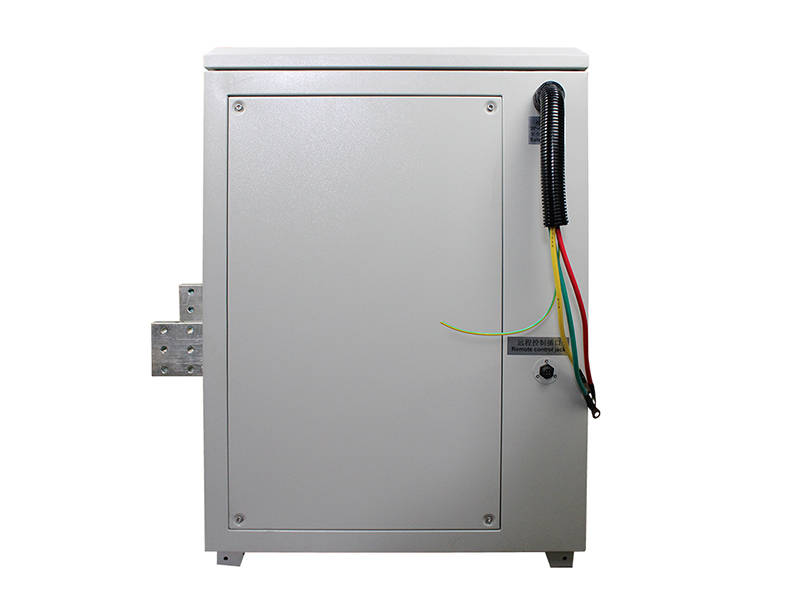

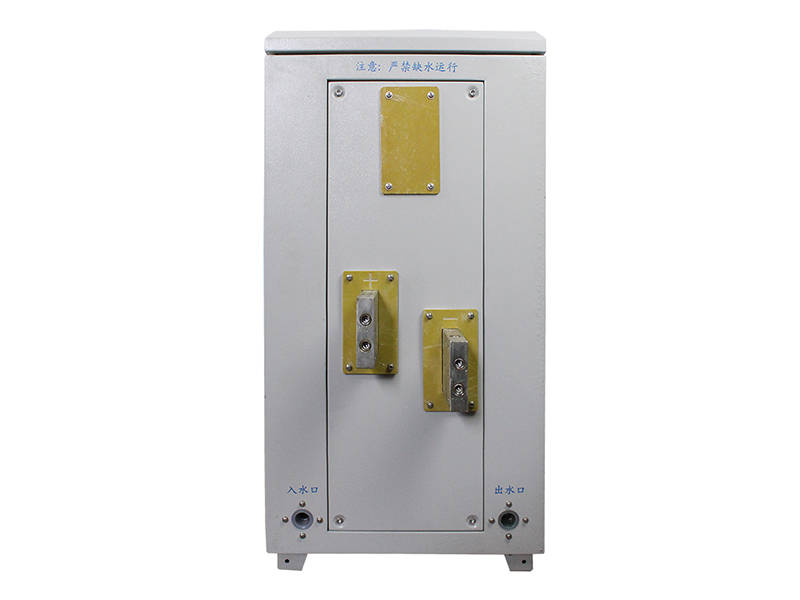

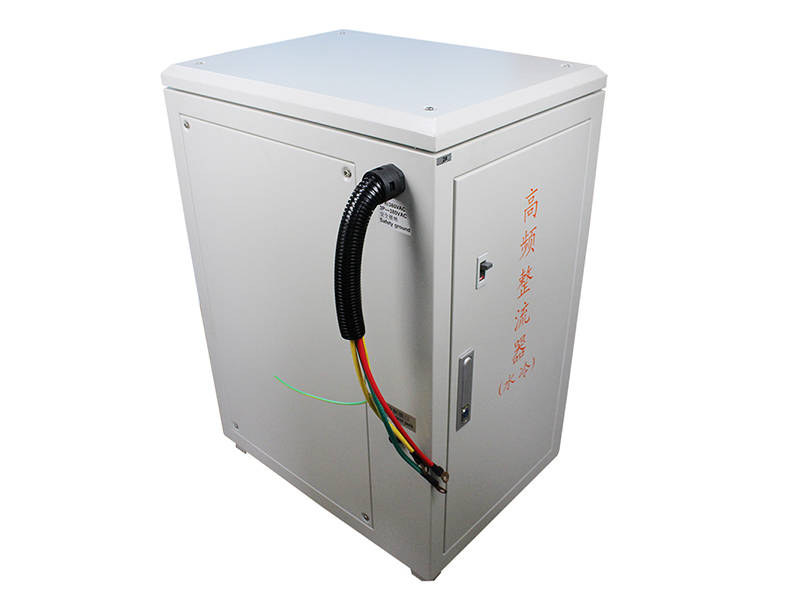

This 4000A 12V water cooled synchronous rectifier delivers massive DC power for large-scale industrial electrolytic processes. It utilizes advanced synchronous rectification technology to achieve exceptional efficiency and performance. Consequently, it ensures optimal current density for electrolysis, metal refining, and electrowinning applications.
This electrolytic synchronous rectifier employs IGBT-based high frequency switching technology. Therefore, it achieves over 94% efficiency even at high current output levels. Moreover, the fully sealed water cooling system protects components from corrosive electrolytes and harsh conditions. Additionally, it significantly reduces energy consumption compared to traditional thyristor rectifiers.
This synchronous rectifier delivers pure DC output with ripple below 3% for optimal electrolytic efficiency. Consequently, it ensures consistent metal deposition and higher purity in refining processes. Furthermore, precision digital controls allow exact adjustment of voltage and current parameters. Importantly, comprehensive protection circuits ensure reliable operation and equipment safety.
The fully sealed IP54 cabinet protects internal components from moisture and corrosive electrolyte fumes. As a result, this rectifier performs reliably in electrolytic refining plants and chemical processing facilities. Furthermore, the closed-loop water cooling system maintains optimal temperatures during extended high-current operation. This robust design extends component life and reduces maintenance requirements significantly.
Copper refineries use this electrolytic rectifier for electrowinning and electrorefining operations. Zinc production facilities employ it for electrolytic extraction processes. Nickel and cobalt processing plants utilize it for metal recovery. Precious metal refineries also apply it for gold and silver electrolytic refining. Chlor-alkali industries use it for brine electrolysis.
This synchronous power supply enables precise control of current density for consistent metal quality. Therefore, operators achieve higher purity levels and reduced energy consumption. The low ripple output improves current efficiency and prevents passivation issues. Additionally, fast response time ensures stable performance during load changes.
The high efficiency design reduces electricity consumption by up to 30% compared to conventional rectifiers. Consequently, it lowers operational costs significantly for energy-intensive electrolytic processes. Furthermore, reduced heat generation minimizes cooling requirements in production facilities. These benefits deliver rapid return on investment for electrolytic plants.
Industrial grade components ensure dependable performance year after year. The water cooling system eliminates dust-related failures common with air cooled units. This rectifier is engineered for 24/7 continuous operation in demanding electrolytic production environments.
