Output: 0-6V DC / 0-100A Adjustable
Power: 600W
Application: 360° Barrel/Tumble Plating Systems
Best For: Small Parts Jewelry Plating, Electronic Connectors, Hardware Finishing, Decorative Coatings
This 360° Plating Rectifier is a professional core power source for industrial electroplating. Firstly, it converts AC power into stable DC or pulse power, solving common issues like uneven coating and poor adhesion. Moreover, as a custom-focused product, it supports flexible parameter adjustment to fit decorative, functional, and precision plating needs. Additionally, its rugged industrial design ensures stable long-term operation, suitable for all-scale electroplating workshops and easy integration into existing lines.
- Stable output for uniform, dense coatings
- High efficiency to reduce operational costs
- Fully customizable for diverse plating processes
- Comprehensive protection to avoid production interruption
- Easy to operate and maintain
Firstly, this 360° Plating Rectifier adopts advanced high-frequency IGBT technology, achieving ≥90% efficiency and minimizing energy waste. Meanwhile, its precise control ensures stable output with ≤3% ripple, improving coating quality. Furthermore, it supports DC/pulse mode switching, and customization is our core strength—we adjust parameters, cooling, and interfaces per customer needs. In addition, full protection functions and industrial-grade components ensure durability in harsh workshop environments.
| Model | Output Current (A) | Output Voltage (V) | Power (kW) | Input Current (A) | Input Voltage (V) | Weight (kg) | W×L×H (mm) |
|---|---|---|---|---|---|---|---|
| ZJ100015 | 1000 | 15 | 15 | 25 | 380 | 60 | 390×480×250 |
| ZJ200015 | 2000 | 15 | 30 | 50 | 380 | 60 | 430×480×250 |
| ZJ300015 | 3000 | 15 | 45 | 75 | 380 | 60 | 520×730×300 |
| ZJ400015 | 4000 | 15 | 60 | 100 | 380 | 100 | 570×730×300 |
| ZJ500012 | 5000 | 12 | 60 | 100 | 380 | 120 | 570×770×250 |
| ZJ600015 | 6000 | 15 | 90 | 150 | 380 | 130 | 550×880×250 |
| ZJ800015 | 8000 | 15 | 120 | 200 | 380 | 180 | 500×670×1450 |
| ZJ1000015 | 10000 | 15 | 150 | 252 | 380 | 250 | 600×800×1750 |
| ZJ1200015 | 12000 | 15 | 180 | 303 | 380 | 300 | 800×1350×1500 |
| ZJ1500018 | 15000 | 18 | 270 | 454 | 380 | 350 | 860×1450×1550 |
| ZJ1800020 | 18000 | 20 | 360 | 606 | 380 | 350 | 860×1450×1850 |
| ZJ2000015 | 20000 | 15 | 300 | 505 | 380 | 400 | 860×1450×1850 |
| ZJ2500015 | 25000 | 15 | 375 | 631 | 380 | 450 | 880×1530×2150 |
| ZJ3000015 | 30000 | 15 | 450 | 757 | 380 | 350 | 880×1530×2540 |
| ZJ8000015 | 80000 | 15 | 1200 | 2020 | 380 | 491 | 880×1530×2540 |
| ZJ1000001 | 100000 | 15 | 1500 | 2525 | 380 | 650 | 880×1530×2650 |
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.

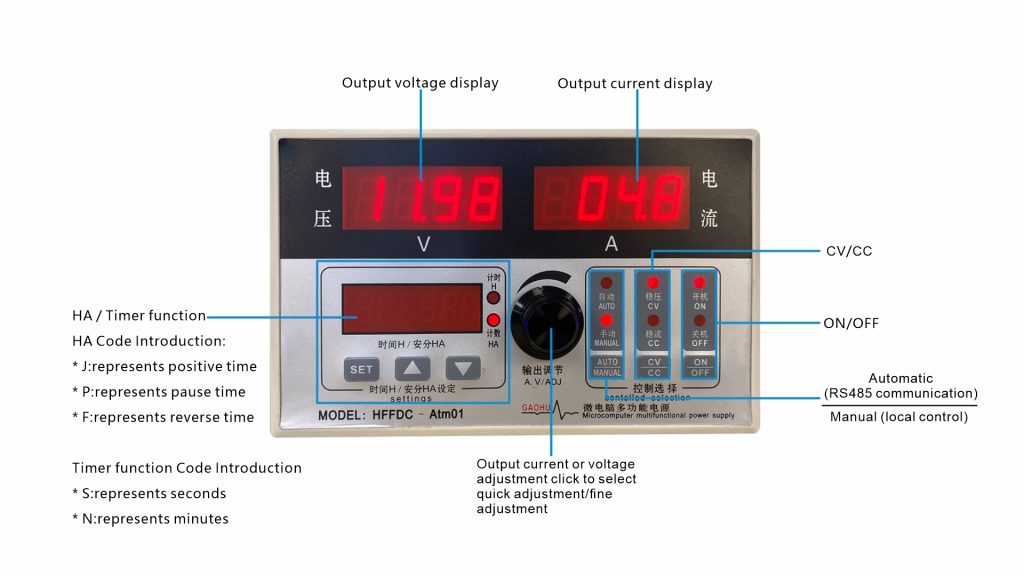

1. Output voltage display
Shows real-time output voltage (V) of the power supply.
2. Output current display
Shows real-time output current (A) of the power supply.
3. HA / Timer function
Displays cumulative ampere-minutes or timer value for process control.
4. Output current or voltage adjustment
Click to switch between quick/fine adjustment, then rotate to set the output voltage or current.
5. Automatic (RS485 communication) / Manual (local control)
Switches between remote communication control and local manual operation modes.
6. CV/CC
Switches between constant voltage (CV) and constant current (CC) operating modes.
7. ON/OFF
Turns the power supply output on or off.
8. HA Code Introduction
- J: Positive time
- P: Pause time
- F: Reverse time
9. Timer function Code Introduction
- S: Seconds
- N: Minutes
This 360° Plating Rectifier is widely used in decorative, functional, and precision electroplating for hardware, electronics, automotive, and aerospace industries. Moreover, it fits all-scale workshops and automated lines, and is suitable for special processes like electroforming and electrolytic polishing. Additionally, its customizability ensures adaptability to new technologies and laboratory R&D.
Firstly, we have rich experience in 360° Plating Rectifier R&D and focus on custom solutions. Secondly, our professional team designs exclusive products per customer needs, with strict quality tests and CE/ISO certifications. Moreover, we provide fast delivery, on-site commissioning, and comprehensive after-sales support, making us a trusted partner for electroplating enterprises.
Learn more about related products:Plating Power Supply
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
