Output: 0-150V DC / 0-30A Adjustable
Power: 4.5kW Maximum
Key Feature: High Voltage Output for Deep Recess Coverage
Best For: Automotive Parts, Electrical Enclosures, Complex Geometry Components, Deep Recess Coating
The 30A 150V electrophoresis rectifier is an enhanced power system for demanding electrodeposition applications This unit combines high current output with increased voltage delivering superior throwing power and coating performance for complex geometries
| Model | Customizable according to customer requirements |
| Circuit Configuration: | IGBT/PWM Three-phase AC380V/220V±10% (other options available) |
| Input Voltage: | 50Hz/60Hz (other options available) |
| Frequency: | 0-1000V (customizable upon request) |
| Output Voltage: | 0-30000A (customizable upon request) |
| Output Current: | Current regulation accuracy ≤1% |
| Output Accuracy: | Voltage regulation accuracy ≤1% |

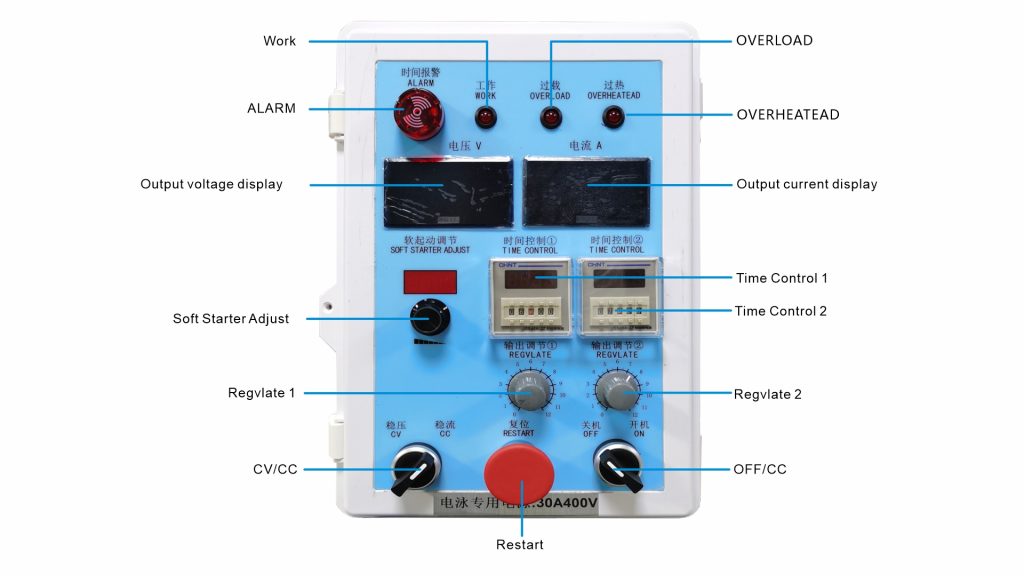

| Output Display: | Digital voltage and current meter display (display and operation are separate from the main unit) |
| Adjustment Method: | Intelligent digital adjustment |
| Adjustment Range: | Current 0-maximum, Voltage 0-maximum |
| Time Control: | 20 working time settings available |
| Slow Start Time: | 0-1000 second setting (specify upon ordering) |
| Start Time Method: | 1. Current start (by adding workpiece)2. External button start switch (specify upon ordering) |
| Work End Alarm Method: | 2. Alarm stops after 8 seconds1. Continuous alarm3. No alarm |
| Output Filtering: | LC filter (specify upon ordering) |
| Output Waveform: | 30kHz DC square wave |
| Output Interface: | Standard RS485 communication interface (customizable upon request) |
| Insulation Resistance: | Input-Output: 25MQ |
| Insulation Strength: | Input-Chassis: 25MQ |
| Operating Environment: | Output-Chassis: 25MQ |
| Protection Class: | Input-Output: AC1500V, 10MA, Input Optical: AS158Y; 1MA; |
| Cooling System: | -15-40℃ |
| Storage Temperature: | Storage temperature: -20-50°C |
| Insulation Class: | Class B. Suitable for continuous full-load operation. Protection against phase loss, overheating, overcurrent, short circuit, undervoltage, and overvoltage. |
| Operating Status: | Storage temperature: -20-50°C |
| Holding Mode: | Class B. Suitable for continuous full-load operation. Protection against phase loss, overheating, overcurrent, short circuit, undervoltage, and overvoltage. |
This high voltage electrophoresis rectifier solves critical coating challenges in several industries.
In automotive manufacturing, it provides the necessary voltage to ensure complete E-coat coverage inside door frames, rocker panels, and chassis components. This is fundamental for achieving the long-term corrosion warranty standards required by the industry.
For electrical and industrial enclosure producers, the rectifier coats the interior of cabinets and boxes uniformly. As a result, it provides complete insulation and corrosion protection for sensitive electronics housed within.
When coating parts with complex geometries like welded assemblies or heat sinks, the enhanced throwing power ensures paint reaches all surfaces evenly. Therefore, it eliminates the risk of premature corrosion starting at hidden, uncoated junctions.
Ultimately, this rectifier is an investment in coating quality and product durability. It enables manufacturers to meet stringent performance specifications, reduce rework and warranty claims, and deliver more reliable products to their customers.
