Positioning Pulse Rectifier Introduction

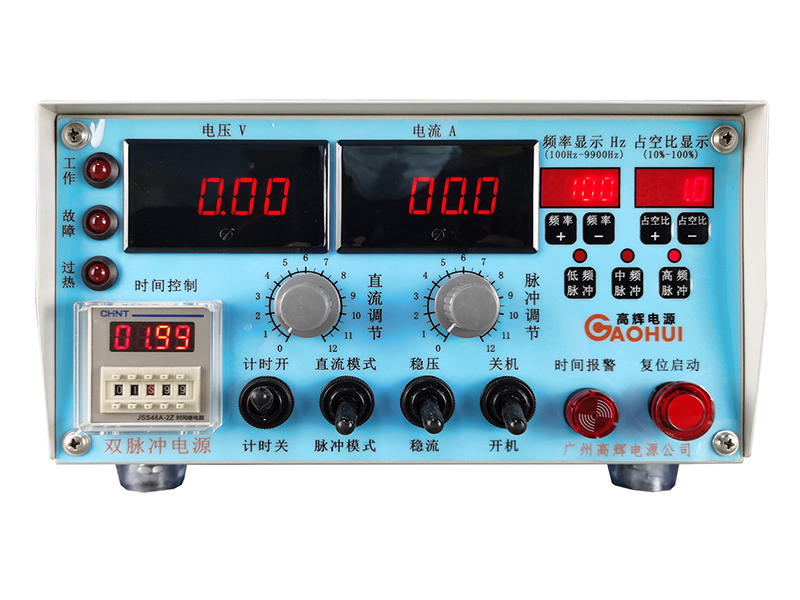

The 30A 12V positioning pulse rectifier is a precision power system for localized electroplating. This positioning pulse rectifier delivers high-current, short-duration pulses that enable precise material deposition on specific areas. It is engineered for high-volume production of electronic connectors and components requiring exceptional plating accuracy and efficiency.

Product Parameters

Input Power Single-Phase 220VAC, 50/60Hz
DC Output 0-12V / 0-30A Adjustable
Pulse Mode High-Current Positioning Pulse
Pulse Width 0.1 ms - 100 ms
Pulse Interval 1 ms - 1000 ms
Cooling Air Cooling
Protections Short Circuit, Over-Temperature, Current Limit

Key Features of the Positioning Pulse Rectifier

• High-Efficiency Pulse Delivery: This positioning pulse rectifier minimizes energy loss during short, high-current pulses. Consequently, it reduces overall power consumption and heat generation.
• Precise Current Localization: The system enables plating only on targeted areas. Therefore, it significantly reduces precious metal usage in applications like gold plating contact tips.
• Rapid Pulse Sequencing: Fast pulse switching allows for high-speed production cycles. This makes it ideal for inline plating of connector pins and PCB edges.
• Programmable Plating Sequences: Operators can create complex on/off pulse patterns. This optimizes deposit thickness and properties for different component geometries.
• Process Monitoring & Control: Real-time monitoring of pulse parameters ensures consistent quality. Moreover, it provides data for traceability and process optimization.

Applications & Advantages

This 30A 12V positioning pulse rectifier serves critical applications in electronics manufacturing. First, it plates gold or other precious metals exclusively on the mating surfaces of PCB edge connectors. Second, it is used for selective plating on specific areas of contact pins and terminals. Third, it enables high-speed, precise plating of miniature electronic components.

The positioning pulse rectifier delivers substantial competitive advantages. Primarily, it can reduce precious metal consumption by 30-70% compared to barrel or rack plating. Additionally, the localized plating process improves product reliability by ensuring optimal plating only where needed. Furthermore, its high efficiency lowers operational costs and environmental impact. Ultimately, it enables the production of higher-value, more reliable components for the electronics and automotive industries.
