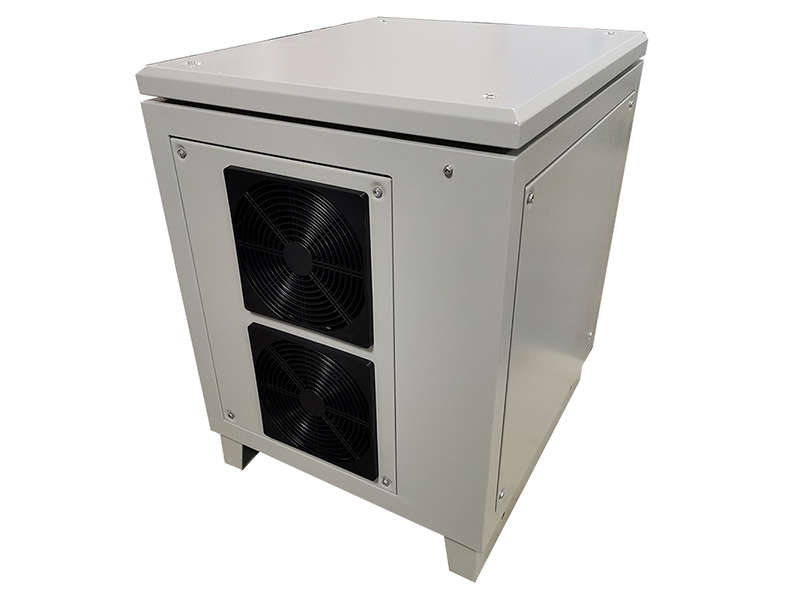

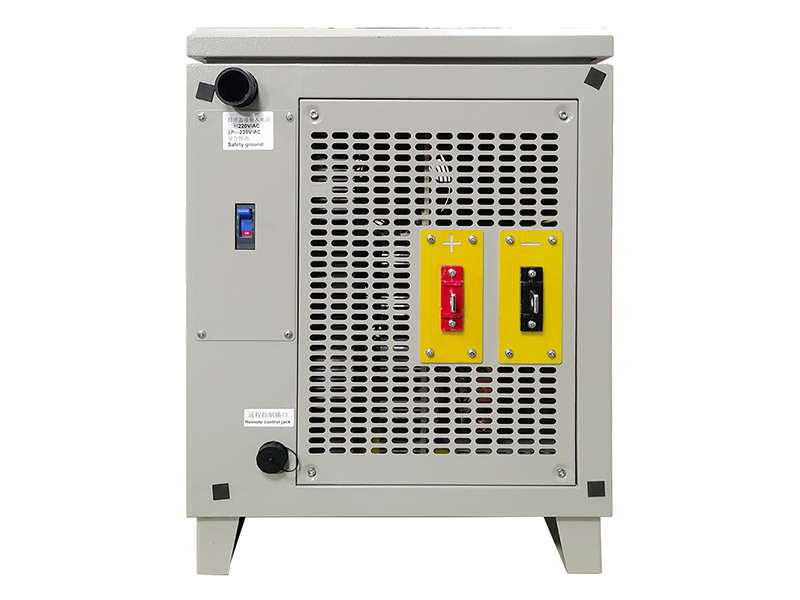

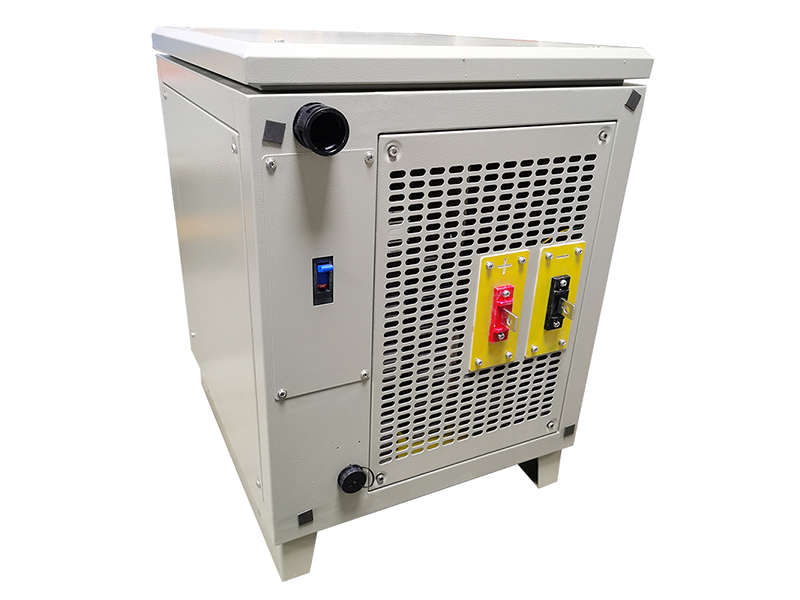

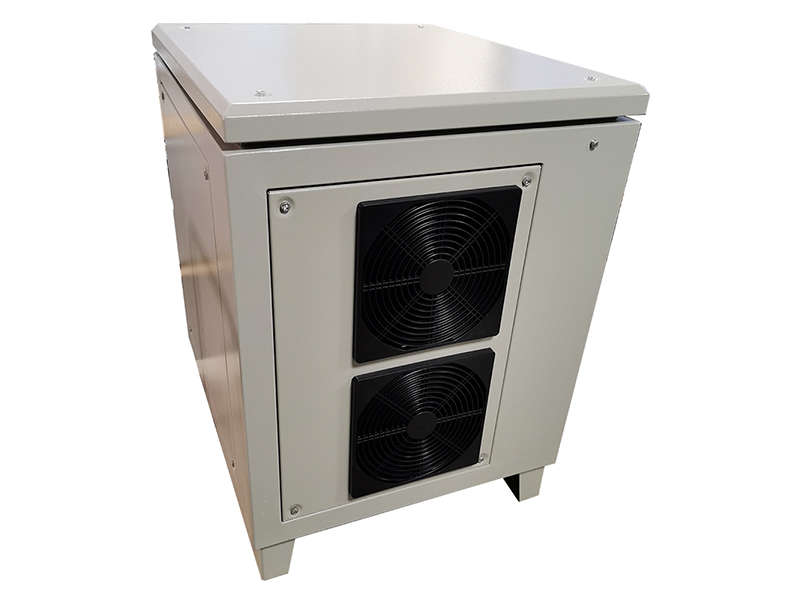

The Production Air Cooled E-Coat Rectifier from Gaohui Rectifier delivers 200A at 200V for mid-size e-coat lines. This Production Air Cooled E-Coat Rectifier powers a wide range of e-coating racks with stable DC output. Furthermore, the Production Air Cooled E-Coat Rectifier uses air cooled IGBT stages that hold tight output stability under full load. Consequently, e-coating shops rely on it for uniform, repeatable films. Moreover, finishing facilities select this Production Air Cooled E-Coat Rectifier for its air cooled design and 200A 200V capacity that keeps deposition rates predictable. Consequently, production planners factor it into daily schedules without derating concerns.
Cooling: Air cooled | Application: Mid-Size Production | Ripple: ≤5% | Interface: RS485/PLC
The 200A 200V rectifier delivers real production current without water cooling infrastructure. 200A covers mid-size e-coat racks, and 200V matches standard cathodic baths. For example, a medium-volume shop grows from small units into production without plumbing a chiller. Furthermore, forced-air cooling handles daily shift duty. Moreover, the robust cabinet tolerates industrial floor conditions. In addition, PLC sync matches conveyor line speed.
Moreover, this rectifier offers energy monitoring and remote diagnostics. In addition, fan redundancy and thermal derating protect unattended runs. Consequently, medium-volume shops adopt it to add coating capacity with a simple install. Moreover, line supervisors rely on the status indicators on this Production Air Cooled E-Coat Rectifier. Finally, Gaohui Rectifier supports it with commissioning on site.
| Parameter | Value |
|---|---|
| DC Output Current | 0–200A adjustable |
| DC Output Voltage | 0–200V adjustable |
| Cooling Method | Air cooled |
| Ripple Factor | ≤5% RMS |
| Control Mode | IGBT/PWM, CV/CC |
| Communication | RS485, optional PLC |
| Dimensions | Customized to tank layout |
| Weight | Customized |
| Special Feature | Forced-air production duty |
Specifications subject to change. Custom designs available upon request.
We can provide: The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
Furthermore, Gaohui Rectifier supports parallel N+1 expansion when line capacity grows. We provide remote commissioning and spare-part support worldwide. Consequently, you can scale from one tank to a full e-coating department without replacing the rectifier.
Moreover, Gaohui Rectifier includes commissioning support and a documented maintenance plan with every Production Air Cooled E-Coat Rectifier. Consequently, your engineers can schedule service without guessing intervals.
Related Models:
Need more current? Check the 300A 200V Heavy Duty E-Coat Rectifier.
Need lower voltage? View the 50A 150V E-Coat Finishing Rectifier.
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
