Output: 0-200V DC / 0-200A (40kW)
Cooling: Advanced Forced Air System
Input: 3-Phase 400VAC
Best For: High Volume Automotive, Large Appliance, Industrial Coating
This High-power electrophoresis rectifier provides stable and adjustable DC power for industrial electrophoretic coating processes. Specifically, it effectively solves common problems such as uneven film thickness, weak adhesion and unstable current output in traditional coating systems. Moreover, as a mainly customized product, it can perfectly match cathode and anode electrophoresis production lines, ensuring consistent surface finishing quality for various metal workpieces under continuous working conditions. Additionally, its optimized design ensures smooth integration with existing production systems without extra modification.
To begin with, adopting advanced high-frequency IGBT technology, this High-power electrophoresis rectifier achieves efficiency above 90% and greatly lowers long-term operating costs. Meanwhile, its ultra-stable DC output ensures smooth and even coating film, significantly improving product appearance and corrosion resistance. Furthermore, industrial-grade structure and components enable it to work reliably in harsh workshop environments with high humidity and dust. Since customization is our core advantage, parameters like voltage, current, control mode and cooling type can all be adjusted to meet specific production requirements. In addition, multiple built-in protections effectively avoid equipment damage and production interruptions, extending service life and reducing maintenance costs.
| Model | Output Current (A) | Output Voltage (V) | Power (kW) | Input Current (A) | Input Voltage (V) | Weight (KG) | W*L*H (mm) |
| DY2100 | 2 | 100 | 0.2 | 1 | 220 | 16 | 420*420*150 |
| DY10100 | 10 | 100 | 1 | 5 | 220 | 18 | 420*420*150 |
| DY20100 | 20 | 100 | 2 | 10 | 220 | 18 | 420*420*150 |
| DY30100 | 30 | 100 | 3 | 15 | 220 | 18 | 420*420*150 |
| DY50100 | 50 | 100 | 5 | 25 | 380 | 20 | 420*420*150 |
| DY5100100 | 100 | 100 | 10 | 50 | 380 | 50 | 550*450*320 |
| DY50150 | 50 | 150 | 7.5 | 38 | 380 | 20 | 420*420*150 |
| DY100150 | 100 | 150 | 15 | 75 | 380 | 50 | 550*450*320 |
| DY50200 | 50 | 200 | 10 | 50 | 380 | 20 | 420*420*150 |
| DY100200 | 100 | 200 | 20 | 100 | 380 | 70 | 560*580*680 |
| DY100250 | 100 | 250 | 25 | 125 | 380 | 70 | 580*510*680 |
| DY100300 | 100 | 300 | 30 | 150 | 380 | 70 | 580*510*680 |
| DY200200 | 200 | 200 | 40 | 200 | 380 | 70 | 580*510*680 |
| DY200300 | 200 | 300 | 60 | 300 | 380 | 90 | 580*510*920 |
| DY300300 | 300 | 300 | 90 | 450 | 380 | 100 | 580*510*920 |
| DY400300 | 400 | 300 | 120 | 600 | 380 | 130 | 580*510*1150 |
| DY500300 | 500 | 300 | 150 | 750 | 380 | 180 | 600*530*1600 |
| DY400400 | 400 | 400 | 160 | 800 | 380 | 180 | 600*530*1600 |
| DY200350 | 200 | 350 | 70 | 350 | 380 | 100 | 580*510*920 |
| DY250300 | 250 | 300 | 75 | 375 | 380 | 100 | 580*510*920 |
| DY250350 | 250 | 350 | 87.5 | 438 | 380 | 100 | 580*510*920 |
| DY30250 | 30 | 250 | 7.5 | 38 | 380 | 20 | 420*420*150 |
| DY150250 | 150 | 250 | 37.5 | 188 | 380 | 70 | 560*580*680 |
Electrophoresis Machine Functions: Single timing, soft start
Control Method: Panel control or remote box control
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.

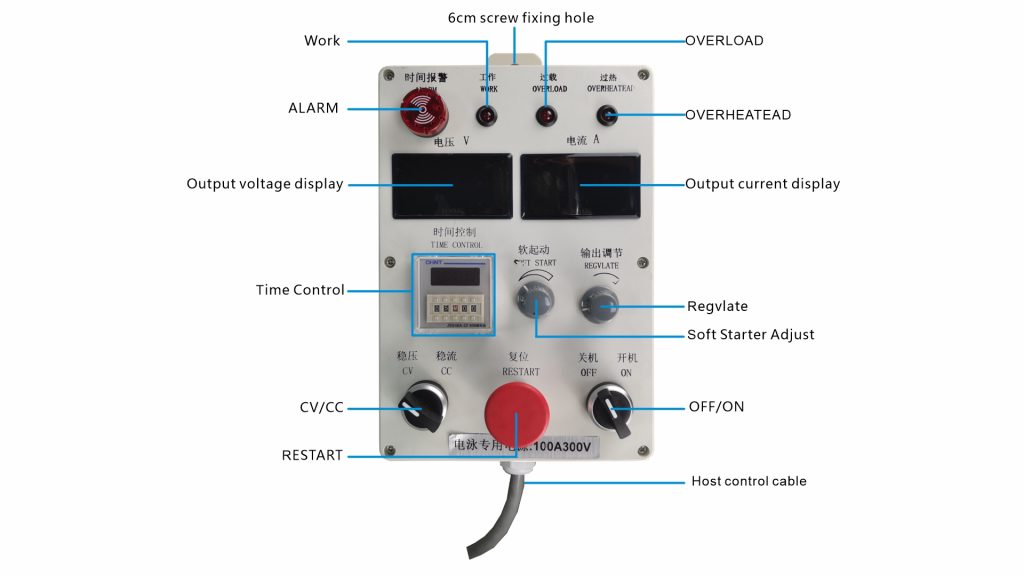

1. Work
Running indicator light, lights up when the power supply is operating normally.
2. 6cm screw fixing hole
Mounting hole for securing the control panel.
3. ALARM
Audible and visual alarm for time-up or fault conditions.
4. Output voltage display
Shows real-time output voltage of the power supply.
5. Time Control
Timer module for setting process duration, supports automatic stop after time-up.
6. CV/CC
Switch between constant voltage (CV) and constant current (CC) operating modes.
7. RESTART
Reset button to restart the control system or clear alarms.
8. OVERLOAD
Overload indicator light, lights up when the power supply exceeds the rated current.
9. OVERHEATEAD
Over-temperature indicator light, lights up when the power supply exceeds the safe temperature.
10. Output current display
Shows real-time output current of the power supply.
11. Regulate
Adjustment knob for setting output voltage or current.
12. Soft Starter Adjust
Adjustment knob for controlling the soft start ramp-up speed to avoid inrush current.
13. OFF/ON
Main power switch to turn the power supply on or off.
14. Host control cable
Connection port for linking the control panel to the main power unit.
This High-power electrophoresis rectifier is widely used in automotive parts, home appliances, hardware and metal furniture manufacturing. Beyond that, it is suitable for both small-batch processing workshops and large automated assembly lines. Moreover, it supports cathode electrophoresis, anode electrophoresis and various water-based coating materials. It also integrates well with PLC automatic control systems and can adapt to different workpiece sizes and coating process requirements.
First of all, we have rich experience in designing and manufacturing industrial power supplies, focusing on customized rectifier solutions. In addition, our professional R&D team can develop exclusive products according to customer process parameters and site conditions. Next, all products pass strict quality tests and have CE and ISO9001 certifications to ensure stable performance. Furthermore, we provide fast delivery, on-site commissioning and comprehensive after-sales technical support. Finally, our strong customization capacity and reliable service make us a trusted partner for coating production lines.
Learn more about related products:15A 800V Electrophoresis Rectifier Air Cooled
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
