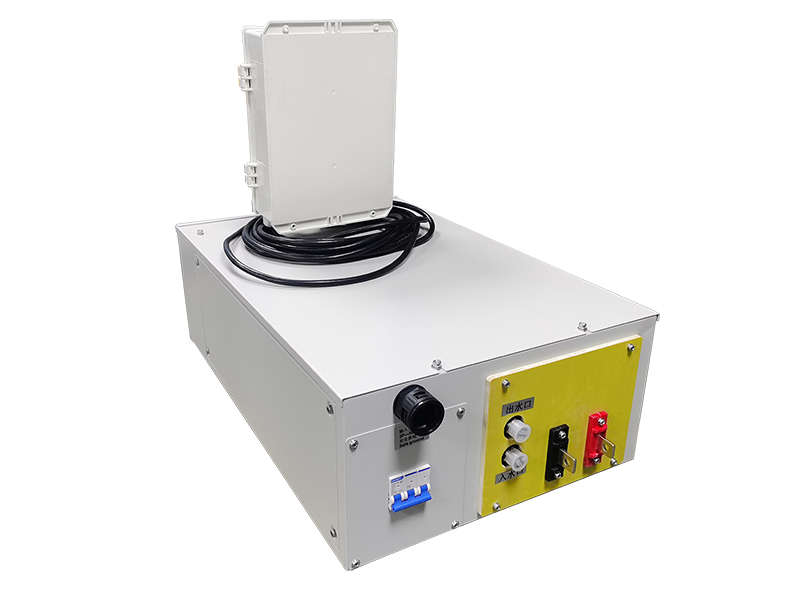

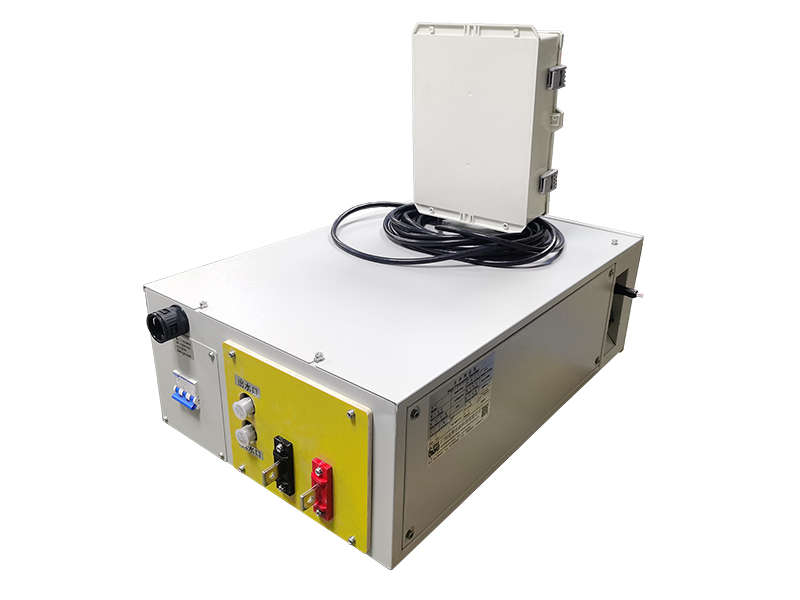

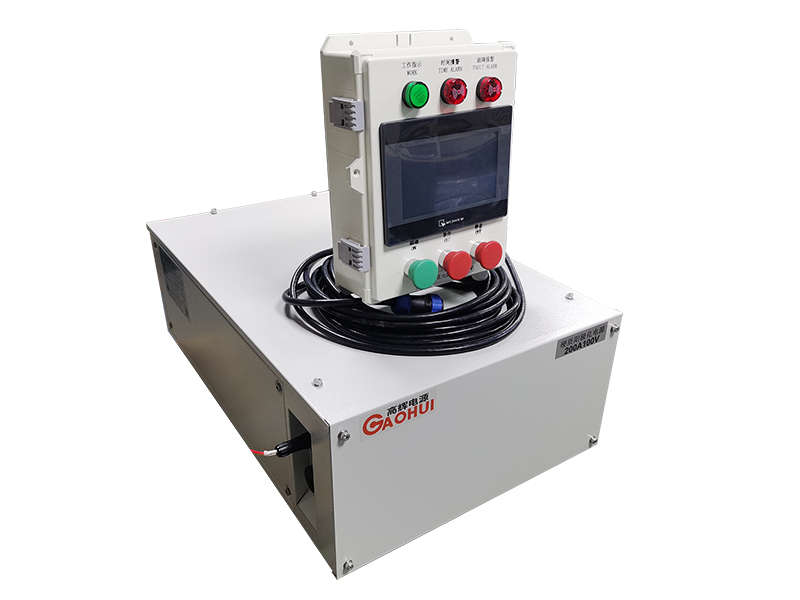

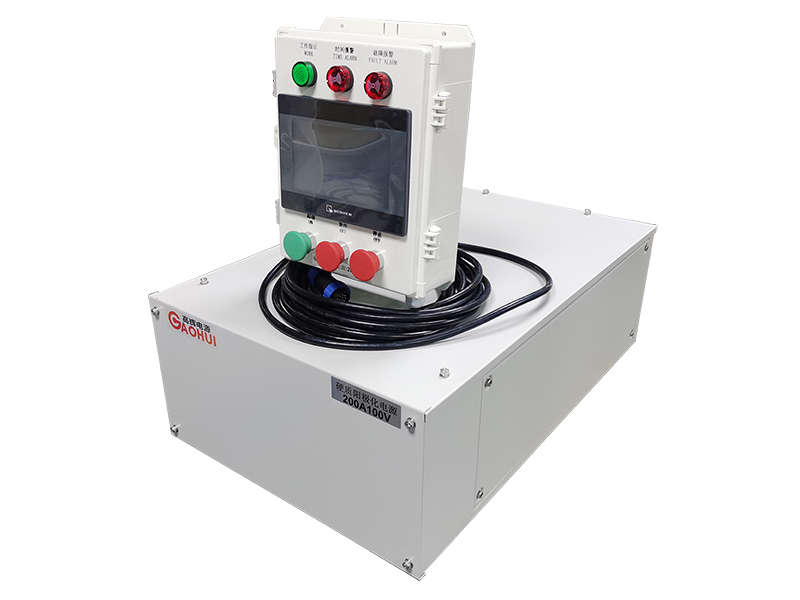

The Bipolar Pulse Titanium Rectifier from Gaohui Rectifier delivers 200A at 100V for bipolar pulse titanium hard anodizing. This Bipolar Pulse Titanium Rectifier powers a wide range of oxidation racks with stable DC or pulsed output. Furthermore, the Bipolar Pulse Titanium Rectifier uses water cooled IGBT stages that hold tight output stability under full load. Consequently, oxidation shops rely on it for uniform, repeatable coatings. Moreover, surface-finishing facilities select this Bipolar Pulse Titanium Rectifier for its water cooled design and 200A 100V capacity that keeps deposition rates predictable. Consequently, production planners factor it into daily schedules without derating concerns.
Cooling: Water cooled | Application: Bipolar Pulse Titanium Hard Anodizing | Ripple: ≤5% | Interface: RS485/PLC
The 200A 100V rectifier is tuned for titanium alloy oxidation and color forming. It covers orthopedic implants, fasteners and aerospace titanium parts. For example, it produces consistent interference-color oxide on Ti-6Al-4V. Furthermore, precise voltage stepping controls color shade batch to batch. Moreover, pulse patterns improve oxide uniformity on complex geometries. In addition, RS485 / optional PLC suits both lab and production use.
Moreover, this rectifier holds low ripple for smooth titanium oxide. In addition, water-cooled cooling supports continuous run cycles. Consequently, medical and aerospace shops trust it for color-coded and protective titanium films. Moreover, engineers like the voltage presets. Finally, Gaohui provides recipe support for titanium oxidation processes.
| Parameter | Value |
|---|---|
| DC Output Current | 0–200A adjustable |
| DC Output Voltage | 0–100V adjustable |
| Cooling Method | Water cooled |
| Ripple Factor | ≤5% RMS |
| Control Mode | IGBT/PWM, CV/CC, pulse |
| Communication | RS485, optional PLC |
| Dimensions | Customized to tank layout |
| Weight | Customized |
| Special Feature | Bipolar pulse titanium |
Specifications subject to change. Custom designs available upon request.
We can provide: The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
Furthermore, Gaohui Rectifier supports parallel N+1 expansion when line capacity grows. We provide remote commissioning and spare-part support worldwide. Consequently, you can scale from one tank to a full oxidation department without replacing the rectifier.
Moreover, Gaohui Rectifier includes commissioning support and a documented maintenance plan with every Bipolar Pulse Titanium Rectifier. Consequently, your engineers can schedule service without guessing intervals.
Related Models:
Need more current? Check the 100A 750V Industrial MAO Rectifier.
Need lower voltage? View the 400A 120V Medium Duty Hard Anodizing Rectifier.
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
