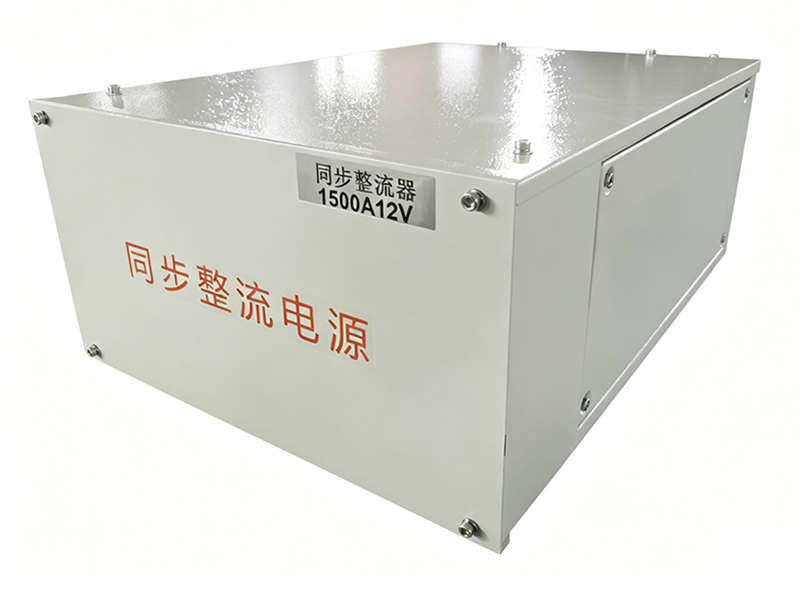

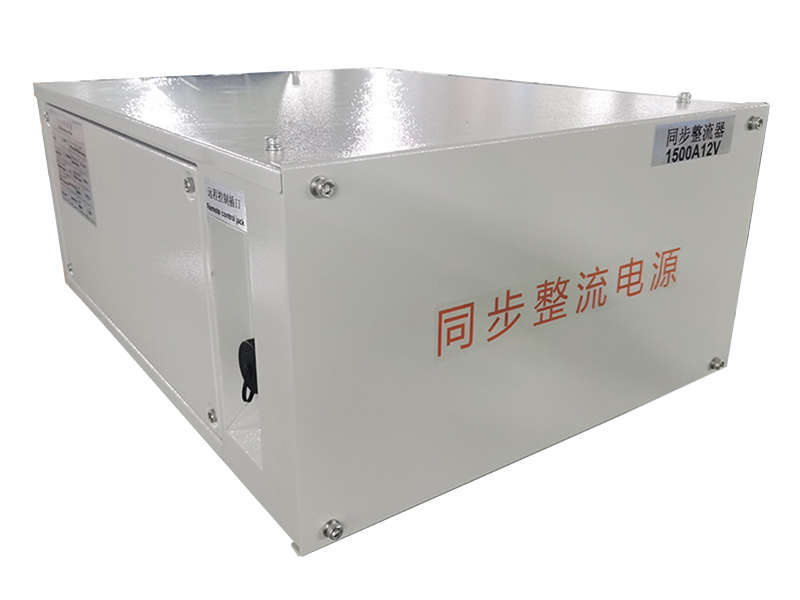

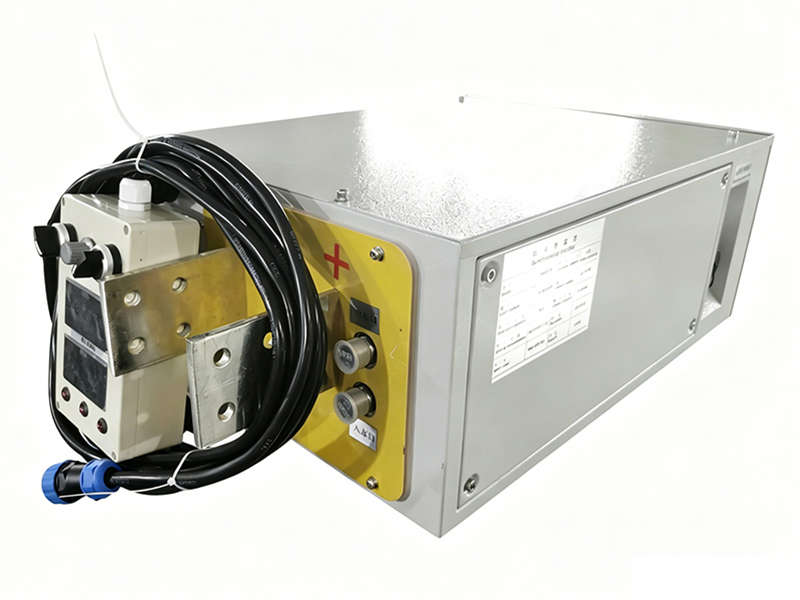

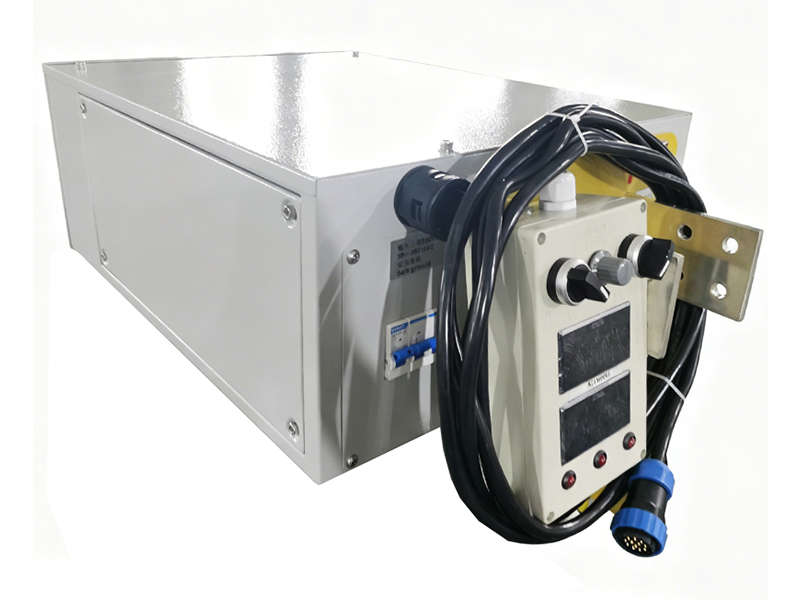

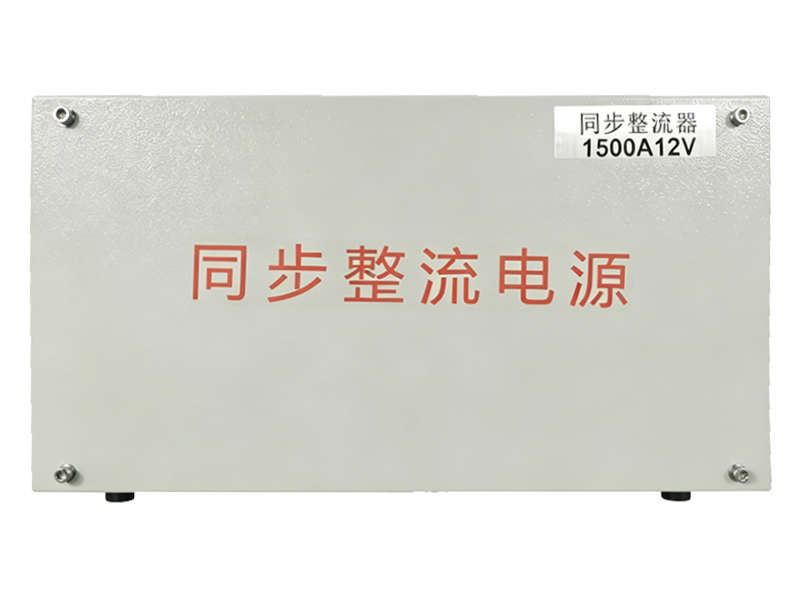

This 1500A 12V Water-cooled Synchronous Rectifier delivers stable low-ripple DC power. It uses efficient water cooling for continuous high-current plating and cuts energy loss with synchronous technology.
The 1500A 12V Water-cooled Synchronous Rectifier provides professional high-current DC power built for rigorous industrial electroplating and electrolytic processing. Unlike conventional low-frequency rectifiers, this unit adopts advanced synchronous rectification topology to reduce conduction loss and lower heat generation. For example, it maintains consistent current density across long-hour rack and barrel plating batches while trimming your monthly electricity expenses. Many older rectifier models suffer severe thermal loss when running at full 1500A load. As a result, they waste large amounts of power and produce excess heat that strains cooling infrastructure. Thermal buildup also causes output drift and uneven coating thickness on metal parts. These problems raise scrap rates and increase your overall production costs.
The 1500A 12V Water-cooled Synchronous Rectifier supports full stepless adjustment ranging from 0 to 1500A current and 0 to 12V voltage. It easily meets power demands for rack plating, barrel plating, electrolytic degreasing and metal oxide removal workflows. In addition, its closed-loop circulating water cooling system rapidly dissipates accumulated heat during extended production cycles. It retains stable operating temperature even during round-the-clock full-load operation. High-precision closed-loop control maintains accurate DC output when load conditions shift. It improves metal deposition uniformity and stabilizes electrolyte bath working conditions. Furthermore, multi-layer safety mechanisms protect internal hardware from overload, over-temperature and sudden short-circuit events over long production shifts.
· Delivers precise 1500A 12V stepless adjustable DC output, purpose-built for heavy-duty industrial electroplating and high-current electrolytic processing.
· Adopts advanced synchronous rectification topology. In turn, it cuts conduction loss and lowers long-term energy costs for continuous plating operations.
· Comes with robust closed-loop water cooling. Hence, it handles persistent high thermal loads and supports non-stop 24/7 batch manufacturing.
· Features dual CC/CV working modes. Operators switch flexibly for workpiece activation, formal plating and post-run quality inspection.
· Integrates complete industrial-grade multi-protection system. It withstands unexpected current surges and safeguards both the rectifier and plated workpieces.
· Equips standard RS485 communication port. With it, users monitor real-time process data and store historical logs to refine electroplating recipes.
In fact, many metal finishing workshops still rely on outdated diode rectifiers for high-current plating lines. Those units generate excessive heat and consume large amounts of power during continuous operation. Even so, the 1500A 12V Water-cooled Synchronous Rectifier fits perfectly for large electroplating factories and metal surface treatment workshops. Many production lines run non-stop batches with changing workpiece surface area, and this unit adapts well to these real-world working scenarios. Our team runs full-load efficiency and thermal stability testing for every unit before shipment. Therefore, each unit maintains consistent performance across repeated electroplating batches.
Our closed-loop regulation system responds quickly to minor output deviations. Changing workpiece surface area and cooling water temperature create these small fluctuations. It maintains highly accurate current and voltage output under diverse working states. As a result, you cut reject rates and reduce long-term electricity expenditure. The unit stores multiple groups of electroplating process parameters. Operators retrieve validated process presets rapidly. This action shortens equipment setup cycles and improves overall workshop productivity.
The reinforced sealed cabinet pairs with anti-corrosion water circulation pipelines. This complete assembly provides strong dust-proof, moisture-proof and anti-corrosion capabilities. Accordingly, it works steadily amid the humid, corrosive atmosphere common inside electroplating workshops. Moreover, three-phase AC input remains reliable and the whole structure uses rugged mechanical construction. The rectifier records low failure rates and long service life to fully meet uninterrupted mass-production demands.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Rated Output | Rated Current | 1500A |
| Rated Output | Rated Voltage | 0‑12V |
| Working Mode | Operation Type | Constant Current / Constant Voltage, Low Ripple DC |
| Cooling System | Cooling Method | Water‑Cooled |
| Input Power | Input Voltage | Three‑phase AC Customized |
| Communication Interface | Data Port | RS485 |
| Safety Protection | Protection Functions | Over‑current, Over‑voltage, Over‑temperature, Short‑circuit, Surge Protection |
| Applicable Scenarios | Main Applications | Rack electroplating, barrel electroplating, heavy-duty electrolysis, metal surface finishing |
Further, we back this rectifier with a 1-year warranty and design it for over 10 years of service life. It supports constant-current and constant-voltage modes. Programmable current and voltage ramp-up also comes standard to suit different electroplating startup workflows. Notably, multi-segment parameter settings enable flexible process configuration. Its built-in RS485 port allows staff to view live data and connect with other workshop equipment. We supply optional custom function upgrades. These options satisfy special high-current electroplating process requirements. Reach out to us for tailored custom solutions.
The 1500A 12V Water-cooled Synchronous Rectifier serves electroplating manufacturers, metal finishing plants and industrial electrolysis workshops. Operators deploy it for large-scale rack plating and barrel plating on steel, copper and alloy workpieces. It also supports trial testing for newly developed electroplating bath formulations.
Moreover, the unit runs reliably through long-duration batch cycles and round-the-clock production runs. Its low-loss DC output improves coating uniformity and stabilizes electrolyte bath conditions. For instance, it minimizes coating defects such as pitting and uneven thickness, and as a result raises finished-part yield rates.
We develop custom power-supply solutions for heavy-duty high-current electroplating scenarios. In contrast to traditional diode rectifiers, the 1500A 12V Water-cooled Synchronous Rectifier receives specialized tuning for low conduction loss and continuous water-cooled batch production conditions. It delivers excellent operational stability for humid electroplating workshop environments.
Our technicians complete stability simulation testing and full-load ageing checks for every unit before shipment. This step guarantees dependable real-world performance during continuous electroplating production. We accept non-standard parameter adjustments and custom-feature development. Professional process setup guidance and complete after-sales support also come with every purchase. In short, we deliver trustworthy power hardware for your mass-production and pilot-scale metal finishing projects.
Learn more about related products：600A 12V Air-Cooled Rectifier for Alkaline Copper Plating
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
