Diamond Pulse Rectifier Introduction

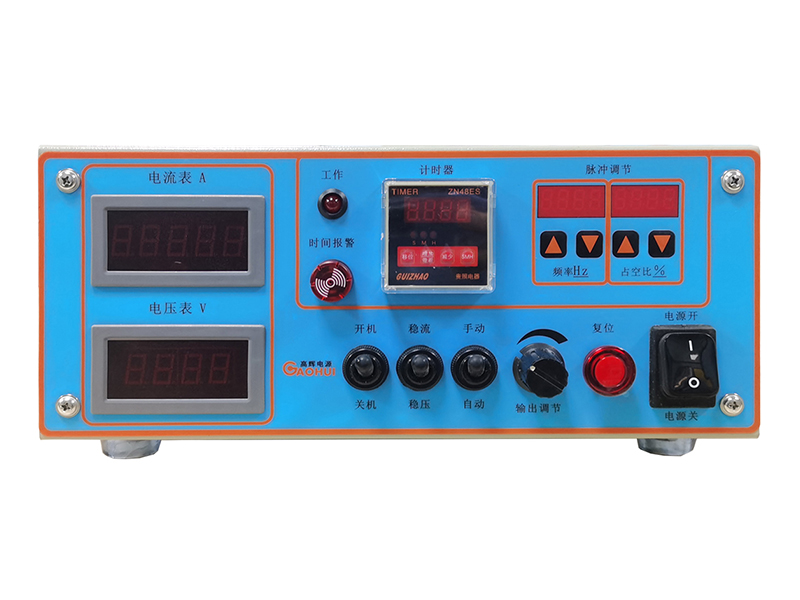

The 10A 12V diamond pulse rectifier is a specialized power supply designed for manufacturing electrodeposited diamond tools. This diamond pulse rectifier generates unique pulse profiles that maximize the codeposition and retention of diamond particles within a nickel or cobalt matrix. It is the critical component for producing high-performance cutting, grinding, and drilling tools.

Product Parameters

Input Power Single-Phase 220VAC, 50/60Hz
DC Output 0-12V / 0-10A Adjustable
Pulse Mode Diamond-Optimized Asymmetric Pulse
Peak Current Up to 20A (Pulse)
Pulse Frequency 1 Hz - 5 kHz
Cooling Air Cooling
Protections Short Circuit, Overload, Reversal Protection

Key Features of the Diamond Pulse Rectifier

• Diamond-Specific Waveform: This diamond pulse rectifier produces an asymmetric pulse with a high peak current and a controlled off-time. This design actively pulls diamond particles to the cathode and secures them firmly.
• Enhanced Particle Codeposition: The specialized waveform increases the volume percentage of diamond in the composite coating. Consequently, tool life and cutting efficiency are significantly improved.
• Matrix Density Control: Precise control over pulse parameters allows optimization of the metal matrix density. Therefore, it firmly grips the diamonds without excessive overplating.
• Process Repeatability: The system stores recipes for different mesh sizes (e.g., 30/40, 50/60). This ensures consistent results batch after batch.
• Robust Industrial Design: Built for the harsh environment of tool manufacturing shops, this diamond rectifier offers reliable, continuous operation.

Applications & Advantages

This 10A 12V diamond pulse rectifier is essential for the superhard tool industry. First, it produces diamond saw blades for cutting stone, concrete, and asphalt. Second, it manufactures diamond grinding wheels and cup wheels for precision machining. Third, it is used for electroplated diamond core drills and hole saws. Finally, it creates specialized wear-resistant coatings.

The diamond pulse rectifier delivers critical production advantages. Primarily, it creates tools with a higher and more uniform diamond concentration. Additionally, tools made with pulse plating demonstrate less diamond pull-out during use. Furthermore, the process allows for the use of higher-quality, more expensive diamond grit with less waste. Ultimately, it enables the production of premium tools that command a higher market value.
