10000A 36V Chrome Plating Product Introduction

This 10000A 36V Chrome Plating Rectifier is a high-power DC power supply designed for large-scale industrial chrome plating applications. It uses an N+1 redundant system to maintain stable performance under long-term full-load operation. First, it effectively avoids unexpected shutdowns and ensures continuous production. Meanwhile, the modular structure improves heat dissipation and overall equipment reliability. In addition, customization is our core service; we adjust parameters, control logic, and interfaces to match different process needs and site conditions.

10000A 36V Chrome Plating Core Selling Points

• 10000A high-current output supports large-scale and efficient chrome plating production.
• N+1 redundant system ensures uninterrupted operation and high production stability.
• Precise output control ensures uniform coating and consistent plating quality.
• IGBT high-frequency design delivers high efficiency and low energy consumption.
• Fully customizable specifications for special production lines and working conditions.

10000A 36V Chrome Plating Product Advantages

In terms of reliability, the 10000A 36V Chrome Plating Rectifier adopts modular N+1 redundancy so that a single module fault will not affect overall operation. Furthermore, the optimized circuit design reduces heat generation and extends service life. Besides, the unit provides accurate constant current and voltage control to ensure stable product quality in each batch. Moreover, complete protection functions prevent failures caused by overcurrent, overvoltage, phase loss, and overheating. Above all, we provide full customization for each unit, including control mode, communication protocol, and cabinet size, to fit different automated production systems.

Technical Parameters

Parameter	Specification
Model	Customized according to customer requirements
Circuit Mode	IGBT / PWM
Input Voltage	Single-phase AC220V / Three-phase AC380V (please consult customer service and leave a note when placing an order)
Frequency	50Hz / 60Hz (others customizable)
Output Voltage	Adjustable from 0 to max. specified value (customizable up to 10,000V)
Output Current	Adjustable from 0 to max. specified value (customizable up to 100,000A)
Output Accuracy	Current regulation accuracy ≤1% / Voltage regulation accuracy ≤1%
Output Display	Digital voltage and current meter display (display and control unit separated from main unit)
Adjustment Range	Current: 0–rated value; Voltage: 0–rated value
Efficiency	Overall efficiency ≥92%
Output Interface	RS485 communication or 4-20mA analog function interface (requires customization)
Insulation Resistance	Input–Output: ≥5MΩ Input–Enclosure: ≥5MΩ Output–Enclosure: ≥5MΩ
Dielectric Strength	Input–Output: AC1500V, 10mA, 1 minute Input–Enclosure: AC1000V, 10mA, 1 minute
Operating Environment	-15°C to +40°C
Protection Rating	IP20
Cooling System	Water-cooled / Air-cooled (requires consultation for customization)
Storage Temperature	-20°C to +50°C
Operating Condition	Suitable for full-load continuous operation
Protection Modes	Phase loss, over-temperature, over-current, short circuit, under-voltage, over-voltage protection

Hard Chrome Model Selection

Custom models available. Input Voltage: 380V

Hard Chrome Plating Rectifier Model Selection (Any Model Customizable)
Air-Cooled
Model	Output Current (A)	Output Voltage (V)	Input Voltage (V)	Weight (KG)	W×L×H (mm)
YG500	500	12/15/18	380	50	510×580×230
YG800	800	12/15/18	380	70	510×580×690
YG1000	1000	12/15/18	380	70	510×580×690
YG1500	1500	12/15/18	380	80	510×580×690
YG2000	2000	12/15/18	380	105	510×580×920
YG3000	3000	12/15/18	380	130	510×580×920
YG4000	4000	12/15/18	380	160	510×580×1160
YG5000	5000	12/15/18	380	200	510×580×1620
YG6000	6000	12/15/18	380	215	510×580×1620
YG8000	8000	12/15/18	380	450	700×900×1780
YG12000	12000	12/15/18	380	560	570×830×2010
Water-Cooled
Model	Output Current (A)	Output Voltage (V)	Input Voltage (V)	Weight (KG)	W×L×H (mm)
YG1000	1000	12/15/18	380	65	480×730×270
YG2000	2000	12/15/18	380	100	660×1320×370
YG3000	3000	12/15/18	380	110	660×1320×370
YG4000	4000	12/15/18	380	120	660×1320×370
YG5000	5000	12/15/18	380	150	500×640×1130
YG6000	6000	12/15/18	380	165	500×670×1450
YG8000	8000	12/15/18	380	290	500×670×1450
YG10000	10000	12/15/18	380	320	600×800×1750
YG12000	12000	12/15/18	380	330	600×800×1750
YG15000	15000	12/15/18	380	450	800×1350×1620
YG18000	18000	12/15/18	380	800	860×1480×1850
YG20000	20000	12/15/18	380	900	860×1480×1850
YG30000	30000	12/15/18	380	1000	860×1480×1850
YG40000	40000	15/18	380	1450	860×1480×1850
YG50000	50000	15/18	380	1700	860×1480×1850
YG60000	60000	15/18	380	2100	860×1480×1850
YG80000	80000	18	380	2600	860×1480×1850

Item	Details
Function Selection	Single timer, Dual timer, Triple timer, Multi‑segment timer, Automatic reverse polarity
Control Mode	Equipped with remote control box, RS485

Power（W） = Output Voltage（V） × Output Current（A）

The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.

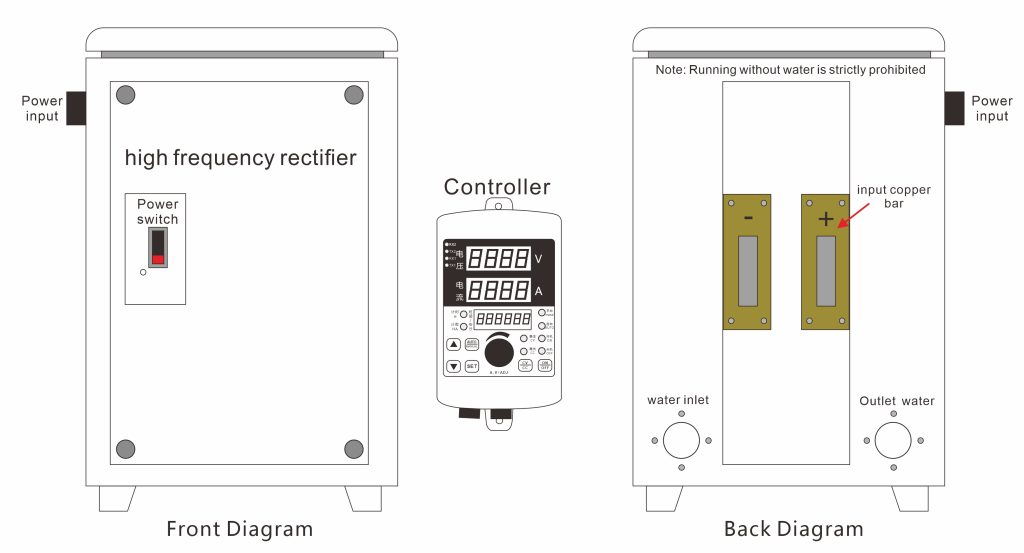

Schematic Diagram of the Water-Cooled Rectifier Enclosure

1. Front Diagram (Rectifier Unit)

• Power input: Main AC power connection for the rectifier.
• high frequency rectifier: The main power supply unit, which converts AC to regulated DC power for processes like plating.
• Power switch: Main on/off control for the rectifier.
• Controller: The remote control unit, used to set and monitor voltage, current, and process parameters.

2. Back Diagram (Rectifier Unit)

• Power input: Same main AC power connection (shown on the rear view).
• Note: Running without water is strictly prohibited: Safety warning, as this is a water-cooled unit.
• water inlet: Connection for cooling water supply.
• Outlet water: Connection for cooling water return.
• input copper bar: Positive (+) and negative (-) DC output terminals, used to connect the rectifier to the plating bath load.

10000A 36V Chrome Plating Scope of Application

This 10000A 36V Chrome Plating Rectifier is widely used in industrial chrome plating for hydraulic cylinders, shafts, molds, automotive parts, and heavy machinery components. Additionally, it is suitable for electroplating lines, electrolysis, and surface treatment systems requiring high-current and high-reliability DC power. It adapts to 24-hour continuous production lines, automated workshops, and custom processing systems. Furthermore, it runs stably in harsh industrial environments with high corrosion and humidity. Since we support deep customization, the rectifier integrates smoothly with different production layouts.

Why Choose Our 10000A 36V Chrome Plating Solution

We have extensive experience in developing and manufacturing high-power rectifiers for industrial plating and surface treatment. Our products meet strict quality standards and pass full-load testing before delivery. Besides standard models, we provide customized 10000A 36V Chrome Plating solutions with flexible redundancy and control designs. We also offer professional technical support, on-site commissioning, and responsive after-sales service to reduce downtime. With flexible production and short delivery cycles, we supply both standard and customized units efficiently. Overall, we combine high reliability, advanced design, and strong customization to provide ideal power solutions for modern chrome plating production.
