System Output: 0-15V DC / 0-10000A
Unit Configuration: 2 x 5000A Units (N+1 Parallel Redundancy)
Power: 150kW System Total
Application: Continuous High-Volume Hard Chrome Plating
Best For: Hydraulic Cylinder Manufacturing, Industrial Roll Rebuilding, Aerospace Components, 24/7 Production Lines
This 10000A 15V Hard Chrome rectifier is a professional high-power DC power supply built for large-scale industrial hard chrome plating. It adopts an N+1 redundant water-cooled system to maintain reliable performance under long hours of full-load operation. First, it solves common issues such as unstable output, overheating, and unexpected shutdowns in high-current plating scenarios. Meanwhile, the water-cooled structure improves heat dissipation and extends equipment service life. In addition, customization is our core service; we adjust module combinations, control logic, and interfaces to match different production lines and process requirements.
In terms of reliability, the 10000A 15V Hard Chrome rectifier uses modular N+1 redundancy so that a single module fault will not stop the whole system. Furthermore, the closed-loop water cooling system supports stable running even in high-temperature industrial environments. Besides, the IGBT high-frequency design improves energy efficiency and lowers long-term operating costs. Moreover, complete protection functions prevent damage from overcurrent, overvoltage, water shortage, or phase loss. Above all, we provide full customization for every unit, including cooling structure, control protocol, and cabinet size, to fit different automated production systems.
| Parameter | Specification |
|---|---|
| Model | Customized according to customer requirements |
| Circuit Mode | IGBT / PWM |
| Input Voltage | Single-phase AC220V / Three-phase AC380V (please consult customer service and leave a note when placing an order) |
| Frequency | 50Hz / 60Hz (others customizable) |
| Output Voltage | Adjustable from 0 to max. specified value (customizable up to 10,000V) |
| Output Current | Adjustable from 0 to max. specified value (customizable up to 100,000A) |
| Output Accuracy | Current regulation accuracy ≤1% / Voltage regulation accuracy ≤1% |
| Output Display | Digital voltage and current meter display (display and control unit separated from main unit) |
| Adjustment Range | Current: 0–rated value; Voltage: 0–rated value |
| Efficiency | Overall efficiency ≥92% |
| Output Interface | RS485 communication or 4-20mA analog function interface (requires customization) |
| Insulation Resistance | Input–Output: ≥5MΩ Input–Enclosure: ≥5MΩ Output–Enclosure: ≥5MΩ |
| Dielectric Strength | Input–Output: AC1500V, 10mA, 1 minute Input–Enclosure: AC1000V, 10mA, 1 minute |
| Operating Environment | -15°C to +40°C |
| Protection Rating | IP20 |
| Cooling System | Water-cooled / Air-cooled (requires consultation for customization) |
| Storage Temperature | -20°C to +50°C |
| Operating Condition | Suitable for full-load continuous operation |
| Protection Modes | Phase loss, over-temperature, over-current, short circuit, under-voltage, over-voltage protection |
Custom models available. Input Voltage: 380V
| Hard Chrome Plating Rectifier Model Selection (Any Model Customizable) | |||||
| Air-Cooled | |||||
| Model | Output Current (A) | Output Voltage (V) | Input Voltage (V) | Weight (KG) | W×L×H (mm) |
| YG500 | 500 | 12/15/18 | 380 | 50 | 510×580×230 |
| YG800 | 800 | 12/15/18 | 380 | 70 | 510×580×690 |
| YG1000 | 1000 | 12/15/18 | 380 | 70 | 510×580×690 |
| YG1500 | 1500 | 12/15/18 | 380 | 80 | 510×580×690 |
| YG2000 | 2000 | 12/15/18 | 380 | 105 | 510×580×920 |
| YG3000 | 3000 | 12/15/18 | 380 | 130 | 510×580×920 |
| YG4000 | 4000 | 12/15/18 | 380 | 160 | 510×580×1160 |
| YG5000 | 5000 | 12/15/18 | 380 | 200 | 510×580×1620 |
| YG6000 | 6000 | 12/15/18 | 380 | 215 | 510×580×1620 |
| YG8000 | 8000 | 12/15/18 | 380 | 450 | 700×900×1780 |
| YG12000 | 12000 | 12/15/18 | 380 | 560 | 570×830×2010 |
| Water-Cooled | |||||
| Model | Output Current (A) | Output Voltage (V) | Input Voltage (V) | Weight (KG) | W×L×H (mm) |
| YG1000 | 1000 | 12/15/18 | 380 | 65 | 480×730×270 |
| YG2000 | 2000 | 12/15/18 | 380 | 100 | 660×1320×370 |
| YG3000 | 3000 | 12/15/18 | 380 | 110 | 660×1320×370 |
| YG4000 | 4000 | 12/15/18 | 380 | 120 | 660×1320×370 |
| YG5000 | 5000 | 12/15/18 | 380 | 150 | 500×640×1130 |
| YG6000 | 6000 | 12/15/18 | 380 | 165 | 500×670×1450 |
| YG8000 | 8000 | 12/15/18 | 380 | 290 | 500×670×1450 |
| YG10000 | 10000 | 12/15/18 | 380 | 320 | 600×800×1750 |
| YG12000 | 12000 | 12/15/18 | 380 | 330 | 600×800×1750 |
| YG15000 | 15000 | 12/15/18 | 380 | 450 | 800×1350×1620 |
| YG18000 | 18000 | 12/15/18 | 380 | 800 | 860×1480×1850 |
| YG20000 | 20000 | 12/15/18 | 380 | 900 | 860×1480×1850 |
| YG30000 | 30000 | 12/15/18 | 380 | 1000 | 860×1480×1850 |
| YG40000 | 40000 | 15/18 | 380 | 1450 | 860×1480×1850 |
| YG50000 | 50000 | 15/18 | 380 | 1700 | 860×1480×1850 |
| YG60000 | 60000 | 15/18 | 380 | 2100 | 860×1480×1850 |
| YG80000 | 80000 | 18 | 380 | 2600 | 860×1480×1850 |
| Item | Details |
| Function Selection | Single timer, Dual timer, Triple timer, Multi‑segment timer, Automatic reverse polarity |
| Control Mode | Equipped with remote control box, RS485 |
Power（W） = Output Voltage（V） × Output Current（A）
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.

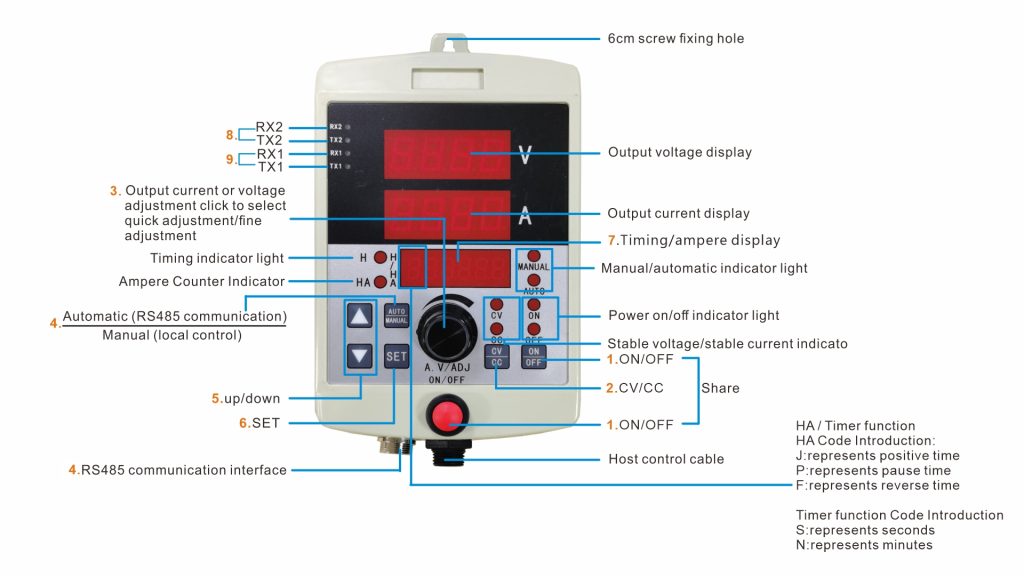

1. 6cm screw fixing hole
Mounting hole for securing the control panel.
2. Output voltage display
Shows real-time output voltage (unit: V).
3. Output current display
Shows real-time output current (unit: A).
4. Timing/ampere display
Shows timer count or cumulative ampere-minute value for process control.
5. Manual/automatic indicator light
Indicates whether the unit is in manual (local) or automatic (remote/RS485) control mode.
6. Power on/off indicator light
Shows the power supply’s on/off status.
7. Stable voltage/stable current indicator
Indicates operation in constant voltage (CV) or constant current (CC) mode.
8. ON/OFF button
Controls power output start/stop.
9. CV/CC button
Switches between constant voltage (CV) and constant current (CC) operating modes.
10. Output current or voltage adjustment knob
Adjusts output voltage/current; click to switch between quick and fine adjustment modes.
11. Automatic/Manual button
Toggles control mode between automatic (RS485 communication) and manual (local control).
12. Up/down buttons
Adjust values or navigate menu options.
13. SET button
Enters parameter settings (timing, ampere-counter, communication, etc.).
14. RX2/TX2
Secondary RS485 communication port (receive/transmit).
15. RX1/TX1
Primary RS485 communication port (receive/transmit).
16. RS485 communication interface
Wiring port for the RS485 communication bus.
17. Host control cable
Connection port for linking to the main power supply unit.
18. Timing indicator light
Lights when the timer function is active.
19. Ampere Counter Indicator
Lights when the cumulative ampere-minute function is active.
This 10000A 15V Hard Chrome rectifier is widely used in industrial hard chrome plating for hydraulic cylinders, transmission shafts, molds, automotive parts, and heavy machinery components. Additionally, it applies to electroplating lines, electrolysis processes, and surface treatment systems that require high-current and high-reliability DC power. It fits continuous 24-hour production lines, automated workshops, and custom processing systems. Furthermore, it runs stably in harsh environments with high corrosion and humidity. Since we support deep customization, the rectifier can integrate smoothly with different production layouts.
We have rich experience in developing and manufacturing high-power rectifiers for industrial plating and surface treatment. Our products comply with strict quality standards and pass full-load testing before delivery. Besides standard models, we provide customized 10000A 15V Hard Chrome solutions with flexible redundancy, cooling, and control designs. We also offer professional technical support, on-site commissioning, and timely after-sales service to minimize production downtime. With flexible production and short delivery cycles, we supply both standard and customized units efficiently. Overall, we combine high reliability, advanced design, and strong customization to deliver ideal power solutions for modern hard chrome plating.
Learn more about related products:Commutating Chrome Plating Rectifier
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
